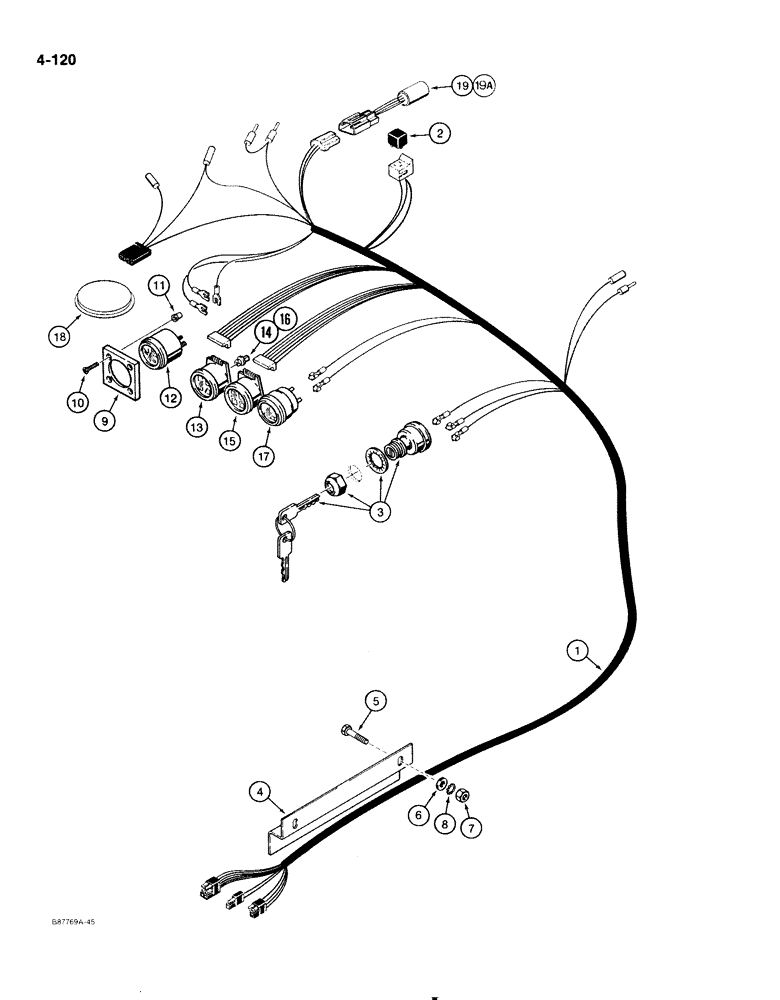

Запчасти Case 1818 (4-120) - FRONT HARNESS AND GAUGES, DIESEL MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

D136027

HARNESS

front

1шт.

2

D128310

RELAY

30 amperes

1шт.

Ref. 2 - P/N D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

3

K203992

IGNITION SWITCH

SWITCH ignition, includes two keys, Includes: Ref. 3A

1шт.

3a

K962338

KEY

KEY ignition switch, set, not shown

1шт.

4

D136931

ANGLE

COVER front harness

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

6

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

2шт.

8

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

D121637

COVER

warning lamps and gauges

4шт.

10

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6 - 32 NC x 7/8"

16шт.

11

D121600

ISOLATOR

cover mounting screw

16шт.

12

D121645

FUEL GAUGE

GAUGE fuel

1шт.

13

D136661

BRACKET

GAUGE warning light, hydraulic and air filter, engine oil pressure, and voltage indicator, Includes: Ref. 14

1шт.

14

N8320

BULB

gauge

4шт.

15

D136662

BRACKET

GAUGE warning light, engine and hydraulic oil temperature, and glow plug, Includes: Ref. 16

1шт.

16

N8320

BULB

gauge

4шт.

17

D121644

GAUGE

HOURMETER engine

1шт.

18

D93716

PLUG,73.mm ID x 88.9mm OD

3" (76 mm) diameter, plastic

2шт.

19

D137049

ELECTRICAL GAUGE

INDICATOR voltage, Serial Range: -17757377

1шт.

19a

E20252

ELECTRICAL GAUGE

INDICATOR voltage, Start Serial: 17757377

1шт.
