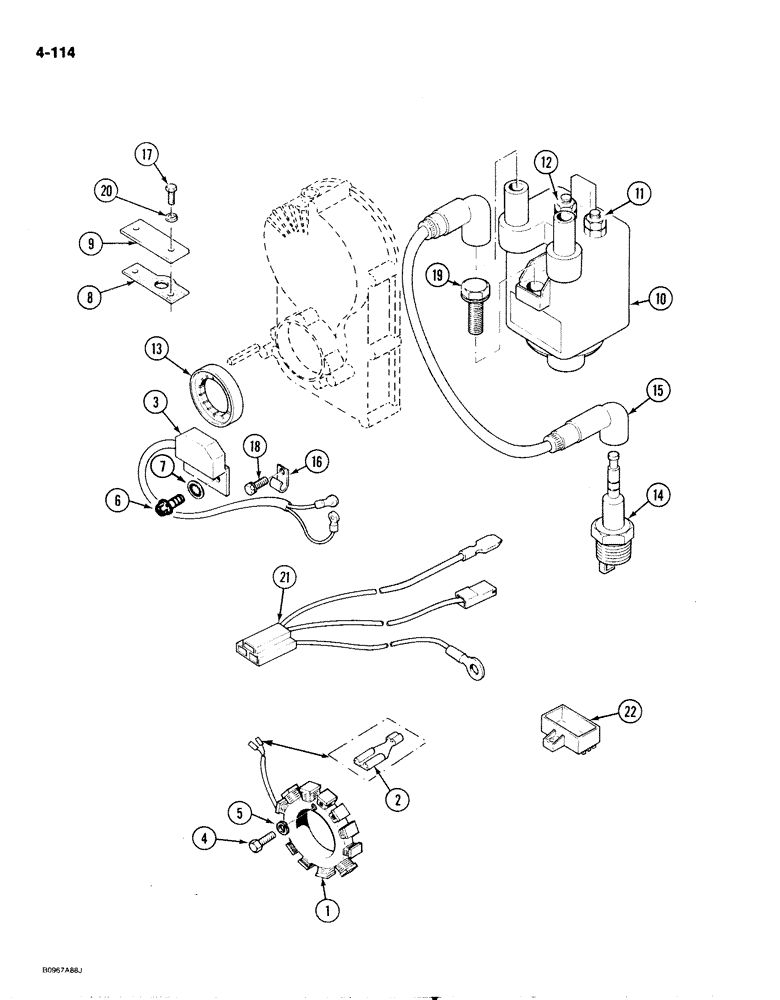

Запчасти Case 1818 (4-114) - IGNITION SYSTEM, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

N7428

STATOR

ignition

1шт.

2

1959056C1

TERMINAL CONNECTOR,16 - 14

TERMINAL stator leads

2шт.

3

1959057C1

INDICATOR

CONTROL ignition

1шт.

4

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

machine, hex head, self locking, No. 10 - 32 NF x 1

3шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

6

1959058C1

CAPTIVE WASHER SCREW

SCREW hex washer head, No. 10 - 32 NF x 3/8", special

2шт.

7

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

8

N9607

GASKET

breaker box

1шт.

9

1959059C1

PLATE

ignition plunger cover

1шт.

10

1959060C1

COIL

battery ignition, Includes: Ref. 11-12

1шт.

11

1959061C1

NUT

M4, hex flange, positive terminal

1шт.

12

1959062C1

NUT

M5, hex flange, negative terminal

1шт.

13

1959063C1

ROTOR

ignition

1шт.

14

RS14YC

PLUG

spark

2шт.

15

1959064C1

CABLE

spark plug, 9" long

1шт.

15

1959065C1

CABLE

spark plug, 18" long

1шт.

16

1959066C1

CLIP

CLAMP wire

2шт.

17

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

18

1959067C1

CAPTIVE WASHER SCREW

SCREW hex washer head, 1/4" - 20 NC x 3/8", special

1шт.

19

1959068C1

CAPSCREW,Hex, 1/4" - 20 x 1"

SCREW hex washer head, 1/4" - 20 NC x 1", special

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

1959069C1

HARNESS

wiring, interface

1шт.

22

N7431

REGULATOR

voltage, electrical

1шт.

H438271

CAPACITOR

CONDENDER, at coil

1шт.
