(3-100) - CARBURETOR, GASOLINE MODELS

Запчасти Case 1818 (3-100) - CARBURETOR, GASOLINE MODELS (03) - FUEL SYSTEM

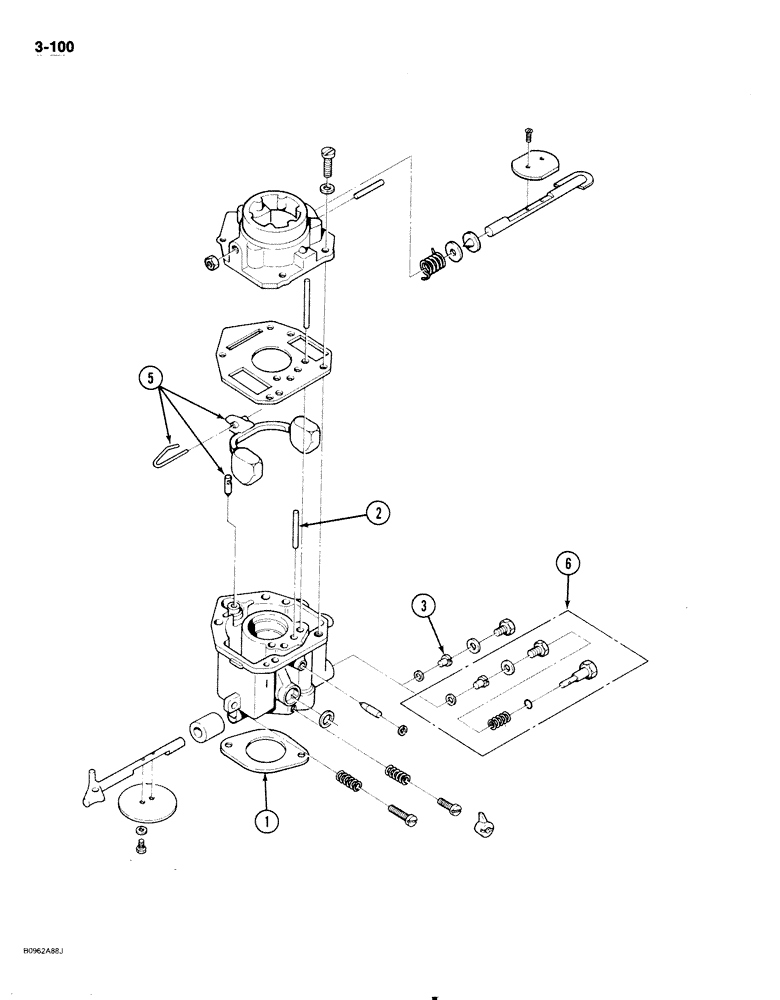

Схема запчастей Case 1818 - (3-100) - CARBURETOR, GASOLINE MODELS (03) - FUEL SYSTEM
5
2
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1959070C1

CARBURETOR

ASSEMBLY engine, Includes: Ref. 1-3

1шт.

1

N7463

GASKET

carburetor, Serial Range: mounting-adapter

2шт.

2

1959072C1

JET

idle

1шт.

3

1959073C1

JET

power

1шт.

4

1959075C1

PACKAGE, REPAIR

KIT carburetor repair

1шт.

5

1959074C1

ELBOW UNION

KIT float package, carburetor

1шт.

6

1959076C1

JET

KIT variable jet, carburetor

1шт.
