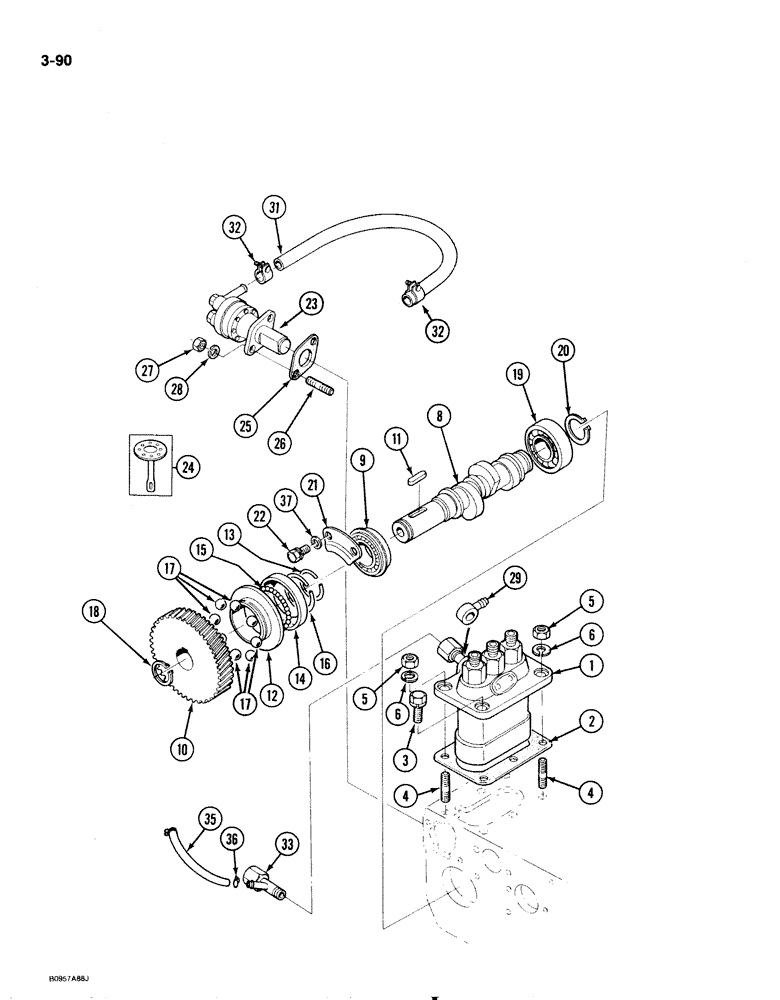

Запчасти Case 1818 (3-090) - INJECTION PUMP DRIVE, DIESEL MODELS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1959448C1
PUMP
ASSEMBLY injection, parts list Figure 3-94
1шт.
1959450C1
SHIM
ASSEMBLY injection pump, Includes: Ref. 2
1шт.
2
1959451C1
SHIM
injection pump
2шт.
2
1959452C1
SHIM
injection pump
3шт.
3
1959456C1
BOLT
injection pump mounting
2шт.
4
1959457C1
STUD
injection pump mounting, M8 x 33 mm
2шт.
6
1959171C1
SPRING WASHER
lock, injection pump mounting
2шт.
1959458C1
CAMSHAFT
ASSEMBLY fuel pump drive, Includes: Ref. 8-18
1шт.
8
1959459C1
CAMSHAFT
fuel pump drive
1шт.
9
1959460C1
BALL BEARING
BEARING ball
1шт.
10
1959461C1
GEAR
injection pump
1шт.
11
1959462C1
KEY
camshaft
1шт.
12
1959463C1
SLEEVE
governor
1шт.
13
1959464C1
RING, SNAP
RING retaining, governor sleeve
1шт.
14
1959465C1
CASE
governor ball
1шт.
15
1959466C1
BALL
governor
30шт.
16
1959467C1
RING, SNAP
RING retaining, governor ball case
1шт.
17
1959468C1
BALL
governor
8шт.
18
1959308C1
RING, SNAP
RING snap gear retaining
1шт.
19
1959473C1
BALL BEARING
BEARING ball
1шт.
20
1959474C1
RING, SNAP
RING snap, bearing retaining
1шт.
21
1959475C1
PLATE
fuel camshaft stop
1шт.
22
1959476C1
BOLT
stop plate
2шт.
23
1959478C1
PUMP
ASSEMBLY fuel, Includes: Ref. 24
1шт.
24
1959479C1
DIAPHRAGM
fuel pump
1шт.
25
1959480C1
GASKET
fuel pump
1шт.
26
1959481C1
STUD
fuel pump mounting
2шт.
27
1959205C1
NUT
cover stud, M6
2шт.
28
1959206C1
SPRING WASHER
lock, mounting stud
4шт.
29
1959482C1
FITTING
barb, special
1шт.
30
1959484C1
PIPE,8 mm ID, 13 mm OD, 190 mm Length
ASSEMBLY fuel, Includes: Ref. 31-32
1шт.
31
NSS
NOT SOLD SEPARAT
PIPE fuel
1шт.
32
1959486C1
CLIP
CLAMP pipe
2шт.
33
1959487C1
HEATED GLASS
VALVE jet start
1шт.
1959488C1
PIPE
ASSEMBLY jet start, Includes: Ref. 35-36
1шт.
35
NSS
NOT SOLD SEPARAT
PIPE jet start
1шт.
36
1959490C1
CLAMP
pipe
2шт.
37
1959206C1
SPRING WASHER
stop plate bolt
2шт.
Выбрано товаров: 39
