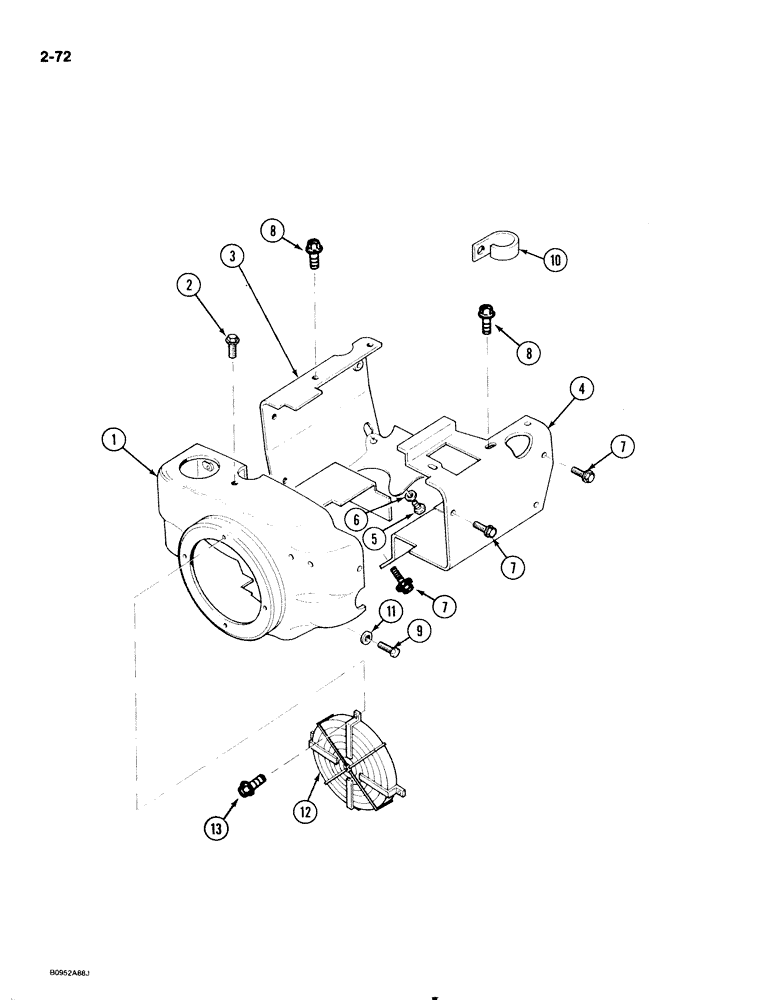

Запчасти Case 1818 (2-072) - BLOWER HOUSING, GASOLINE MODELS (02) - ENGINE

1

1959088C1

HOUSING

blower

1шт.

No plug is available for the hole in the top of P/N 1959088C1

1шт.

2

74261C1

SCREW,Hex, 1/4" - 20 x 0.50"

hex flange head, 1/4" - 20 NC x 1/2"

1шт.

3

1959089C1

HOOD

HOUSING cylinder air, left hand

1шт.

4

1959090C1

HOOD

HOUSING cylinder air, right hand

1шт.

5

187-1147

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

SCREW self tapping, 1/4" - 20 NC x 5/8"

2шт.

6

195-102

WASHER,1/4"

flat, , plated 1/4"

2шт.

7

1959091C1

BOLT,Hex, 1/4" - 20 x 5/16"

SCREW, 1/4" - 20 NC x 5/16" hex locking washer head cap

1шт.

8

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

9

187-1147

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

SCREW self tapping, 1/4" - 20 NC x 5/8"

2шт.

10

1959092C1

CLAMP

wire, alternator leads, use existing hardware

1шт.

11

195-517

WASHER,1/4"

flat, 17/64", plated

4шт.

12

1959093C1

PROTECTOR

GUARD flywheel

1шт.

13

74263C1

BOLT,Hex Locking Washer Hd 1/4" - 20 x 3/8"

SCREW, 1/4" - 20 NC x 3/8" hex locking washer head cap

4шт.
