(2-070) - EXHAUST SYSTEM, GASOLINE MODELS

Запчасти Case 1818 (2-070) - EXHAUST SYSTEM, GASOLINE MODELS (02) - ENGINE

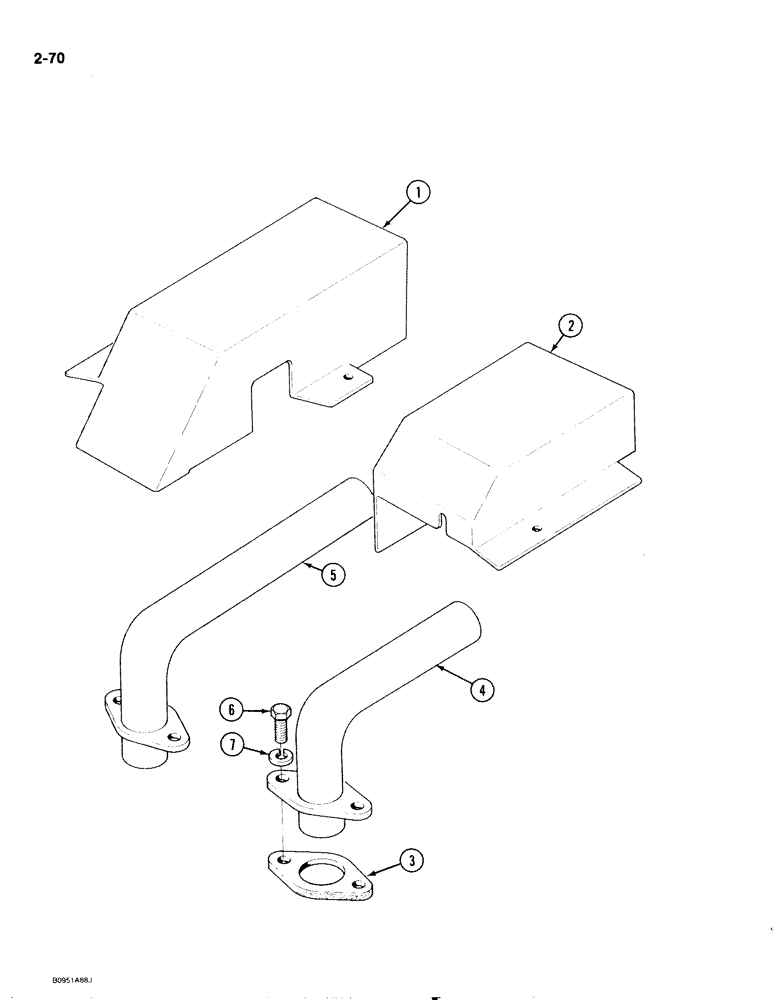

Схема запчастей Case 1818 - (2-070) - EXHAUST SYSTEM, GASOLINE MODELS (02) - ENGINE
2
7
1
6
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1959107C1

COVER

exhaust tube, left hand

1шт.

2

1959108C1

COVER

exhaust tube, right hand

1шт.

3

77079C1

MANIFOLD GASKET

exhaust manifold

2шт.

4

1959109C1

TUBE

exhaust, right hand

1шт.

5

1959110C1

TUBE

exhaust, left hand

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
