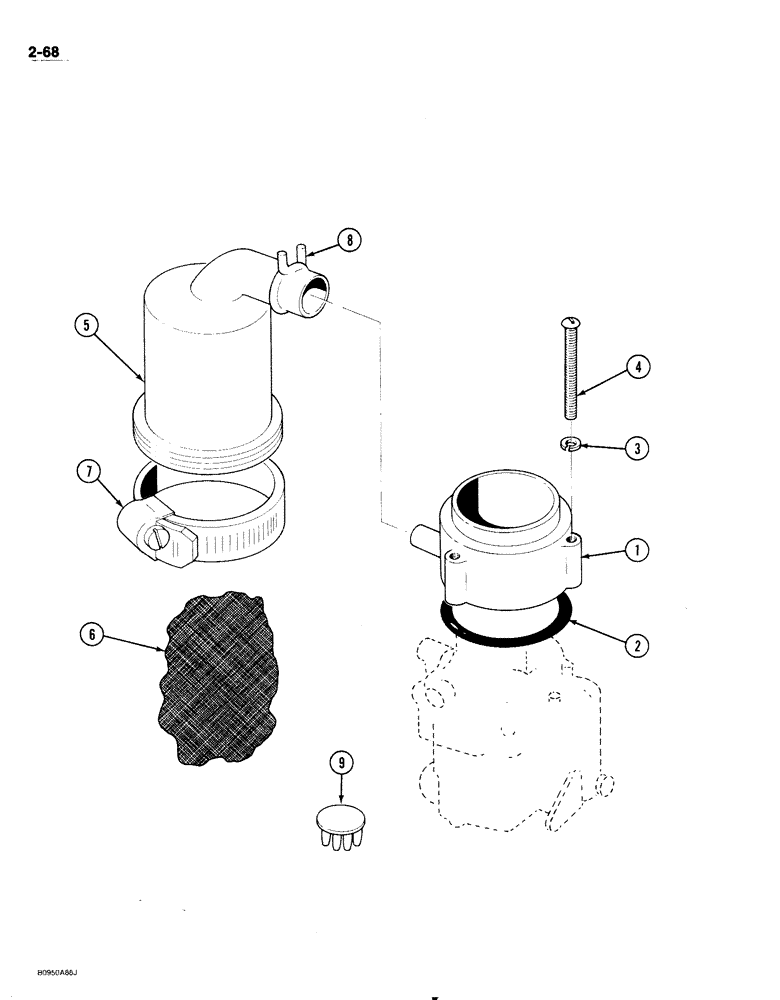

Запчасти Case 1818 (2-068) - REMOTE AIR CLEANER AND ADAPTER, GASOLINE MODELS (02) - ENGINE

1

N7445

RING

ADAPTER air cleaner, Serial Range: hose-carburetor

1шт.

2

N7444

O-RING

SEAL adapter

1шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

4

174-216

SCREW,Sl Rnd Hd, #10 - 32 x 1 1/8"

machine, round head

3шт.

5

N7447

TUBE,2.12" L

breather

1шт.

6

N7448

TUBE,1" DIA x 4" L

FILTER breather tube

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP breather tube base

1шт.

8

N7446

CLAMP

breather, Serial Range: tube-adapter

1шт.

9

1959082C1

PLUG

dot button, blower housing air hole

1шт.
