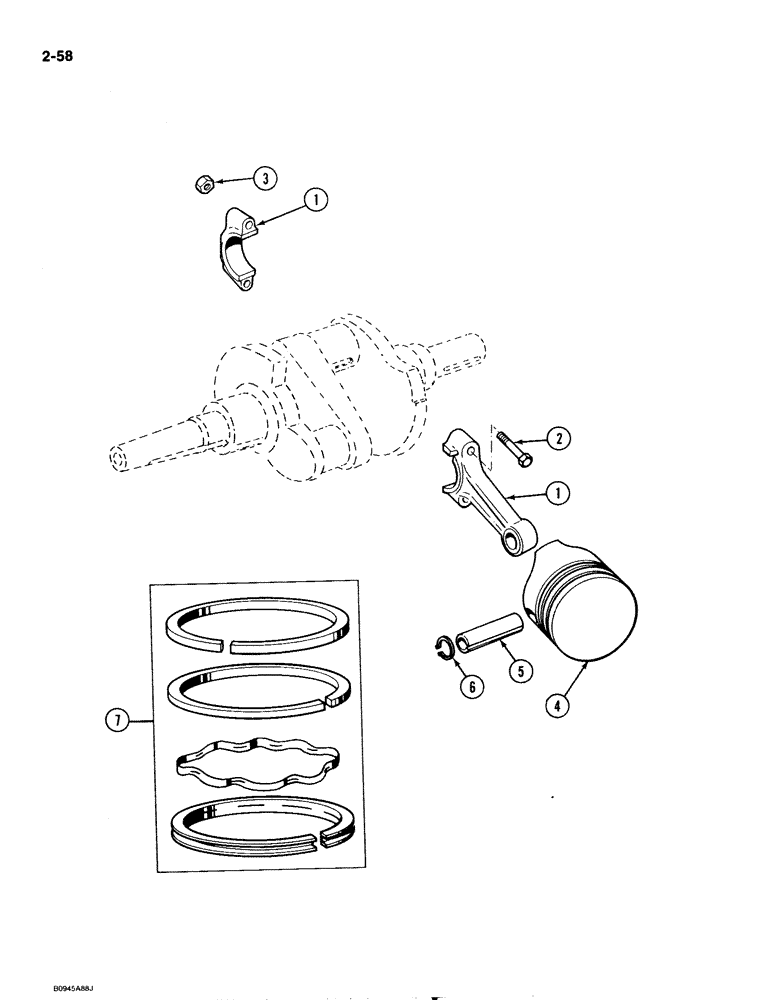

Запчасти Case 1818 (2-058) - PISTON AND CONNECTING ROD, GASOLINE MODELS (02) - ENGINE

77072C91

ROD, CONNECTING

ROD ASSEMBLY connecting standard

2шт.

77073C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .010 inch undersize

2шт.

77074C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .020 inch undersize

2шт.

77075C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .030 inch undersize, Includes: Ref. 1-3

2шт.

1

NSS

NOT SOLD SEPARAT

ROD order correct rod assembly above

1шт.

2

1959021C1

CAPSCREW,1.88" L

BOLT connecting rod, special

4шт.

3

1959022C1

NUT

hex, crown lock, 5/16"

4шт.

N9634

PISTON ASSY.

PISTON ASSEMBLY standard size

2шт.

N9635

PISTON ASSY.

PISTON ASSEMBLY, .005" (0.13 mm) oversize

2шт.

N9650

PISTON ASSY.

PISTON ASSEMBLY, .010" (0.26 mm) oversize

2шт.

N9651

PISTON ASSY.

PISTON ASSEMBLY, .020" (0.50 mm) oversize

2шт.

N9652

PISTON ASSY.

PISTON ASSEMBLY, .030" (0.76 mm) oversize

2шт.

N9653

PISTON ASSY.

PISTON ASSEMBLY, .040" (1.02 mm) oversize, Includes: Ref. 4-7

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON, order correct assembly above

1шт.

5

N9555

PISTON PIN

2шт.

6

N9556

RING, SNAP

RING piston pin retaining

4шт.

7

N9636

PISTON RING SET

RING piston, set, standard size

2шт.

7

N9637

PISTON RING SET

RING piston, set, .005" (0.13 mm) oversize

2шт.

7

N9638

PISTON RING SET

RING piston, set, .010" (0.26 mm) oversize

2шт.

7

N9639

PISTON RING SET

RING piston, set, .020" (0.50 mm) oversize

2шт.

7

N9640

PISTON RING SET

RING piston, set, .030" (0.76 mm) oversize

2шт.

7

N9641

PISTON RING SET

RING piston, set, .040" (1.02 mm) oversize

2шт.
