(2-044) - WATER PUMP, DIESEL MODELS

Запчасти Case 1818 (2-044) - WATER PUMP, DIESEL MODELS (02) - ENGINE

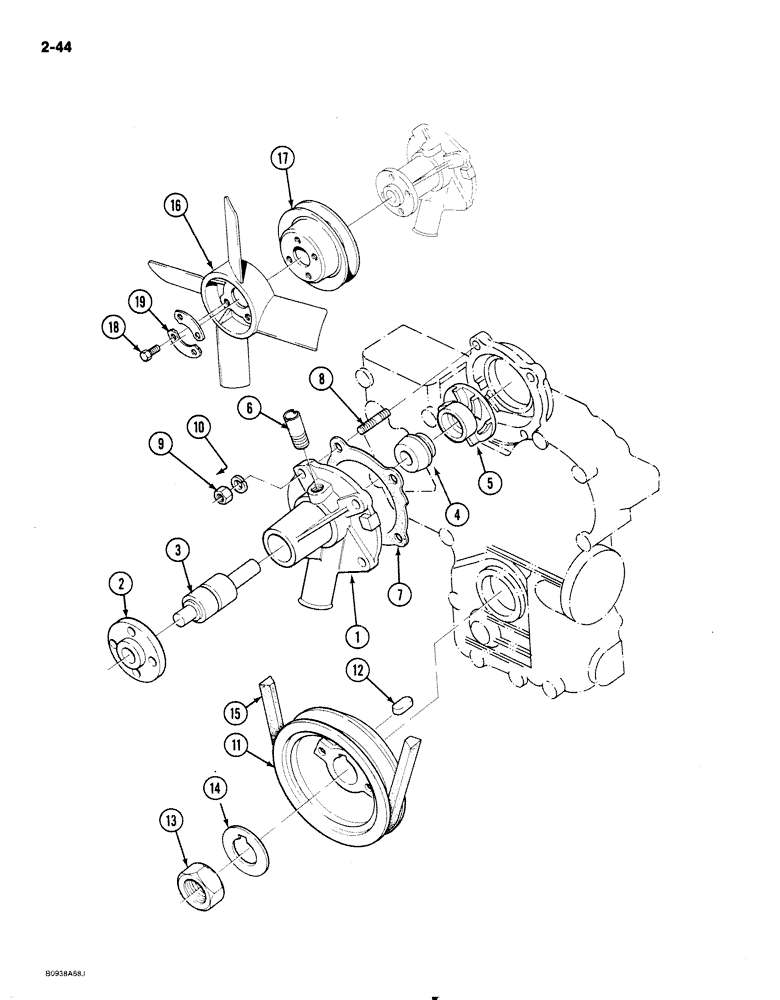

Схема запчастей Case 1818 - (2-044) - WATER PUMP, DIESEL MODELS (02) - ENGINE
15
10
18
6
12
3
5
4
1
11
9
17
14
16
7
8
19
13
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1959498C1

PUMP

ASSEMBLY water, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING water pump, order P/N 1959498C1

1шт.

2

1959500C1

FLANGE

water pump

1шт.

3

1959501C1

BEARING ASSY

BEARING AND SHAFT water pump

1шт.

4

1959502C1

SEAL

water pump

1шт.

5

1959503C1

IMPELLER

water pump

1шт.

6

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

TUBE water return

1шт.

7

1959505C1

GASKET

water pump

1шт.

8

1959506C1

STUD

water pump

4шт.

9

1959205C1

NUT

stud

4шт.

10

1959206C1

SPRING WASHER

lock

4шт.

11

1959507C1

X

PULLEY fan drive

1шт.

12

1959306C1

KEY

pulley

1шт.

13

1959509C1

NUT,Hex, M20 x 5, RH

crankshaft, M20

1шт.

14

1959511C1

WASHER

crankshaft

1шт.

15

1959512C1

BELT

Fan

1шт.

16

A173837

FAN

cooling

1шт.

17

1959513C1

PULLEY

fan

1шт.

18

1959476C1

BOLT

fan mounting

4шт.

19

1959514C1

WASHER

PLATE fan retaining

2шт.
