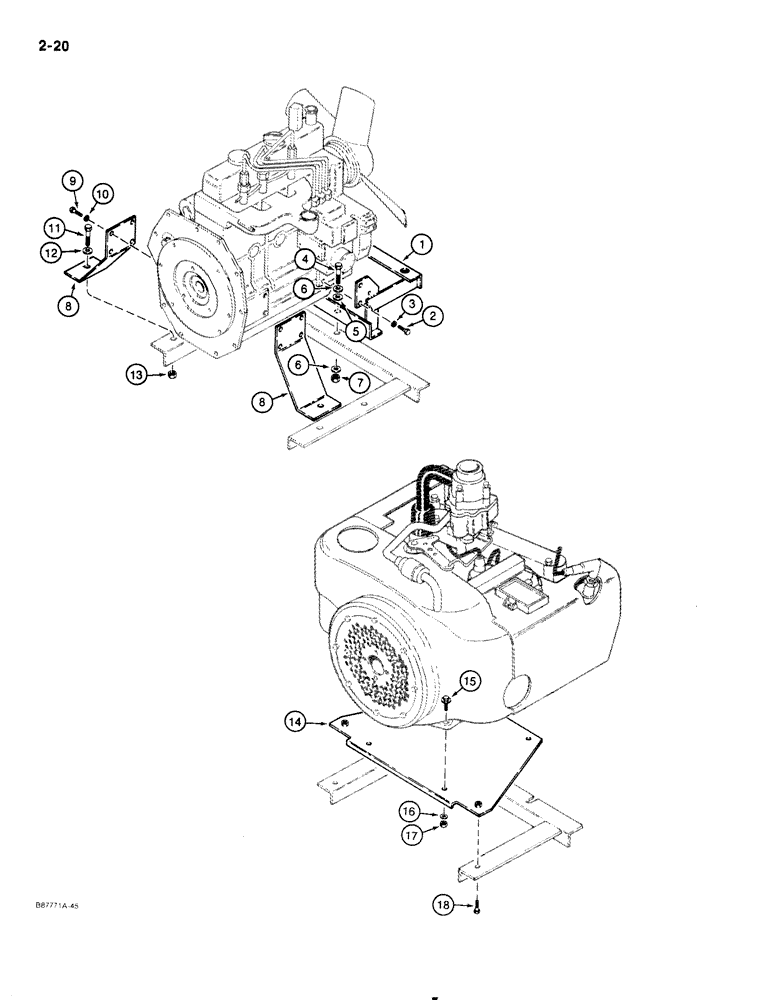

Запчасти Case 1818 (2-020) - ENGINE MOUNTING (02) - ENGINE

1

D137174

SUPPORT

diesel engine mounting, Diesel Models Only

1шт.

2

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Diesel Models Only Hex, M10 x 1.25 x 20, 8.8, Full Thd

4шт.

3

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, Diesel Models Only

4шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Diesel Models Only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

5

195-106

WASHER,1/2"

flat, , plated, Diesel Models Only 1/2"

1шт.

6

195-533

WASHER,1/2", SAE

flat, 1/2", plated, Diesel models only

2шт.

7

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, , Diesel Models Only 1/2"-13, GB

1шт.

8

D122031

SUPPORT

BRACKET diesel engine mounting, Diesel Models Only

2шт.

9

E20055

BOLT

hex head, 10 mm - 1.25 x 20 mm 8.8, plated, Diesel Models Only

8шт.

10

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, Diesel Models Only

8шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Diesel Models Only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

12

195-533

WASHER,1/2", SAE

flat, 1/2", plated, Diesel models only

2шт.

13

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, , Diesel Models Only 1/2"-13, GB

2шт.

14

E99898

PLATE

SUPPORT gasoline engine mounting, Gasoline Models Only

1шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex, flange head, 3/8" - 16 NC x 1-1/4", Gasoline Models Only

4шт.

16

95-6

WASHER,3/8"

flat, , Gasoline Models Only 3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Gasoline Models Only 3/8"-16, G5

4шт.

18

121-245

BOLT,Hex Serr, 3/8" - 16 x 1 3/8"

hex, flange head, 3/8" - 16 NC x 1-3/8", plated, Gasoline Models Only

3шт.
