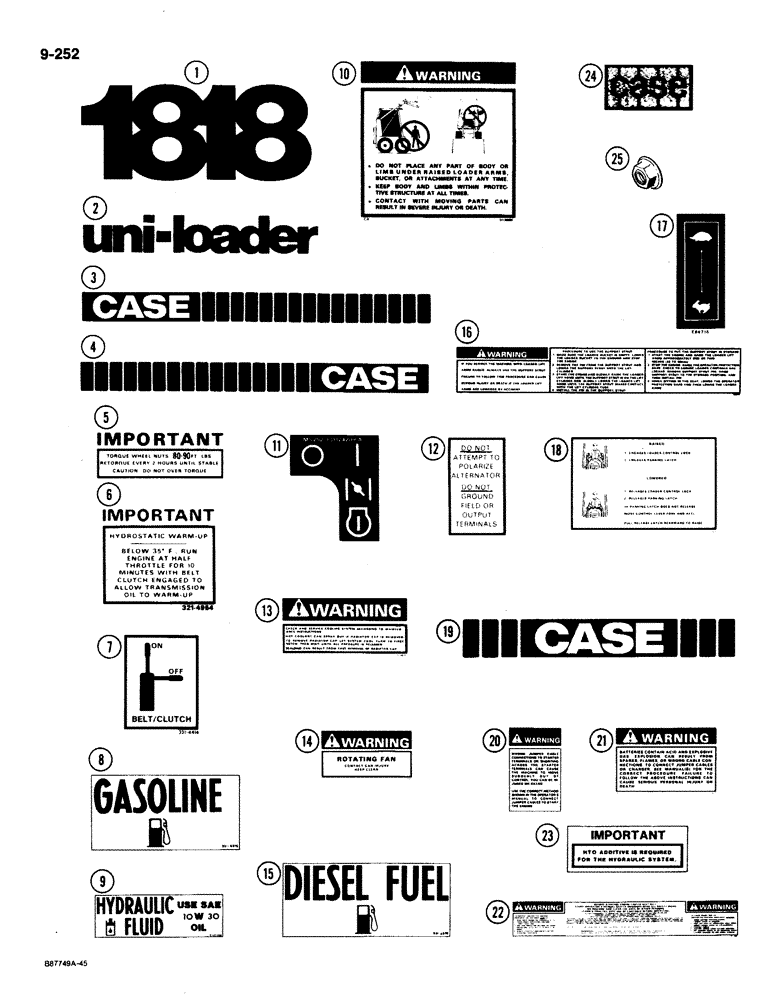

Запчасти Case 1818 (9-252) - DECALS - SPANISH (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT decal, part numbers to be released when available, Includes: Ref. 1-23

1шт.

1

H434959

DECAL

1818

2шт.

2

D123964

DECAL

uni-loader

2шт.

3

D139402

DECAL

Case, left hand

1шт.

4

D139403

DECAL

Case, right hand

1шт.

5

321-4077

DECAL

torque wheel nuts

2шт.

6

321-4573

DECAL

warm up instruction, hydrostatic

1шт.

7

321-4507

DECAL

belt/clutch

1шт.

8

E20021

DECAL

gasoline

1шт.

9

E20163

DECAL

hydraulic fluid, use SAE 10-W-30 oil

1шт.

10

321-6653

DECAL

warning, do not place any part of body

1шт.

11

D124209

DECAL

ignition switch

1шт.

12

321-3437

DECAL

do not attempt to polarize alternator

1шт.

13

321-6793

DECAL

warning, check and service cooling system

1шт.

14

321-6796

DECAL

warning, rotating fan

1шт.

15

E84619

DECAL

diesel fuel

1шт.

16

321-6797

DECAL

warning, if you service the machine with loader lift arms raised

1шт.

17

E84716

DECAL

throttle

1шт.

18

D134746

DECAL

parking latch and operator restraints

1шт.

19

D124236

DECAL

Case, rear door

1шт.

20

321-6723

DECAL

warning, wrong jumper cable connections to starter terminals

1шт.

21

321-6722

DECAL

warning, batteries contain acid and explosive gas

1шт.

22

321-6622

DECAL

warning, before starting engine, etc

1шт.

23

E20017

DECAL

HTO additive is required for the hydraulic system

1шт.

24

321-4739

EMBLEM

Case, on grille

1шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, 1/4", plated

2шт.
