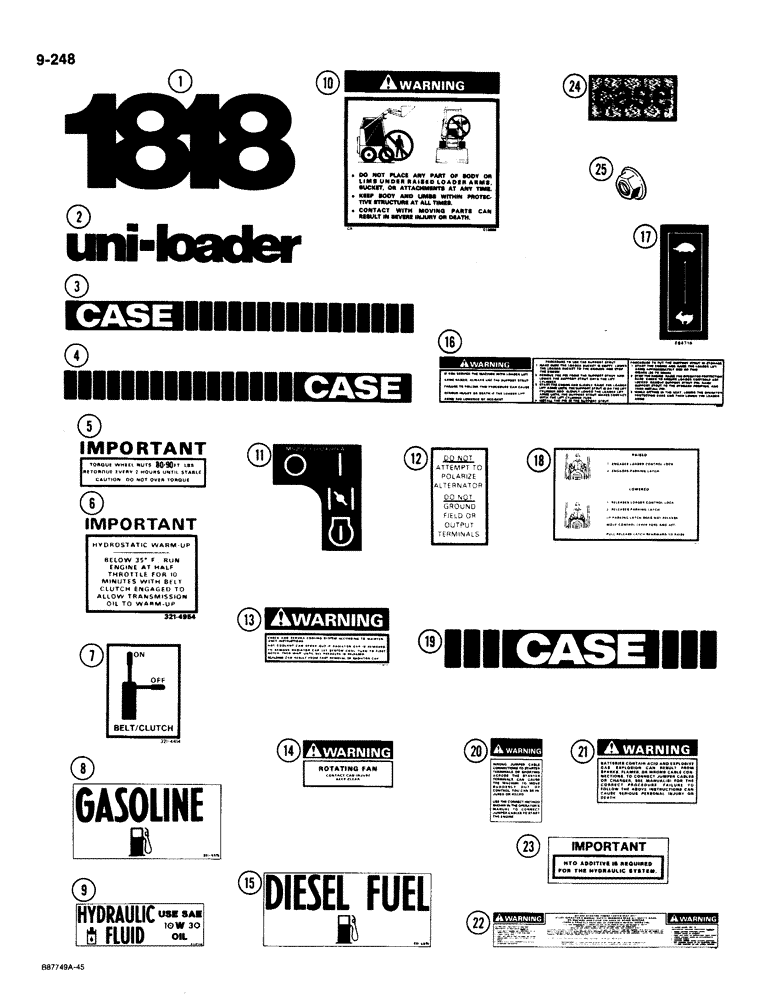

Запчасти Case 1818 (9-248) - DECALS - FRENCH (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT decal, part numbers to be released when available, Includes: Ref. 1-23

1шт.

1

H434959

DECAL

1818

2шт.

2

D123964

DECAL

uni-loader

2шт.

3

D139402

DECAL

Case, left hand

1шт.

4

D139403

DECAL

Case, right hand

1шт.

5

321-3603

DECAL

torque wheel nuts

2шт.

6

321-4571

DECAL

warm-up instruction, hydrostatic

1шт.

7

321-4505

DECAL

belt/clutch

1шт.

8

E20020

DECAL

gasoline

1шт.

9

E20162

DECAL

hydraulic fluid, use SAE 10-W-30 oil

1шт.

10

321-6652

DECAL

warning, do not place any part of body

1шт.

11

D124209

DECAL

ignition switch

1шт.

12

321-2874

DECAL

do not attempt to polarize alternator

1шт.

13

321-6701

DECAL

warning, check and service cooling system

1шт.

14

321-6789

DECAL

warning, rotating fan

1шт.

15

E84618

DECAL

diesel fuel

1шт.

16

321-6792

DECAL

warning, if you service the machine with loader lift arms raised

1шт.

17

E84716

DECAL

throttle

1шт.

18

D136506

DECAL

parking latch and operator restraints

1шт.

19

D124236

DECAL

Case, rear door

1шт.

20

321-6720

DECAL

warning, wrong jumper cable connections to starter terminals

1шт.

21

321-6719

DECAL

warning, batteries contain acid and explosive gas

1шт.

22

321-6620

DECAL

warning, before starting engine, etc

1шт.

23

E20016

DECAL

HTO additive is required for the hydraulic system

1шт.

24

321-4739

EMBLEM

Case, on grille

1шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, 1/4", plated

2шт.

26

321-5355

DECAL

PLATE noise approval, not shown

1шт.

27

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

drive, No. 4 x 1/4", not shown

4шт.
