(2-012) - RADIATOR, DIESEL MODELS

Запчасти Case 1818 (2-012) - RADIATOR, DIESEL MODELS (02) - ENGINE

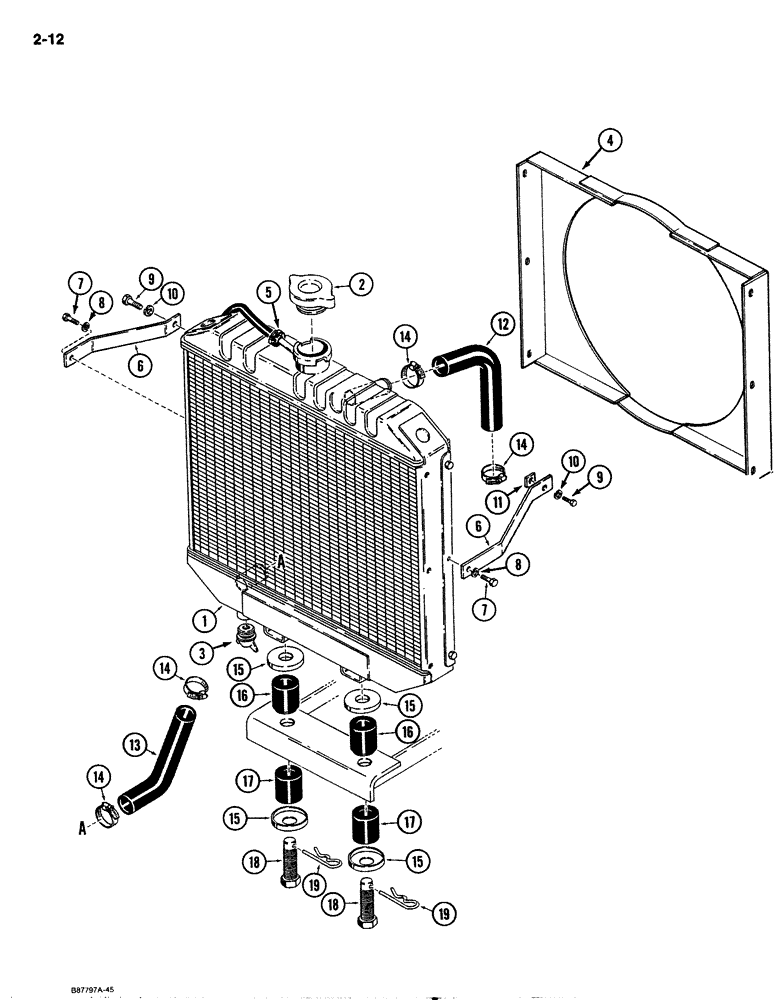

Схема запчастей Case 1818 - (2-012) - RADIATOR, DIESEL MODELS (02) - ENGINE
14
2
6
14
8
5
18
17
3
10
15
18
4
13
11
15
7
16
19
14
6
15
16
14
10
9
15
9
19
17
1
12
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A173836

RADIATOR

engine cooling, Includes: Ref. 2, 3 and 4

1шт.

2

A184964

FILLER CAP

CAP radiator

1шт.

3

A184965

COCK, DRAIN

VALVE drain

1шт.

4

A184942

SHROUD

fan

1шт.

5

163135H1

CLAMP,7/16", 3/8" Bolt

overflow pipe

2шт.

6

E20054

BRACE

radiator support

2шт.

7

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

plated Hex, M6 - 1 x 16, 8.8

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16" - 18 NC

2шт.

12

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Upper

1шт.

13

A173839

PIPE

HOSE lower, radiator

1шт.

14

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

15

1959244C1

CUP WASHER

special

4шт.

16

1959242C1

HITCH DAMPER

INSULATOR rubber, upper

2шт.

17

1959243C1

HITCH DAMPER

INSULATOR rubber, lower

2шт.

18

1959241C1

BOLT

special, radiator mounting

2шт.

19

1959245C1

LINCH PIN

PIN hair, bolt

2шт.
