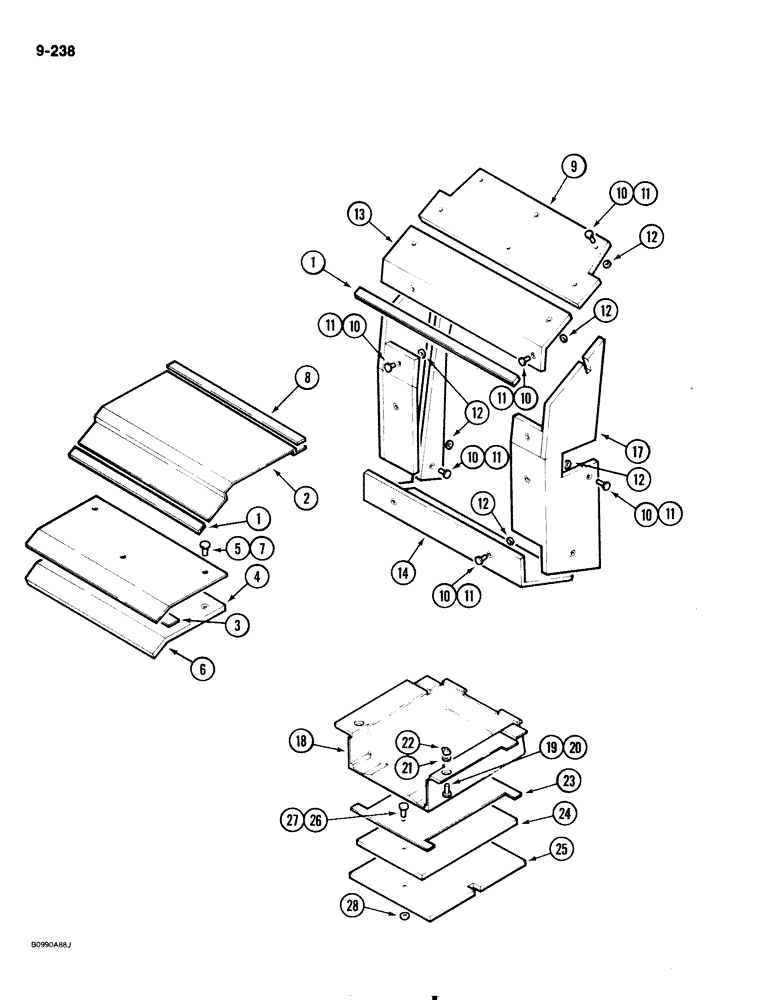

Запчасти Case 1818 (9-238) - DELUXE NOISE KIT, DIESEL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

E20227

SEALING STRIP

STRIP protection

1шт.

2

E99915

PAD

engine, cover

1шт.

3

E99940

STRIP

retaining, special

3шт.

4

E20219

INSULATOR

PAD engine cover, upper

1шт.

5

E99794

TAPE

self adhesive, 1 inch wide

3шт.

6

E99641

CAP

bonded fastener

3шт.

7

E20235

FASTENER

bonded

3шт.

8

E20239

SEALING STRIP

STRIP sealing

1шт.

9

E20097

INSULATOR

PAD rear door, upper

1шт.

10

E99638

FASTENER

bonded

25шт.

11

E99794

TAPE

self adhesive, 1 inch wide

25шт.

12

E99641

CAP

bonded fastener

25шт.

13

E20091

INSULATOR

PAD rear door, upper

1шт.

14

E20096

PANEL

PAD rear door, lower

1шт.

15

E20095

INSULATOR

PAD door, left hand side, outer

1шт.

16

E20099

INSULATOR

PAD door, left hand side, inner

1шт.

17

E20098

INSULATOR

PAD door, right hand side

1шт.

18

E20111

MAT

PAD floor

1шт.

19

E20237

FASTENER

bonded

2шт.

20

E99794

TAPE

self adhesive, 1 inch wide

2шт.

21

195-2027

WASHER,.344" x 1" x .065"

flat, 5/16", plated

2шт.

22

REF

INSTRUCTION

NUT wing, 5/16" - 18 NC

2шт.

23

E99916

PAD

floor plate

1шт.

24

E20218

INSULATOR

PAD floor plate

1шт.

25

E20094

INSULATOR

PAD floor plate

1шт.

26

E20235

FASTENER

bonded

2шт.

27

E99794

TAPE

self adhesive, 1 inch wide

2шт.

28

E99641

CAP

bonded fastener

2шт.
