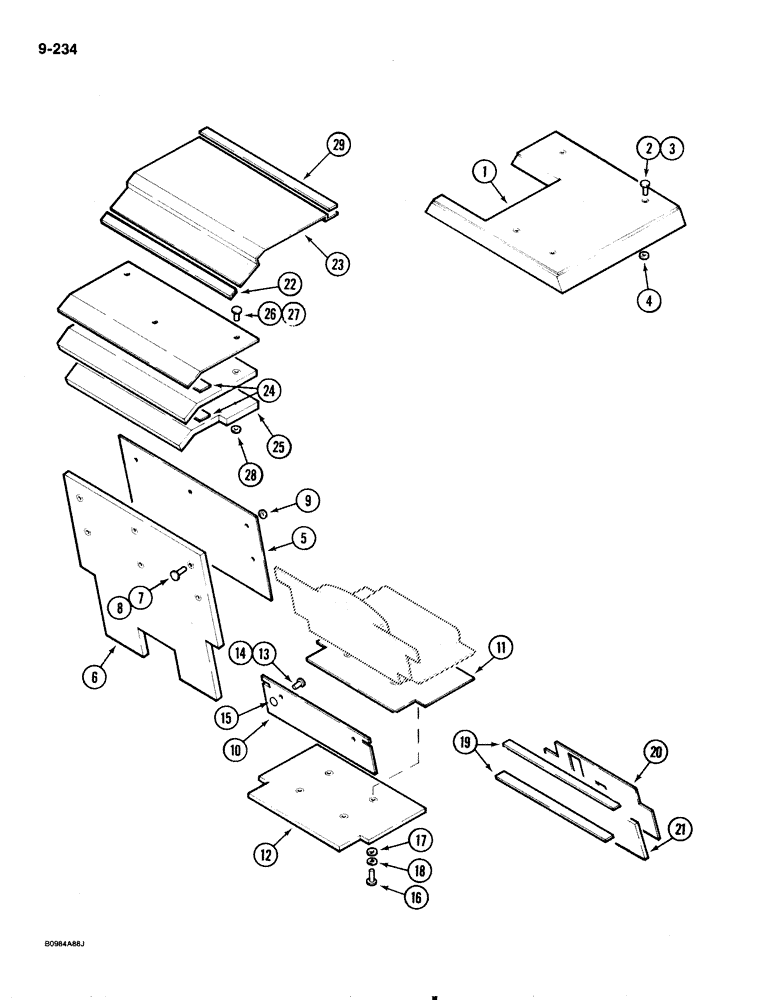

Запчасти Case 1818 (9-234) - STANDARD NOISE KIT (09) - CHASSIS/ATTACHMENTS

1

E20643

INSULATOR

LINER roof interior, Replaces: P/N E99919

1шт.

2

E99640

FASTENER

bonded, 50 mm long

4шт.

3

E99794

TAPE

self adhesive, 1 inch wide

4шт.

4

E99641

CAP

bonded fastener

4шт.

5

E99917

PAD

engine, firewall

1шт.

6

E99923

INSULATOR

PAD engine, firewall

1шт.

7

E99639

FASTENER

bonded, 20 mm long

6шт.

8

E99794

TAPE

self adhesive, 1 inch wide

6шт.

9

E99641

CAP

bonded fastener

6шт.

10

E20102

PAD

seat plate

1шт.

11

E99918

PAD

seat plate

1шт.

12

E99922

INSULATOR

PAD seat plate and support

1шт.

13

E99639

FASTENER

bonded, 20 mm long

2шт.

14

E99794

TAPE

self adhesive, 1 inch wide

2шт.

15

E99641

CAP

bonded fastener

2шт.

16

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex head, 3/8" - 16 NC x 1-3/8", zinc plated

4шт.

17

195-258

WASHER, LOCK

WASHER flat, 3/8", plated

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

E99940

STRIP

retaining, special

3шт.

20

E99912

PAD

heel plate

1шт.

21

E20100

INSULATOR

PAD heel plate

1шт.

22

E20227

SEALING STRIP

STRIP protection

1шт.

23

E99915

PAD

engine cover

1шт.

24

E99940

STRIP

retaining, special

3шт.

25

E99942

INSULATOR

PAD engine cover

1шт.

26

E99639

FASTENER

bonded, 20 mm long

3шт.

27

E99794

TAPE

self adhesive, 1 inch wide

3шт.

28

E99641

CAP

bonded fastener

3шт.

29

E20239

SEALING STRIP

STRIP sealing

1шт.
