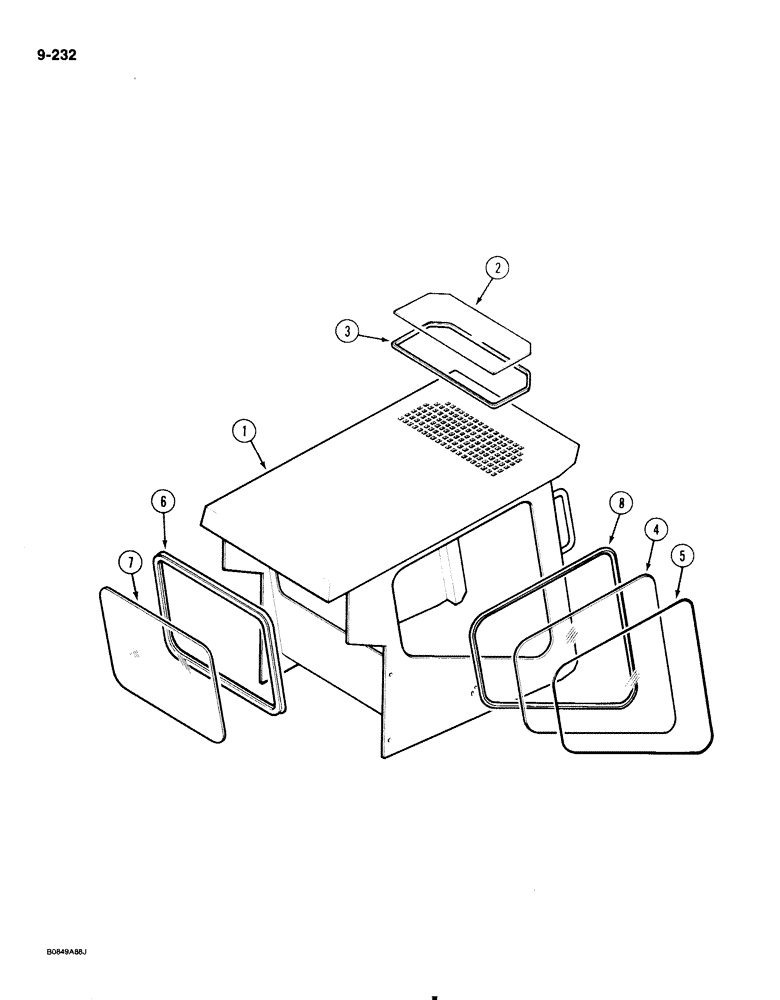

Запчасти Case 1818 (9-232) - ROPS - GLAZED (09) - CHASSIS/ATTACHMENTS

E20207

CAB

FRAME ASSEMBLY ROPS, canopy, glazed, Includes: Ref. 1-8

1шт.

1

E20199

FRAME

ROPS canopy

1шт.

2

E20200

GLASS

canopy, top

1шт.

3

E20203

SEALING STRIP

STRIP bonding, 61-1/4" (1555 mm) long

1шт.

4

E99968

GLASS

side, right hand and left hand

2шт.

5

E20205

GASKET

STRIP filler, 91" (2312 mm) long

2шт.

6

E20210

SEALING STRIP

CHANNEL rear screen, 77" (1955 mm) long

1шт.

7

E20208

GLASS

glazed, rear

1шт.

8

E20204

GASKET

STRIP weather, self sealing, 90-1/2" (2300 mm) long

2шт.
