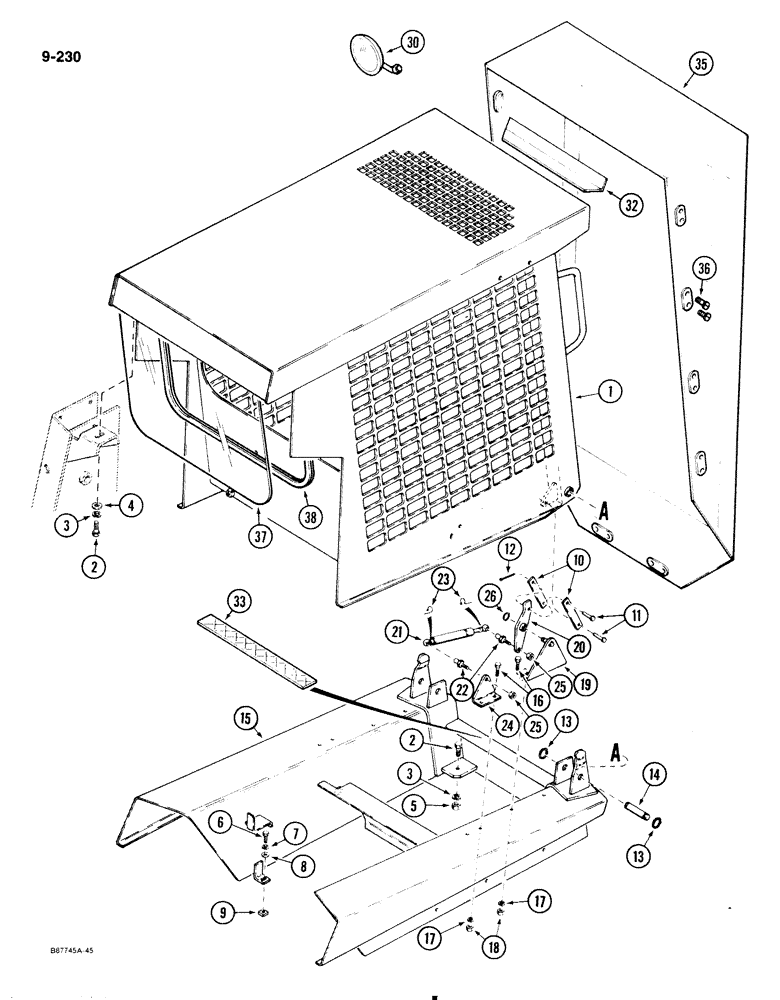

Запчасти Case 1818 (9-230) - ROPS - STANDARD (09) - CHASSIS/ATTACHMENTS

1

D134589

FRAME

ROPS

1шт.

Service kit P/N H674378 is available, per ECN H3789011

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

9

25-285

SQUARE NUT,Sq, 5/16"-18

square, heavy, 5/16" - 18 NC

2шт.

10

D120691

LINK

bellcrank to ROPS frame

4шт.

11

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

4шт.

12

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

13

T25683

SNAP RING,#75, Ext

Ring, Snap, , pivot pin #75, Ext

4шт.

14

D120704

PIN,19.05mm OD x 88mm L

pivot

2шт.

15

D135072

CAB

FRAME operators compartment

1шт.

16

113-330

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

hex head, 5/16" - 18 NC x 1", plated

8шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

18

9635082

NUT,5/16" - 18, Gr 5

8шт.

19

E20863

BRACKET

bellcrank, Replaces: P/N D120686

2шт.

20

E20866

DIPPER

BELLCRANK spring cylinder, Replaces: P/N D120692

2шт.

E20879

HOSE

CYLINDER ASSEMBLY ROPS frame lift, Replaces: P/N D120660, Includes: Ref. 21-23

2шт.

E20869 Cylinder change, units with one cylinder and clevis end cylinders

1шт.

E20871

CLEVIS

tube end

1шт.

E20985

CLEVIS

rod end

1шт.

E20619

PLUG

1/4 in.

6шт.

21

NSS

NOT SOLD SEPARAT

CYLINDER ROPS frame

1шт.

22

F44882

BALL

STUD ball, cylinder

2шт.

23

F44883

CLIP,DIN 71805 - S10

lock, ball stud

2шт.

24

E20862

BRACKET

cylinder mounting, Replaces: P/N D120689

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

26

A11538

SNAP RING,#50, Ext

Ring, Snap, , bellcrank #50, Ext

2шт.

30

E99967

REAR VIEW MIRROR

MIRROR, 110 mm convex TBG Germany

1шт.

32

E20150

PAD

head protection TBG Germany

1шт.

33

E20153

PAD

non-slip, center support TBG Germany

1шт.

35

E20241

CURTAIN

COVER roll up, plastic, optional

1шт.

36

187-321

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW round head, self tapping, No. 8 x 1/2"

20шт.

37

E20208

GLASS

glazed, rear

1шт.

38

E20210

SEALING STRIP

CHANNEL rear screen, 77" (1955 mm) long

1шт.
