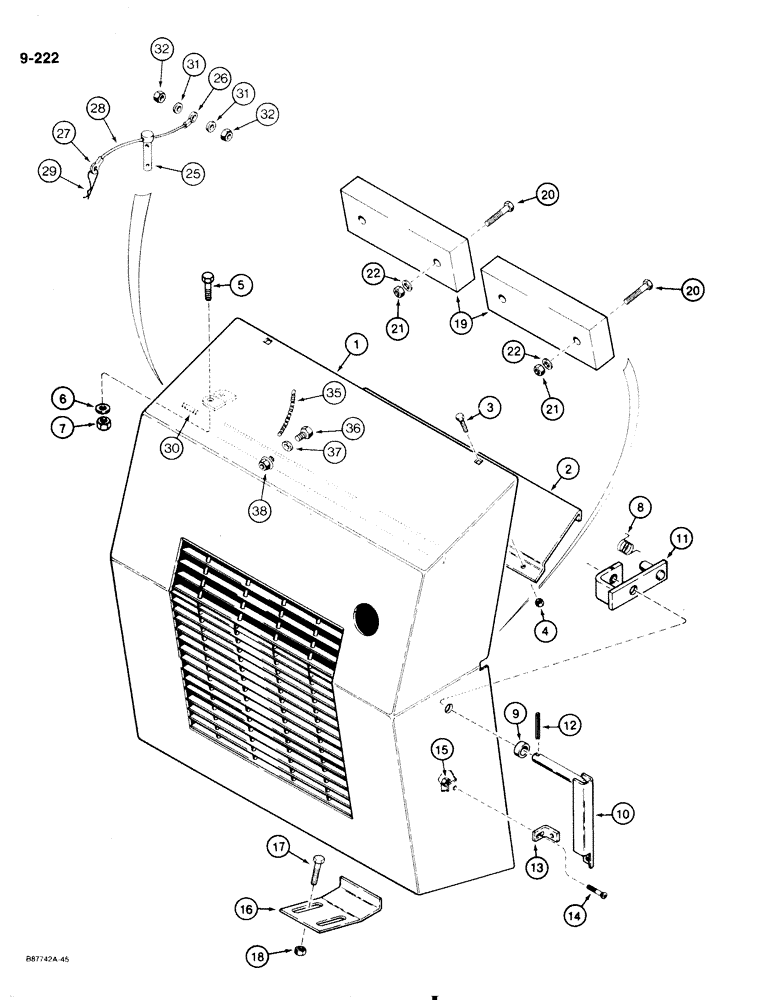

Запчасти Case 1818 (9-222) - REAR COUNTERWEIGHT AND SWING OUT DOOR, DIESEL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

E20221

DOOR

rear swing out

1шт.

2

D137752

COVER

rear door

1шт.

3

E98067

SCREW

BOLT special, rear door cover

2шт.

4

E98788

LOCK NUT

special, rear door cover

2шт.

5

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

6

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

7

131-70

NUT,1/2"-13, GB

NUT hex, self locking, 1/2" - 13 NC, plated

2шт.

8

D132020

SPRING

latch

1шт.

9

D134827

SPACER

latch

1шт.

10

D134824

HANDLE

rear door

1шт.

11

D134821

LATCH

rear door

1шт.

12

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

13

D124776

BRACKET

ANGLE latch positioning, outer

1шт.

14

D84703

BOLT

carriage, M8 x 1.5 x 25 mm long

1шт.

15

E20231

NUT

hex, flange type, special locking, M8

1шт.

16

H434914

SUPPORT

BRACKET rear door, lower

1шт.

17

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

18

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

2шт.

19

E99992

WEIGHT

COUNTERWEIGHT rear

2шт.

20

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex head, 5/8" - 11 NC x 3", plated, Replaces: P/N 113-601

4шт.

21

129-107

NUT,5/8"-11, G5

4шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

E99295

PIN

retaining, open door TBG Germany

1шт.

26

E99860

PIN

EYE wire, cable end 0.BA TBG Germany

1шт.

27

E99858

ROD

EYE wire, cable end 4.BA TBG Germany

1шт.

28

E98861

CABLE

WIRE nylon coated TBG Germany

1шт.

29

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", TBG Germany

1шт.

30

NSS

NOT SOLD SEPARAT

STUD, M6 x 16 mm long TBG Germany

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

TBG Germany M6

2шт.

32

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm - 1, plated, TBG Germany

2шт.

35

E20214

CHAIN (CE)

CHAIN door check, 16" 406 mm long

1шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

37

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

38

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC, plated

1шт.
