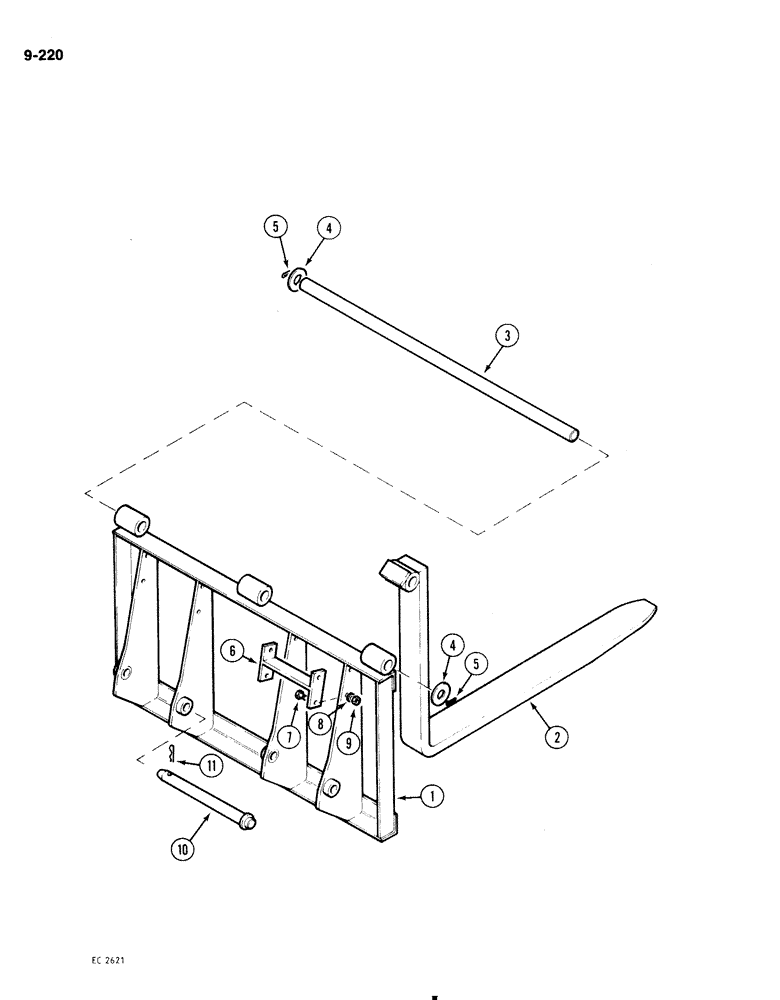

Запчасти Case 1818 (9-220) - 30 INCH (760 MM) PALLET FORK (09) - CHASSIS/ATTACHMENTS

D102680

FORK

ASSEMBLY pallet, 30" (760 mm), Includes: Ref. 1-11

1шт.

1

D138991

FRAME

pallet fork

1шт.

2

D138986

FORK

pallet

2шт.

3

D57820

ROD

SHAFT fork retaining

1шт.

4

195-553

WASHER,1", SAE

flat, 1", plated

2шт.

5

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

6

D138882

PIN ASSY.

PIN ASSEMBLY tool tach

2шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

D138884

PIN

ASSEMBLY, to lower retention holes, tool tach

2шт.

11

1978738C1

HAIR PIN COTTER

retaining, Replaces P/N 136-251

2шт.
