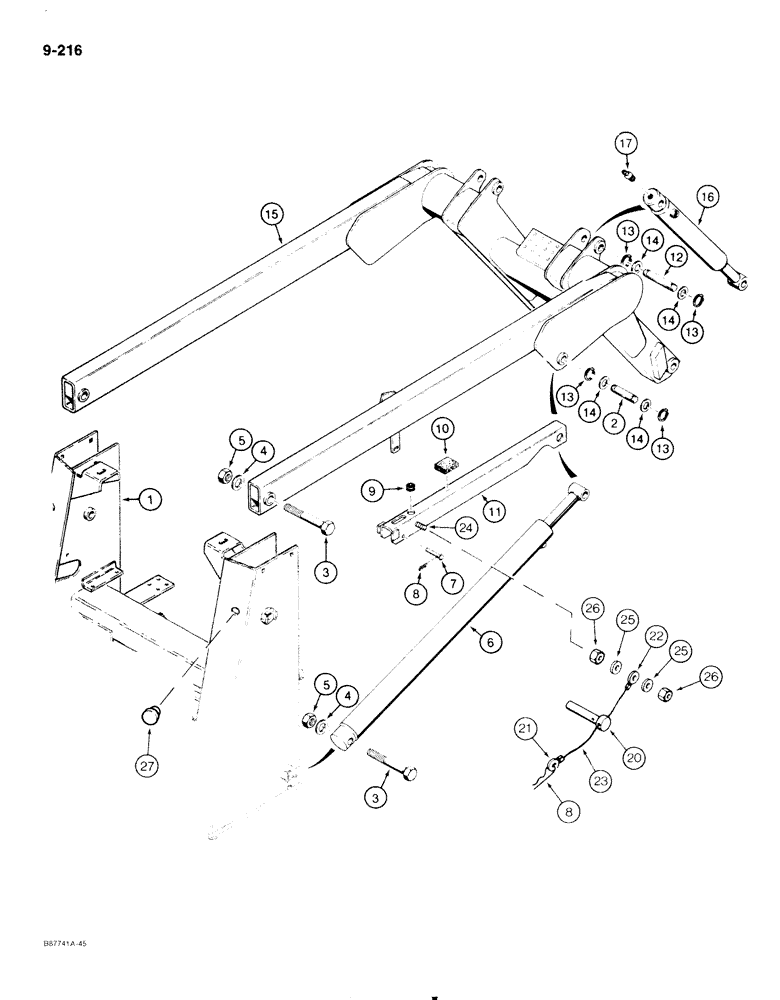

Запчасти Case 1818 (9-216) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS, 1818 uni-loader, see Figure 9-214 for chassis and related parts

1шт.

2

D138889

PIN,69.98mm OD x 160mm L

lift cylinder to loader lift frame

2шт.

3

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

hex head, 1" - 8 NC x 6", grade 8

4шт.

4

195-553

WASHER,1", SAE

flat, 1", plated

4шт.

5

131-698

LOCK NUT,1"-8, GB

NUT hex, self locking, 1" - 8 NC, plated

4шт.

6

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, see Figure 8-208

2шт.

7

D134253

PIN

strut lock

1шт.

8

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

9

49566

GROMMET

strut

1шт.

10

E20314

PAD

strut, lift arm Replaces: P/N D79692

1шт.

11

H672851

STRUT

loader arm support

1шт.

12

D138888

PIN,22.22mm OD x 114.6mm L

bucket tilt cylinder to loader lift frame

2шт.

13

D71829

SNAP RING,#87, Ext

Pin #87, Ext

8шт.

14

D49345

WASHER

flat, 7/8"

8шт.

15

D138710

ROCKER ARM

FRAME loader lift

1шт.

Ref: #15 Frame - Service Arm Kit is P/N H674377 per ECN H37890.

1шт.

16

D136128

CYLINDER

ASSEMBLY bucket tilt, see Figure 8-210

2шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" - 28 NF

2шт.

20

E20140

PIN

strut lock TBG Germany

1шт.

21

E99860

PIN

EYE wire, cable end 0.BA TBG Germany

1шт.

22

E99858

ROD

EYE wire, cable end

1шт.

23

E98861

CABLE

WIRE nylon coated TBG Germany

1шт.

24

NSS

NOT SOLD SEPARAT

STUD, M6 x 16 mm long

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

26

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm, plated

2шт.

27

E82545

CAP

grease fitting TBG Germany

10шт.
