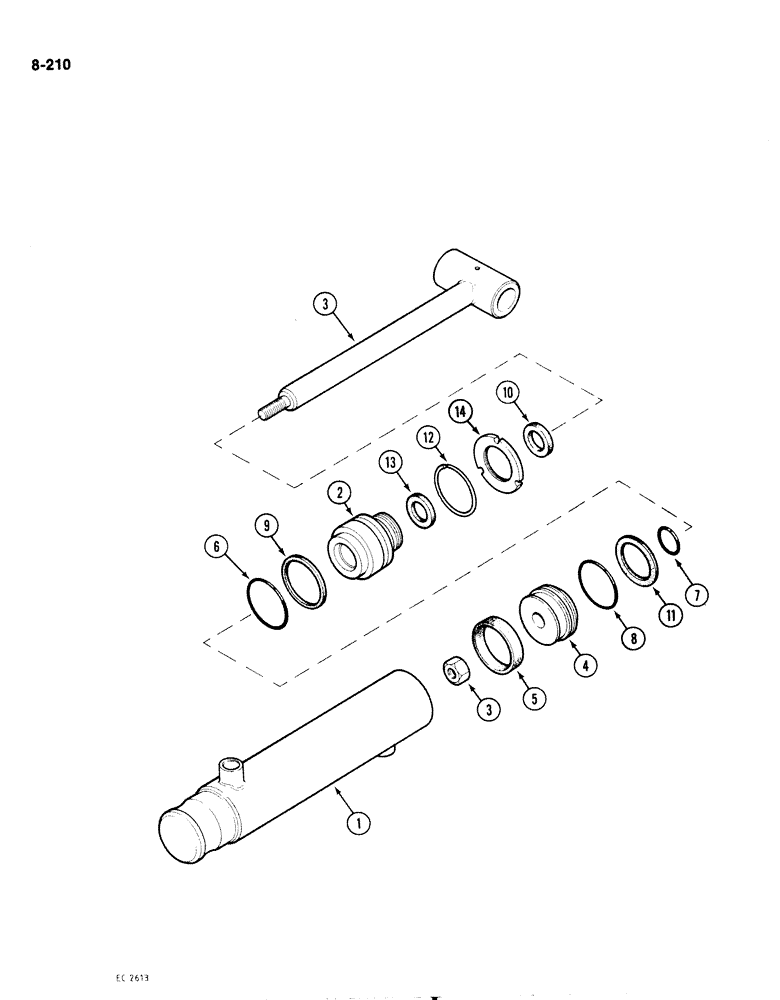

Запчасти Case 1818 (8-210) - BUCKET TILT CYLINDER (08) - HYDRAULICS

D136128

CYLINDER

ASSEMBLY bucket tilt

1шт.

1

H438545

TUBE

cylinder

1шт.

2

N14643

GLAND

cylinder

1шт.

3

H438546

PISTON ROD

ROD cylinder, Includes nut P/N H436413

1шт.

4

N14642

PISTON

cylinder

1шт.

N14638

SEAL KIT

seal, cylinder, Includes: Ref. 5-14

1шт.

5

NSS

NOT SOLD SEPARAT

RING wear

1шт.

6

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

7

377028R1

O-RING,0.989" ID x 0.07" Width

piston, inner

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

10

697494R91

OIL SEAL

WIPER rod, gland

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER outer, Serial Range: O-ring-piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

14

H220459

NUT

RING lock, not included in kit P/N N14638

1шт.
