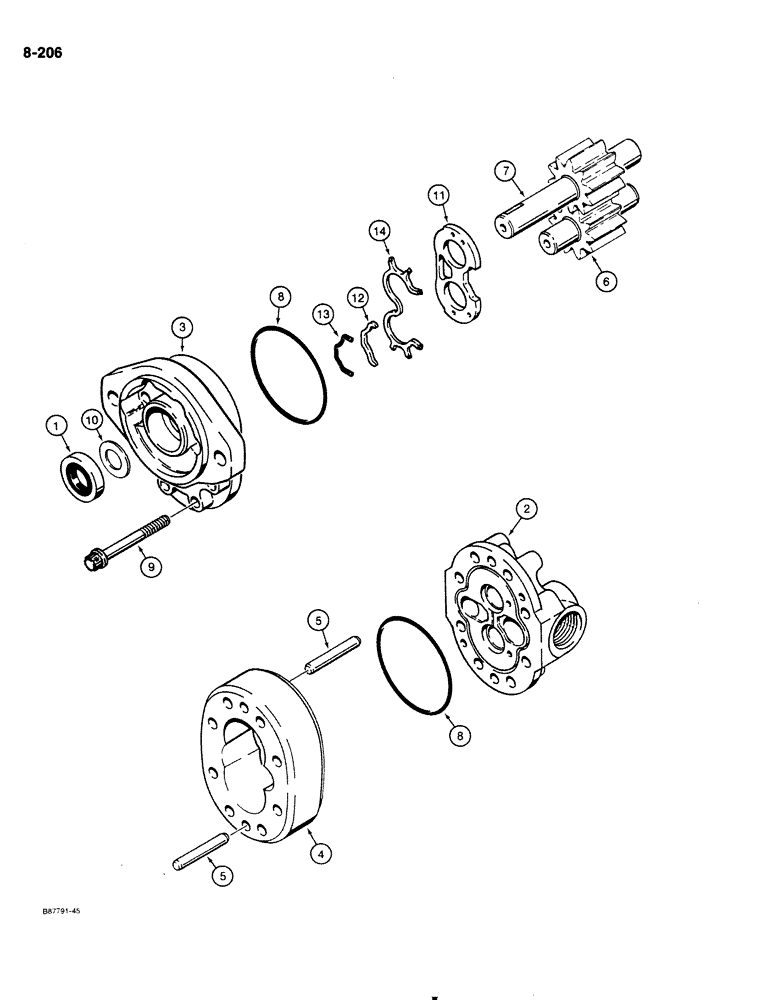

Запчасти Case 1818 (8-206) - EQUIPMENT HYDRAULIC PUMP, GASOLINE MODELS ONLY (08) - HYDRAULICS

D136386

PUMP

ASSEMBLY hydraulic, equipment, Includes: Ref. 1-14

1шт.

1

H83733

SEAL

shaft

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

2

N14628

COVER

port end

1шт.

3

N14632

COVER

drive end

1шт.

N14630

HOUSING

ASSEMBLY gear, hydraulic pump, Includes: Ref. 4-5

1шт.

4

NSS

NOT SOLD SEPARAT

BODY hydraulic pump

1шт.

5

71120

VALVE

PIN dowel, body

2шт.

N14631

GEAR-SET

GEAR ASSEMBLY hydraulic pump, Includes: Ref. 6-7

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR driven, hydraulic pump

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR drive, hydraulic pump

1шт.

Ref: #7 Gear - Key for keyway is P/N H415158

1шт.

8

H758599

O-RING,2.989" ID x 3.129" OD

hydraulic pump

2шт.

Part of Seal Repair Kit, P/N N13136

1шт.

9

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT ferry head, 5/16" - 18 NC x 2-1/4", grade 8

8шт.

10

N13135

WASHER

special

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

11

NSS

NOT SOLD SEPARAT

WEAR PLATE pump

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, seal

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL hydraulic pump

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER seal

1шт.

Part of Seal Repair Kit, P/N N13136

1шт.

N13136

SEAL KIT

- repair, seal, Includes: Ref. 1, 8 and 10-14

1шт.
