Запчасти Case 1818 (8-198) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

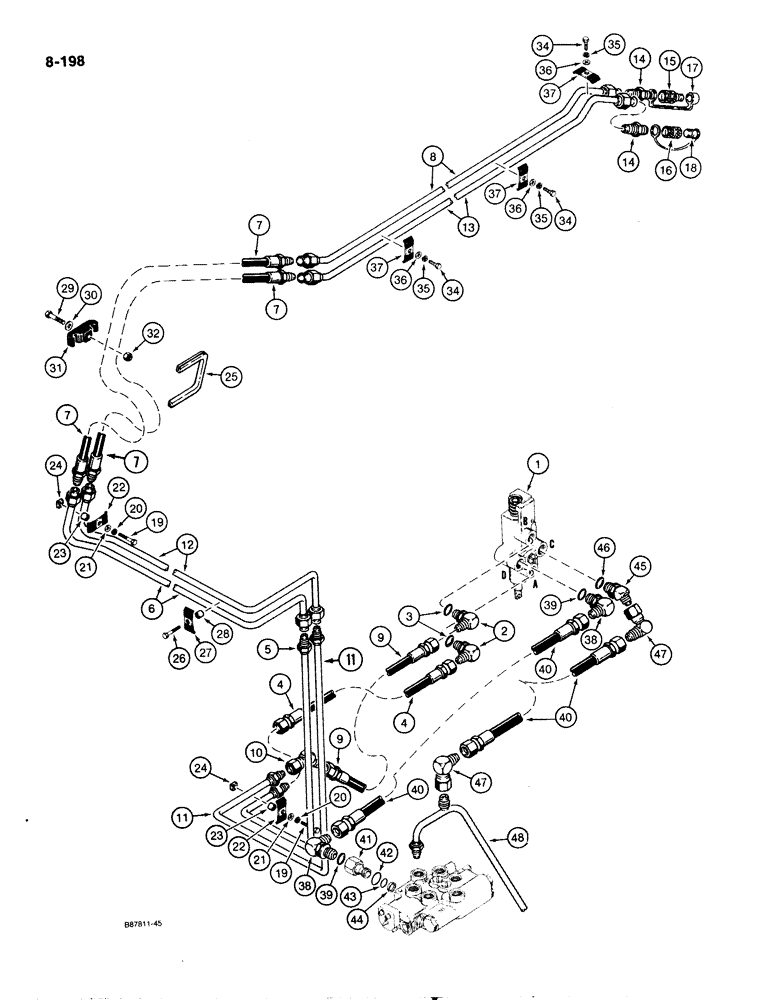

ASSEMBLY control, auxiliary hydraulic, parts list Figure 8-202

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

4

E99888

HOSE

auxiliary control valve, port A

1шт.

5

E99837

TUBE

auxiliary control valve hose to intermediate tube

1шт.

6

E99835

TUBE

intermediate

1шт.

7

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

37-13/32" (950 mm) long, intermediate, upper

2шт.

8

E20063

TUBE

intermediate hose to quick disconnect

1шт.

9

E99970

HOSE

auxiliary control valve, port B

1шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degree, swivel

1шт.

11

E99839

TUBE

auxiliary control valve hose to intermediate tube

1шт.

12

E99841

TUBE

intermediate

1шт.

13

E20061

TUBE

intermediate hose to quick disconnect

1шт.

14

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight

2шт.

15

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

1шт.

16

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

1шт.

17

E99889

LIGHT FAIRING

PLUG dust, quick disconnect

1шт.

18

D62402

PLUG

dust, quick disconnect

1шт.

19

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

22

R17319

CLAMP

, Serial Range: tubes-chassis

2шт.

23

D33551

BUSHING

SPACER clamp

2шт.

24

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16" - 18 NC

2шт.

25

D38500

LINING

TRIM, 9-13/16" long, upper chassis, cut from P/N F42827 bulk trim, see below

1шт.

26

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

hex head, 5/16" - 18 NC x 1-3/8", plated

1шт.

27

R17319

CLAMP

intermediate tube

1шт.

28

D33551

BUSHING

SPACER clamp

1шт.

29

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

495-21044

WASHER,3/8"

1шт.

31

D124301

CLAMP,3/4" ID

intermediate hose to upper chassis

1шт.

32

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

1шт.

33

E99816

TUBE

SLEEVE hose, intermediate, not shown

1шт.

34

113-58

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

hex head, 5/16" - 18 NC x 1/2", plated

3шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

36

195-521

WASHER,5/16", SAE

flat, 5/16", plated

3шт.

37

R17319

CLAMP

tubes to loader lift frame

3шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

40

E99887

HOSE

loader control valve and outlet hose

2шт.

D61608

SLEEVE

ASSEMBLY power beyond, Includes: Ref. 41-44

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

42

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large

1шт.

43

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

small

1шт.

44

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, sleeve

1шт.

45

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, Incl. Ref 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

47

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

48

E99844

TUBE

loader control valve outlet

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, 116" (2946 mm) long

1шт.
