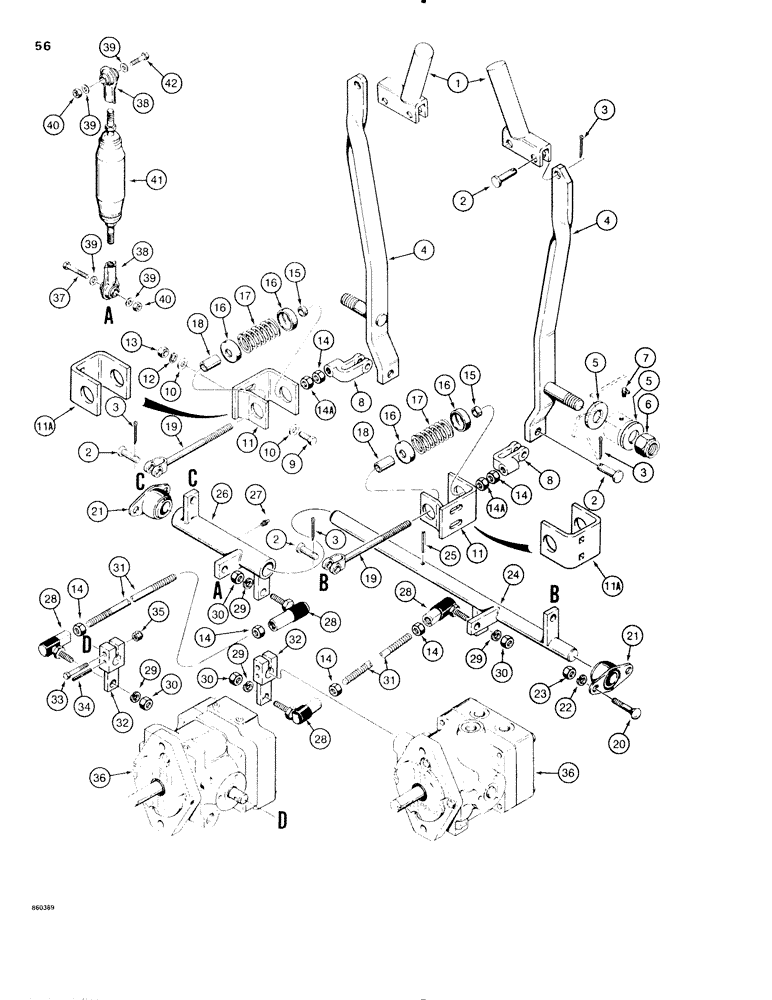

Запчасти Case 1816C (056) - CONTROLS - FORWARD AND REVERSE (11) - TRACKS/STEERING

1

D56613

HANDLE

- control

2шт.

2

141-54

CLEVIS PIN,3/8" x 1 1/16"

6шт.

3

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

6шт.

4

D57097

HANDLE

CONTROL LEVER - forward and reverse

2шт.

5

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

4шт.

6

131-83

NUT,3/4"-10

NUT - hex, self-locking, NC 3/4"-10

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

L11182

YOKE,3/8" - 24

CLEVIS - offset

2шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

11

D60122

RETAINER

- spring, welded construction, if used

2шт.

11a

D120439

BRACKET

RETAINER - spring, formed construction, if used

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

129-123

NUT,3/8"-24, G5

6шт.

14a

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-24 NF

2шт.

15

D95551

BUSHING

SPACER - short

2шт.

16

D63156

SPRING CUP

CUP - spring guide

4шт.

17

D74911

SPRING

- rod return

2шт.

18

D53393

SPACER

- long

2шт.

19

R13752

ROD

- pump control

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

21

L48412

FLANGED BEARING

BEARING - shaft support

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

D60004

SHAFT

- pump linkage, inner

1шт.

25

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

26

D60066

CONTROL

SHAFT - pump linkage, outer

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

28

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

- control rod

4шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-24 NF

4шт.

31

D57104

ROD

- pump control

2шт.

32

D81249

LINK

- pivot

2шт.

33

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

34

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

2шт.

36

D75993

PUMP

- variable displacement, see Fig. 068

2шт.

37

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

38

D59922

BALL JOINT

- female

4шт.

39

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

40

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-16 NC

4шт.

41

D66538

SHOCK ABSORBER

- cylinder

2шт.

42

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH shock absorber only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

42

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

RH shock absorber only Hex, 3/8"-16 x 1 1/2", G5

1шт.
