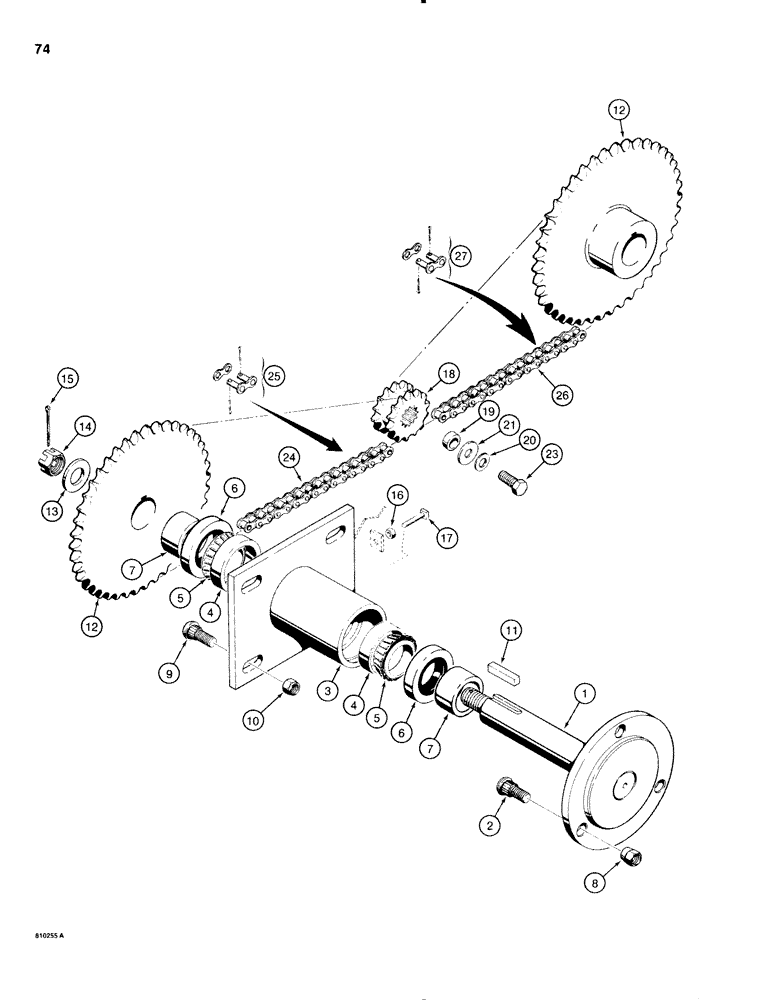

Запчасти Case 1816C (074) - AXLES AND DRIVE CHAINS (06) - POWER TRAIN

D120352

SHAFT

AXLE ASSEMBLY - wheel, Includes: Ref. 1and 2

4шт.

1

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

2

D91709

WHEEL BOLT

BOLT - special, wheel

3шт.

D57755

HUB

ASSEMBLY, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

4

H751370

BEARING CUP

BEARING - cup

2шт.

5

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

BEARING ASSEMBLY - cone

2шт.

6

D56800

SEAL

- grease

2шт.

7

D56799

SPACER

- bearing

2шт.

8

F23214

WHEEL NUT

- special, wheel

12шт.

9

E16592

WHEEL BOLT

BOLT - special, 1/2"-20 NF x 1-7/8"

16шт.

10

131-915

FLANGE NUT,Flg, 1/2"-20, G5

- hex, self-locking, 1/2"-20 NF

16шт.

11

D93645

KEY

- square, 3/8" x 1/72"

4шт.

12

D120138

DRIVE SPROCKET

SPROCKET - driven

4шт.

13

195-549

WASHER,7/8", SAE

- flat, 7/8", zinc, plated

12шт.

14

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8"-14 NF

4шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

181-650

SET SCREW,Sq Hd, 3/8"-16 x 1 3/4"

- square head, 3/8"-16 NC x 1-3/4"

4шт.

18

D76459

DRIVE SPROCKET

SPROCKET - drive

2шт.

19

D60602

SPACER

- sprocket

2шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

21

95-8

WASHER,1/2"

flat 1/2"

2шт.

22

B17068

ADHESIVE

- locktite, No. 242, 6 ml. used with item 23, not shown

2шт.

23

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

2шт.

D56647

CHAIN (CE)

CHAIN - No. 60, right-hand rear and left-hand front, Includes: Ref. 24 and 25

2шт.

24

NSS

NOT SOLD SEPARAT

CHAIN - No. 60

1шт.

25

D66284

LINK,19.05mm Pitch

ASSEMBLY - link, clip and cotter pins

1шт.

D56648

CHAIN (CE)

CHAIN - No. 60, right-hand front and left-hand rear, Includes: Ref. 26 and 27

2шт.

26

NSS

NOT SOLD SEPARAT

CHAIN - No. 60

1шт.

27

D66284

LINK,19.05mm Pitch

ASSEMBLY - link, clip and cotter pins

1шт.
