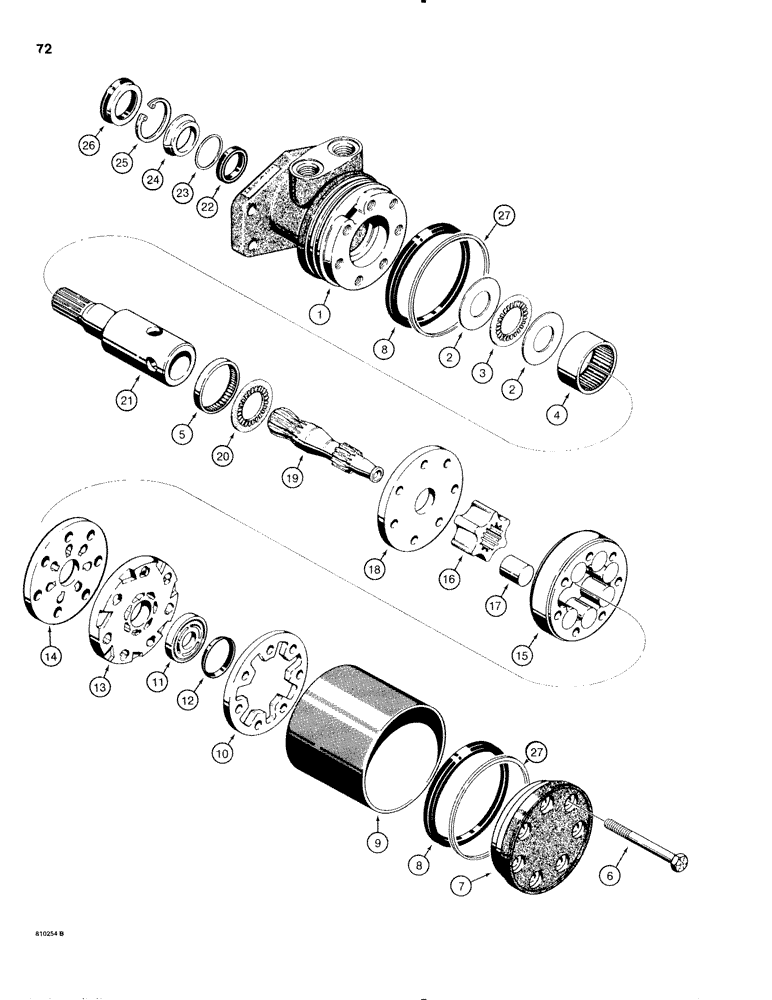

Запчасти Case 1816C (072) - D120048 HYDRAULIC MOTOR (06) - POWER TRAIN

D120048

MOTOR, HYDRAULIC

Hydraulic, MAB 16041 identification number, Includes N6972 Seal Kit and Ref. 1 - 27; No Longer Available, Order H673156 Motor, See Figure 072A

2шт.

N6972

SEAL KIT

KIT; Includes Ref 8, 12, 22 - 25, 27; N6972 Seal Kit Used to Contain Seals for a 1-1/4" and a 1-1/2" Motor Shaft; Now it Only Contains the Seals for 1-1/2"; Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.

D59696

COVER

ASSEMBLY - mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cover

1шт.

2

D60861

WASHER

THRUST - cover

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

THRUST - cover

1шт.

4

D60862

NEEDLE BEARING

NEEDLE - long

1шт.

5

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

NEEDLE - short

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

Hex head, 3/8"-24 NF x 3-7/8"

7шт.

7

N9527

COVER

End

1шт.

8

N9509

SEALING RING

Housing; Replaces C18382; Included in N6972 Seal Kit

2шт.

9

N9507

SLEEVE

HOUSING - center

1шт.

D60857

COMMUTATOR

ASSEMBLY - matched, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

11

NSS

NOT SOLD SEPARAT

COMMUTATOR - rotor

1шт.

12

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

Bonded; Included in N6972 Seal Kit

1шт.

C24731

NO LONGER SERVICED

MANIFOLD AND PLATE ASSEMBLY - motor, Includes: Ref. 13 and 14; No Longer Available As An Assembly, Order Components

1шт.

13

D71235

MANIFOLD

Motor

1шт.

14

N6707

PLATE

Manifold; Replaces D71234

1шт.

N9508

ROTOR

ASSEMBLY - set, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - rotor

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - motor

7шт.

18

N9504

PLATE ASSY.

WEAR PLATE - motor

1шт.

19

D72853

SHAFT

Drive, link; 1-1/2 inch diameter

1шт.

20

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

THRUST, drive shaft

1шт.

21

D59697

SHAFT

Coupling

1шт.

22

N9703

SEAL

Inner, oil; Replaces C25048; Included in N6972 Seal Kit

1шт.

23

N6702

RING

SHIM - seal; Included in N6972 Seal Kit

1шт.

24

51200317

WASHER

Used As A Shim/Spacer; Replaces C19212; Included in N6972 Seal Kit

1шт.

25

N9702

RING, SNAP

Internal; Replaces C25049; Included in N6972 Seal Kit

1шт.

26

N9544

SEAL

Outer, dirt

1шт.

27

N8747

RING

BACKUP, teflon, seal; Included in N6972 Seal Kit

2шт.
