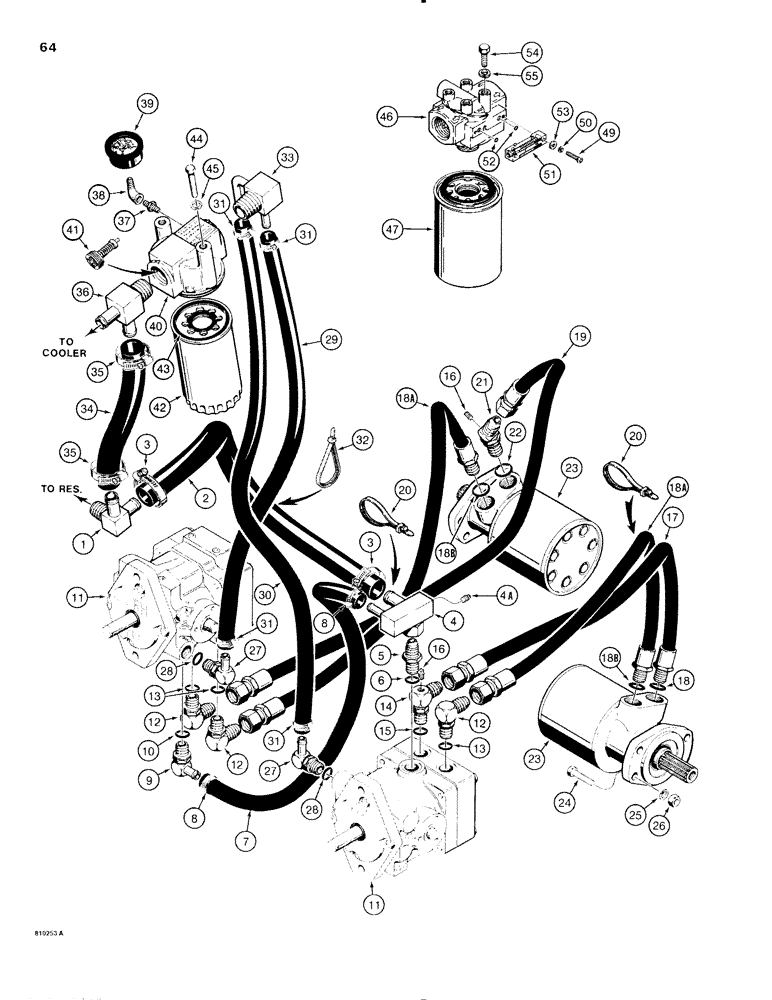

Запчасти Case 1816C (064) - DRIVE HYD. CIRCUIT, W/VERT MOUNTED FILTER, IF USED, HYD.TANK TO MOTORS TO VARIABLE DISPLACMENT PUMPS (06) - POWER TRAIN

1

D64786

FITTING

- special tee

1шт.

2

D124347

HOSE

- at hydraulic tank, 3/4" (19 mm) ID x 28" (711 mm) long

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

D63834

MANIFOLD

BARB FITTING - special

1шт.

4a

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - square socket, 1/2" NPT

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, Male, Incl. Ref 6 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

7

D64932

HOSE

- manifold to pump, 1/2" (13 mm) ID x 21-1/2" (546 mm) long

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

9

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree, hose barb, Includes: Ref. 10

1шт.

11

D75993

PUMP

- variable displacement, see Fig. 068

2шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 13

3шт.

14

D64395

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 15

1шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8" NPT

2шт.

17

D121048

HOSE ASSY.

HOSE - pump to motor, 20" (508 mm) long, Includes: Ref. 18

1шт.

18

218-507

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

O-RING - hose

1шт.

18a

D64783

HOSE

- pump to motor, 21-5/8" (550 mm) long, Includes: Ref. 18B

2шт.

18b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

19

D64000

HOSE

- pump to motor, 20" (508 mm long)

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

21

D63865

ELBOW

- special, 45 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

D120048

MOTOR, HYDRAULIC

MOTOR - hydraulic, parts list Fig. 072

2шт.

24

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

6шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

26

129-125

NUT,1/2"-20, G5

6шт.

27

D64144

STEM

ELBOW - 90 degree, barbed, Includes: Ref. 28

2шт.

29

D65486

HOSE

- at left-hand pump, 1/2" (19 mm) ID x 26" (660 mm) long

1шт.

30

D65486

HOSE

- at right-hand pump, 1/2" (19 mm) ID x 26" (660 mm) long

1шт.

31

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

33

D64266

ELBOW UNION

FITTING - special tee

1шт.

34

D124346

HOSE - 3/4" (19 mm) ID x 9" (229 mm) long

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

36

D65489

FITTING

- special tee

1шт.

37

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR - male, straight, used before tractor SN 9860625

1шт.

38

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, used before tractor S/N 9860625 90º, 1/8"-27, NPT

1шт.

39

D58835

ELECTRICAL GAUGE

GAUGE - oil pressure, used before tractor SN 9860625

1шт.

D58834

FILTER

- hydraulic oil, used before tractor SN 9860625, Includes: Ref. 40 - 43

1шт.

40

D59063

COVER

HEAD - filter, used before tractor SN 9860625, Includes: Ref. 41

1шт.

41

D59064

VALVE

- relief, used before tractor SN 9860625

1шт.

D59062

FILTER, ELEMENT

ELEMENT ASSEMBLY - filter, used before tractor SN 9860625, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

ELEMENT - filter, used before tractor SN 9860625

1шт.

43

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- element seal, used before tractor SN 9860625

1шт.

44

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used before tractor S/N 9860625 Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

45

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used before tractor S/N 9860625 1/2"

2шт.

D122363

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, with yellow element, no longer used, replace with D126665 filter assembly, Includes: Ref. 46 - 53, used on tractor SN 9860625 and after

1шт.

D126665

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, with tan element, Includes: Ref. 46 - 53, used on tractor SN 9860625 and after

1шт.

46

NSS

NOT SOLD SEPARAT

BODY - filter, used on tractor SN 9860625 and after

1шт.

47

D122401

ELEMENT

- filter, yellow, no longer used, replace with D126921 element, used on tractor SN 9860625 and after

1шт.

47

D126921

FILTER, ELEMENT

ELEMENT - filter, tan, used on tractor SN 9860625 and after

1шт.

48

NSS

NOT SOLD SEPARAT

VALVE - bypass, not shown, used on tractor SN 9860625 and after

1шт.

N7930

KIT

INDICATOR ASSEMBLY - filter, used on tractor SN 9860625 and after, Includes: Ref. 49 - 53

1шт.

49

182-563

SCREW,Cross Pan Hd, #6-32 x 3/4"

- Phillips, pan head, No. 6-32 NC x 3/4", used on tractor SN 9860625 and after

2шт.

50

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , Used on tractor S/N 9860625 and after #6

2шт.

51

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, used on tractor SN 9860625 and after

1шт.

52

N7956

O-RING

- seal, used on tractor SN 9860625 and after

2шт.

53

195-507

WASHER,#6

- flat, No. 6, plated, used on tractor SN 9860625 and after

2шт.

54

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on tractor S/N 9860625 and after Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used on tractor S/N 9860625 and after 3/8"

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
