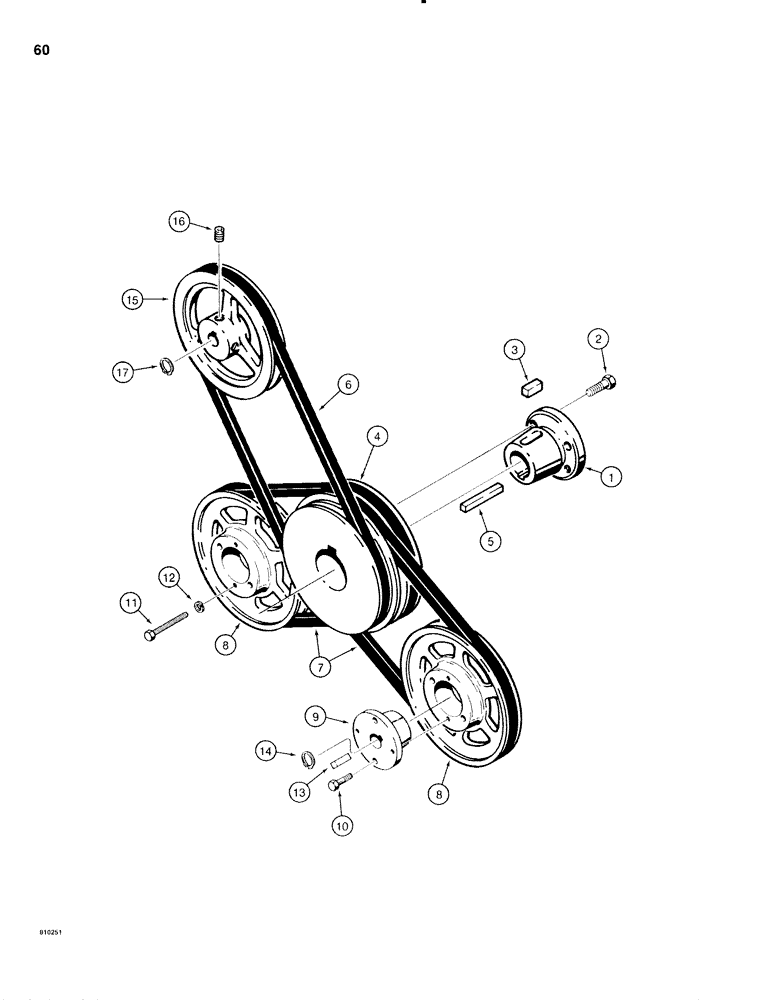

Запчасти Case 1816C (060) - SHEAVES AND DRIVE BELTS (06) - POWER TRAIN

D86091

BUSHING

ASSEMBLY - sheave, engine crankshaft, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUSHING - sheave

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

3

F10717

KEY - 3/8" x 5/16" x 3/4", Serial Range: cut-length

1шт.

4

D78551

PULLEY

SHEAVE - engine crankshaft, belt drive

1шт.

5

T25070

KEY

- square, engine, Serial Range: crankshaft-sheave

1шт.

6

D59867

V-BELT,0.38" W x 36.50" L

Engine to Equipment Pump 0.38" W x 36.50" L

1шт.

7

D60083

V-BELT,0.50" W x 33.00" L

Engine to Variable Displacement Pumps 0.50" W x 33.00" L

2шт.

8

D120024

PULLEY

SHEAVE - lower, variable displacement pumps

2шт.

D120028

BUSHING

ASSEMBLY - sheave, lower, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - sheave

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not used on LH side Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

11

113-21

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

- hex head, 1/4"-20 NC x 1-1/2", full length thread

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

D59803

KEY

- square, 3/16" x 3/16" x 1-1/8"

2шт.

14

T25683

SNAP RING,#75, Ext

Ring, Snap, , sheave, lower #75, Ext

2шт.

15

D60531

SHEAVE

- upper, equipment pump, Includes: Ref. 16

1шт.

16

178-442

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 1/2", Flat Pt

- hex socket, 5/16"-18 NC x 1/2"

2шт.

17

A11538

SNAP RING,#50, Ext

Ring, Snap, , sheave, upper #50, Ext

1шт.
