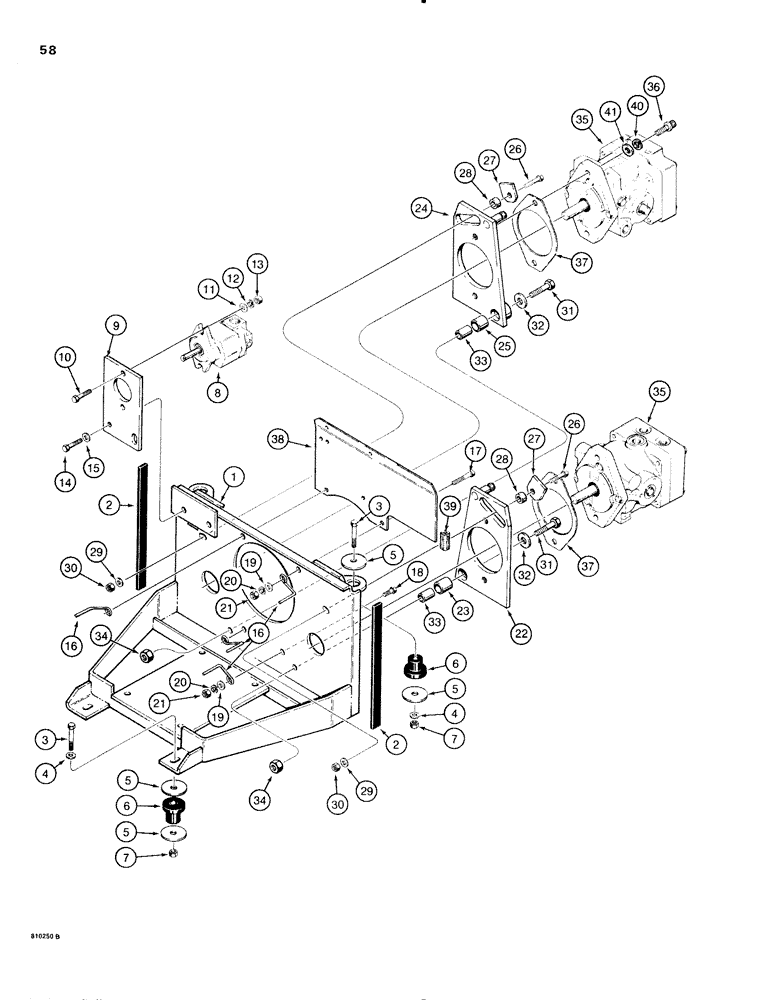

Запчасти Case 1816C (058) - PUMP MOUNTING (06) - POWER TRAIN

1

D91525

PLATE ASSY.

PLATE - pump and engine mounting

1шт.

2

D72506

PAD

STRIP - foam

2шт.

3

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex head, 7/16"-14 NC x 2-1/4", plated

4шт.

4

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 7/16", special

4шт.

5

D75196

WASHER

- hardened

8шт.

6

D59838

MOUNTING PARTS

MOUNT - rubber

4шт.

7

131-653

NUT,7/16"-14, GB

- hex, self-locking, 7/16"-14 NC

4шт.

8

D61866

PUMP

- equipment, parts list Fig. 092

1шт.

9

D61639

BRACKET

PLATE - equipment pump mounting

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

16

D77917

RETAINER

GUIDE - belt

4шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

22

D78705

PLATE

- pump mounting, right-hand, Includes: Ref. 23

1шт.

23

D78700

BUSHING

- plate

1шт.

24

D78706

PLATE ASSY.

PLATE - pump mounting, left-hand, Includes: Ref. 25

1шт.

25

D78700

BUSHING

- plate

1шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

D78665

PLATE

- wear

2шт.

28

D78664

SPACER

- wear plate

2шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

30

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-16 NC

2шт.

31

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

32

D78732

WASHER

- special

2шт.

33

D78701

BUSHING

SPACER - pump mounting plate

2шт.

34

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

35

D75993

PUMP

- variable displacment, part list Fig. 068

2шт.

36

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - 12 point, flange head, 1/2"-13 NC x 1-1/4"

4шт.

37

D81382

SPACER

SHIM - pump to plate, if used

2шт.

38

D120342

SHIELD

- heat

1шт.

39

R26404

ORNAMENTAL STRIP

TRIM - quick edge

1шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

41

A148376

WASHER

- special

4шт.
