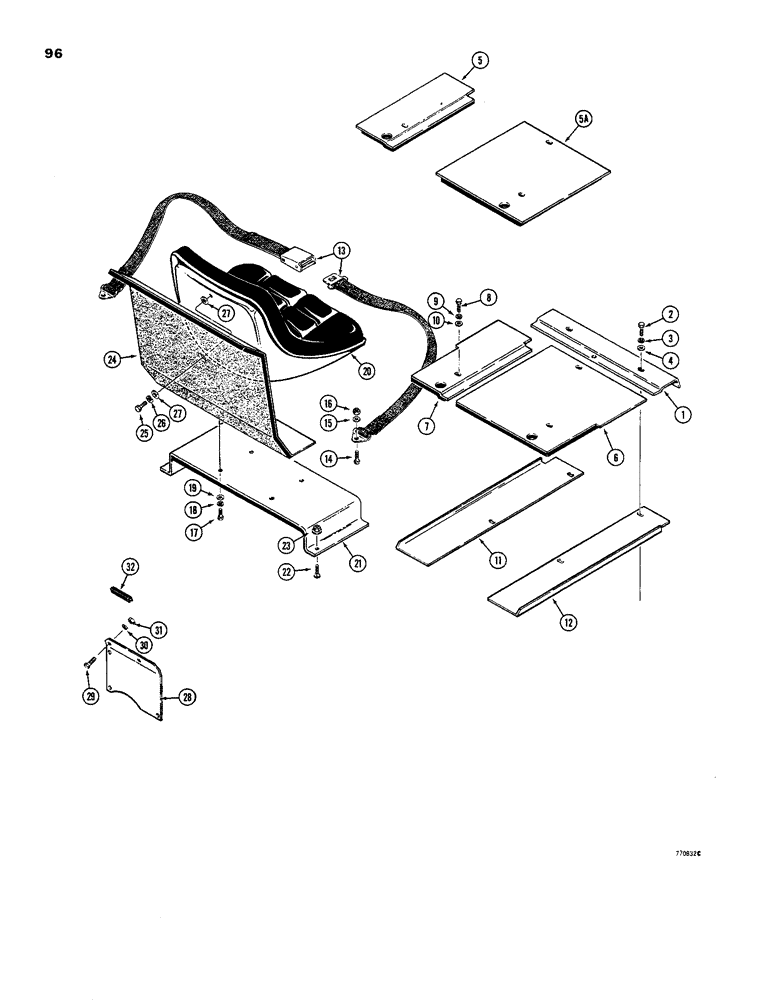

Запчасти Case 1816B (96) - SEAT, FLOOR PLATES, AND HEAT SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
D76057
PLATE ASSY.
PLATE - floor, front, not used with auxiliary hydraulics, see Figure 62, Ref. 19
1шт.
2
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
7шт.
3
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
7шт.
4
195-104
WASHER,3/8"
- flat, , plated 3/8"
7шт.
5
D87550
PLATE AND PAD - floor, L.H. rear, without brakes
1шт.
5a
D87553
PLATE AND PAD - floor, R.H. rear, without brakes
1шт.
6
D59108
PLATE
AND PAD - floor, R.H. rear, with brakes
1шт.
7
D59111
PLATE
AND PAD - floor, L.H. rear, with brakes
1шт.
8
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
9
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
10
195-104
WASHER,3/8"
- flat, , plated 3/8"
2шт.
11
D76543
COVER
- chain, L.H.
1шт.
12
D77675
COVER
- chain, R.H.
1шт.
13
D77890
SEAT
BELT ASSEMBLY - seat
1шт.
14
113-310
BOLT,Hex, 7/16" - 14 x 1", Gr 5
2шт.
15
195-529
WASHER,7/16", SAE
- flat, 7/16", plated
2шт.
18
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
19
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
2шт.
20
D58556
SEAT
- operators
1шт.
20a
N14342
GASKET
EDGE trim, for the D125141 brown seat, not shown
1шт.
21
76898
HOSE CLAMP
PLATE AND PAD - seat
1шт.
22
111-362
CARRIAGE BOLT
CARRIAGE BOLT - 3/8" - 16 NC x 1"
2шт.
23
131-916
FLANGE NUT,Flg, 3/8"-16, G5
- hex, flange, 3/8" - 16 NC
2шт.
24
D60485
SHIELD
AND PAD - heat
1шт.
26
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
27
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
2шт.
28
D73080
SHIELD
- heat, for attaching hardware see figure 38
1шт.
29
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
30
92-5
LOCK WASHER,5/16"
2шт.
31
9635082
NUT,5/16" - 18, Gr 5
2шт.
32
NSS
NOT SOLD SEPARAT
TRIM - 3" (76 mm) long, order D95462 and cut to required length, see below
1шт.
D95462
MOLDING
TRIM - 9" (229 mm) long
1шт.
Выбрано товаров: 35
