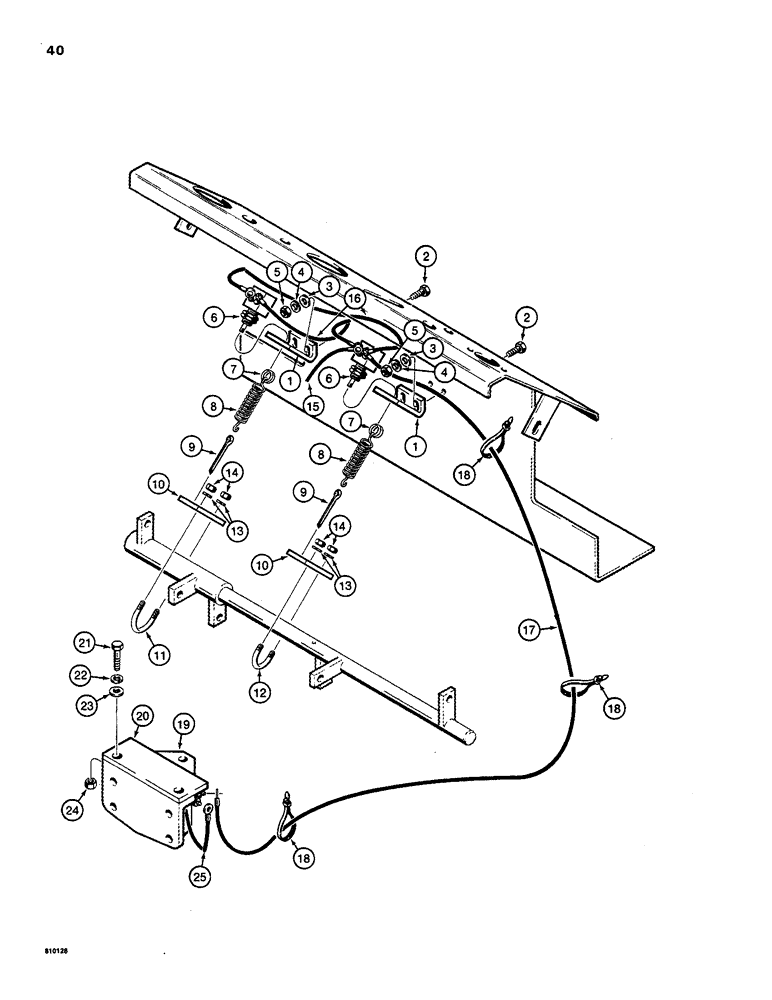

Запчасти Case 1816B (40) - BACKUP ALARM (55) - ELECTRICAL SYSTEMS

1

D90629

BRACKET

- switch

2шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

25-104

NUT,1/4"-20, G5

2шт.

6

D86365

SWITCH

- backup alarm

2шт.

7

D86363

RING

-, Serial Range: switch-spring

2шт.

8

D90627

SPRING

- switch

2шт.

9

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

2шт.

10

D90628

BAR

PLATE - spring mounting

2шт.

11

F60581

BOLT

U-BOLT - large

1шт.

12

D86366

U-BOLT

- small

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

25-104

NUT,1/4"-20, G5

4шт.

15

D91859

FUSE

WIRE - key switch to backup alarm switch

1шт.

16

D72939

ELECTRICAL WIRE

WIRE - used between backup alarm switches

2шт.

17

D86438

ELECTRICAL WIRE

WIRE - to backup alarm

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

3шт.

19

D75814

BUZZER

ALARM - backup

1шт.

20

D79987

BRACKET - backup alarm

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER - flat, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

D70125

ELECTRICAL WIRE

WIRE - backup alarm, ground

1шт.
