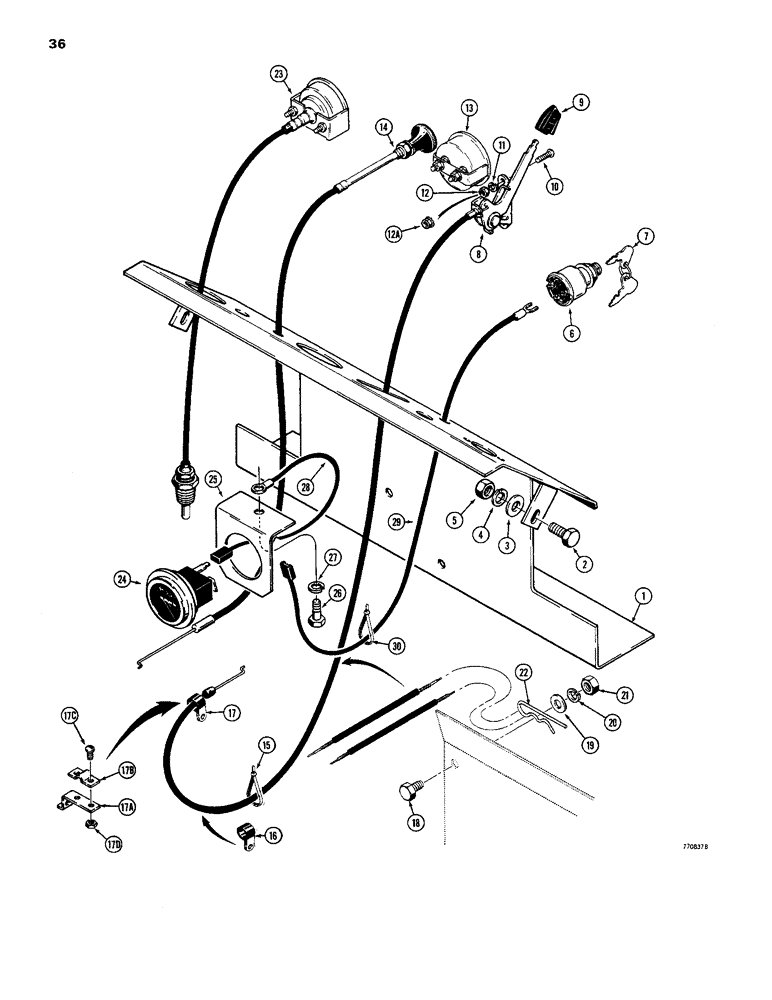

Запчасти Case 1816B (36) - INSTRUMENT PANEL, ENGINE CONTROLS, AND HOURMETER (55) - ELECTRICAL SYSTEMS

1

D85834

PANEL, INSTRUMENTS

PANEL - instrument

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

D90956

SWITCH

- ignition, replaces D77344 switch, Includes: Ref. 7

1шт.

7

D36822

KEY

- ignition, set of two

1шт.

8

D79756

THROTTLE

ASSEMBLY - engine

1шт.

9

C12224

HANDLE

KNOB - throttle

1шт.

10

163-15

SCREW,Hex, #10 - 24 x 5/8"

BOLT - hex head, No. 10 - 24 NC x 5/8", slotted, plated

2шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, , Not used with Ref. 12A #10

2шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, if used, see Ref. 12A

2шт.

12a

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - special lock, No. 10 - 24 NC, if used

2шт.

13

D56643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

14

D57409

CABLE

ASSEMBLY - choke

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

16

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- throttle cable

1шт.

17

T41928

CLAMP,3/16", Insul, 1/4" Bolt

- throttle cable, near end, not used when 17A and 17B are used

1шт.

17a

D81286

BRACKET

- clamp, throttle cable, if used

1шт.

17b

D81500

CLAMP

- cable, if used

1шт.

17c

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- No. 24 NC x 7/16"

2шт.

17d

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - lock, No. 10 - 24 NC

2шт.

18

1130102

BOLT - hex head, 5/16" - 18 NC x 3/4"

1шт.

19

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - guide

1шт.

23

D58127

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

24

D53047

GAUGE

HOURMETER - electric

1шт.

25

D64522

BRACKET

- hourmeter mounting

1шт.

26

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

76774

CHAIN GUIDE

WIRE -, Serial Range: hourmeter-ground

1шт.

29

D78020

WIRE - hourmeter to ignition switch

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

3шт.
