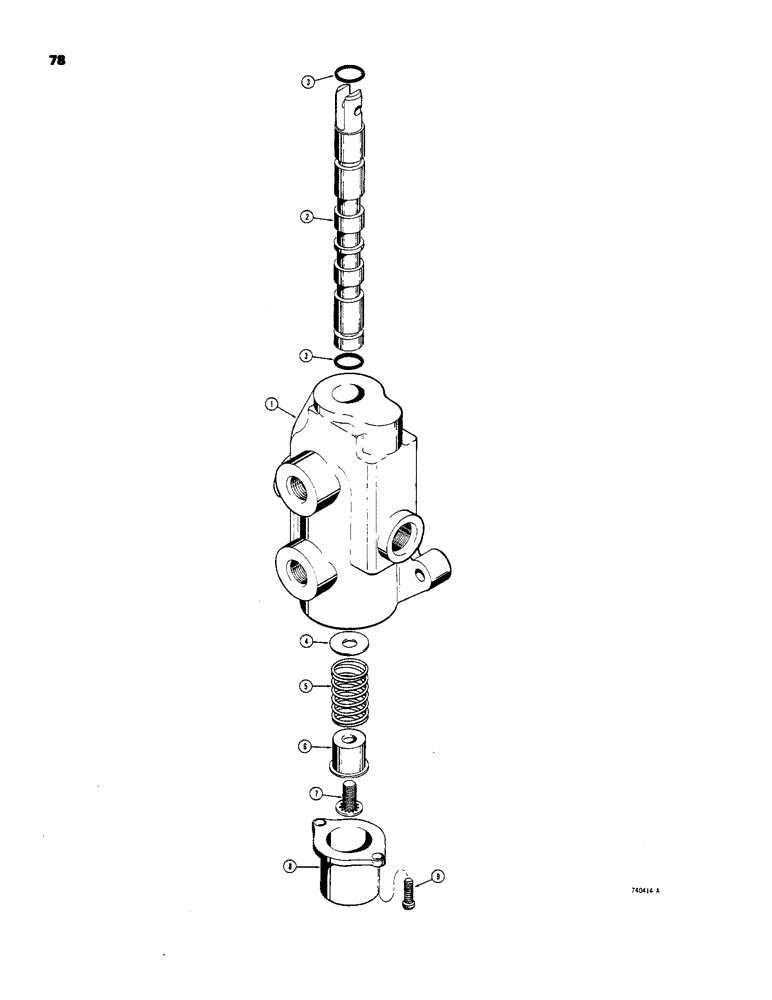

Запчасти Case 1816B (78) - D75216 AUXILIARY HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D75216

VALVE

CONTROL VALVE ASSEMBLY - one spool, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool seal

2шт.

C18846

KIT

- centering spring, Includes: Ref. 4 - 8

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

5

C18850

VALVE SPRING

CENTERING SPRING - spool

1шт.

6

C13200

SPACER

SEAT - spring

1шт.

7

193-524

SCREW AND LOCK WASHER - slotted round head, external tooth, No. 10 - 32 NC x 3/8", plated SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

8

C18847

CAP

- spool

1шт.

9

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

- round head, fillister slotted, no. 12 - 24 NC x 3/8"

2шт.
