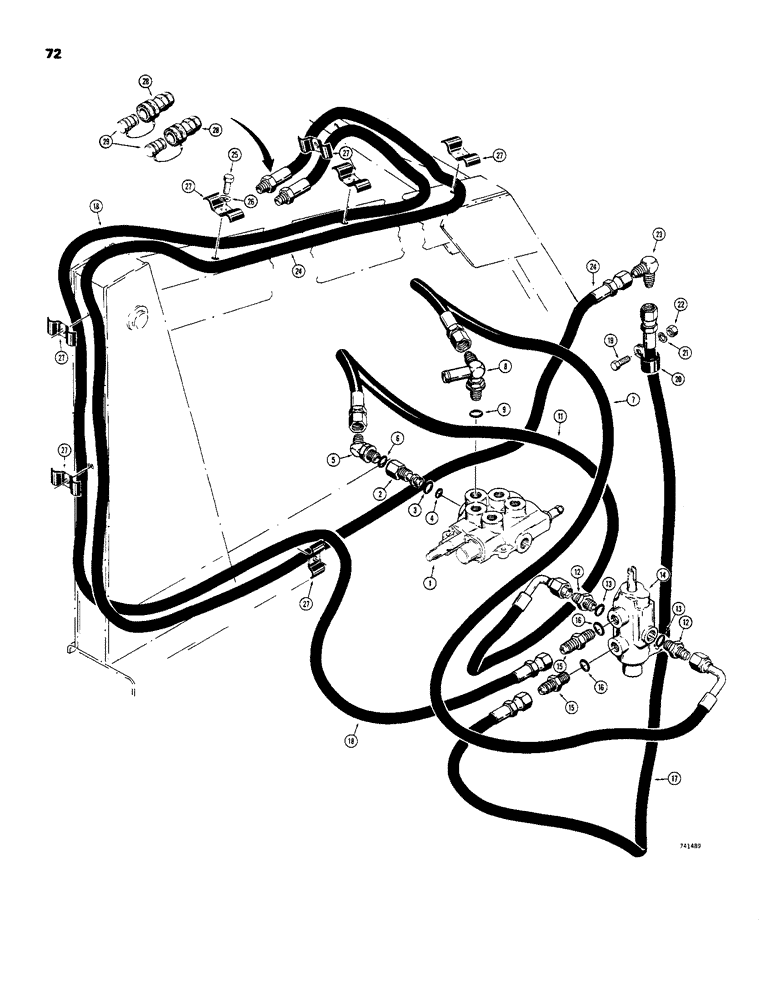

Запчасти Case 1816B (72) - AUXILIARY HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - loader control, parts list Figure 74 or 76
1шт.
2
D61619
CONNECTOR, ELEC
SLEEVE - connector, power beyond, Includes: Ref. 3 and 4
1шт.
3
A30097
O-RING,0.549" ID x 0.755" OD x 0.103"
- large
1шт.
4
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- small
1шт.
5
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degree, adjustable, male, Incl. Ref 6
1шт.
7
D65682
HOSE
ASSEMBLY - 38" (965 mm) long
1шт.
8
D60793
FITTING
TEE - special, Includes: Ref. 9
1шт.
11
D65682
HOSE
- hydraulic
1шт.
12
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
CONNECTOR - straight, Includes: Ref. 13
2шт.
13
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, connector
1шт.
14
D75216
VALVE
- auxiliary, parts list Figure 78
1шт.
15
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
CONNECTOR - straight, male, Incl. Ref. 16
2шт.
16
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, connector
1шт.
17
D62398
HOSE
- hydraulic, at valve, lower port, 22" (559 mm) long
1шт.
18
D64488
HOSE
- hydraulic, at valve, upper port, 169" (4293 mm) long
1шт.
19
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
20
C15525
CLIP
CLAMP - hose
1шт.
21
92-5
LOCK WASHER,5/16"
1шт.
22
9635082
NUT,5/16" - 18, Gr 5
1шт.
23
218-473
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC
- 90 degree, male
1шт.
24
D62399
HOSE
- hydraulic, to valve, lower port, 144" (3658 mm) long
1шт.
25
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
8шт.
26
92-5
LOCK WASHER,5/16"
8шт.
27
R17319
CLAMP
- hose
8шт.
28
D60707
COUPLING, BREAK AWAY
COUPLING - quick disconnect, female
2шт.
29
D62402
PLUG
- dust
2шт.
6
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- elbow
1шт.
9
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- tee
1шт.
Выбрано товаров: 28
