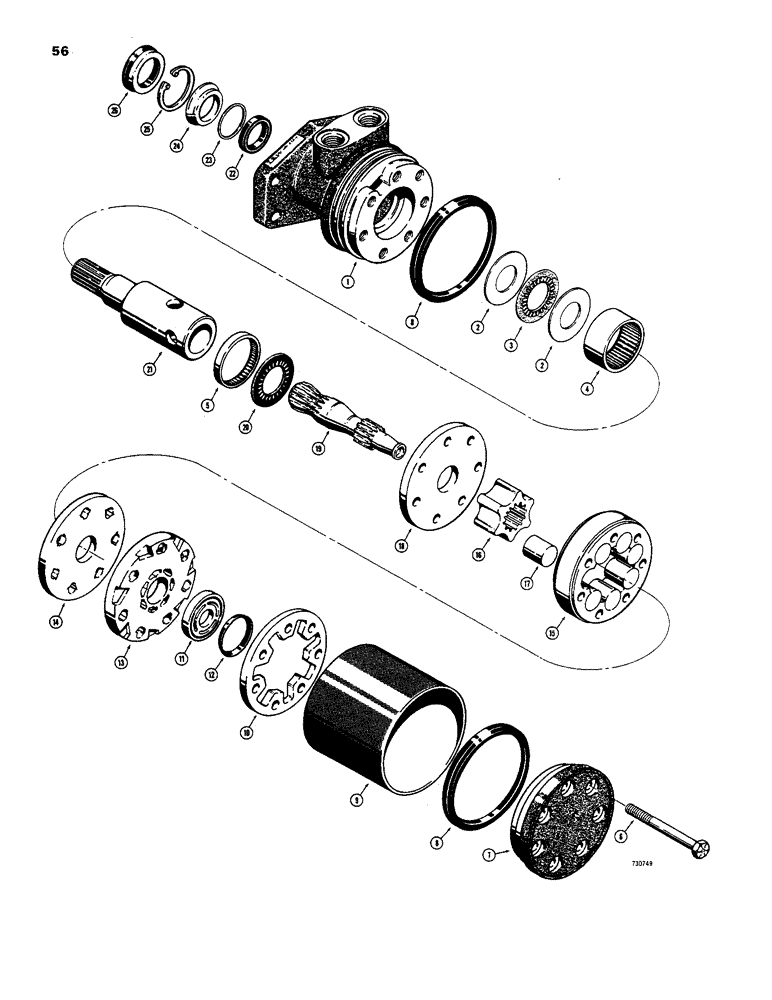

Запчасти Case 1816B (56) - D120048 HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

D120048

MOTOR, HYDRAULIC

MOTOR - hydraulic, MAB 16041 identification number, Includes: Ref. 1 - 26

2шт.

For motor identification see name plate on motor. See other interchangeable motor on figure 55.

1шт.

D59696

COVER

ASSEMBLY - mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cover

1шт.

2

D60861

WASHER

THRUST WASHER - cover

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

- cover

1шт.

4

D60862

NEEDLE BEARING

- long

1шт.

5

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

- short

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

- hex head, 3/8" - 24 NF x 3-7/8"

7шт.

7

C14837

COVER

- end

1шт.

8

C18382

RING

SEAL - housing

2шт.

Part of Seal Kit P/N N6972

1шт.

9

C18092

SLEEVE

HOUSING - center

1шт.

D60857

COMMUTATOR

ASSEMBLY - matched, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

11

NSS

NOT SOLD SEPARAT

COMMUTATOR - rotor

1шт.

12

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

- bonded

1шт.

Part of Seal Kit P/N N6972

1шт.

C24731

NO LONGER SERVICED

MANIFOLD AND PLATE ASSEMBLY - motor, Includes: Ref. 13 and 14

1шт.

13

D71235

MANIFOLD

- motor

1шт.

14

D71234

PLATE ASSY.

PLATE - manifold

1шт.

C18110

ROTOR

ASSEMBLY - set, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - rotor

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - motor

7шт.

18

C14830

PLATE

WEAR PLATE - motor

1шт.

19

D72853

SHAFT

- drive, link

1шт.

20

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

- drive shaft

1шт.

21

D59697

SHAFT

- coupling

1шт.

22

N9703

SEAL

- inner, oil

1шт.

Part of Seal Kit P/N N6972

1шт.

23

N9516

SHIM

SPACER - seal

1шт.

Part of Seal Kit P/N N6972

1шт.

24

N6702

RING

SHIM - seal

1шт.

Part of Seal Kit P/N N6972

1шт.

25

N9702

RING, SNAP

SNAP RING - internal

1шт.

Part of Seal Kit P/N N6972

1шт.

26

N9544

SEAL

- outer, dirt

1шт.

Part of Seal Kit P/N N6972

1шт.

N6972

SEAL KIT

KIT - seal, Includes: Ref. 8, 12, 22 - 25 and 26; N6972 Seal Kit Used to Contain Seals for a 1-1/4" and a 1-1/2" Motor Shaft; Now it Only Contains the Seals for 1-1/2"; Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.

Ref #26A - N8747 Back-Up Ring for Ref #26

1шт.
