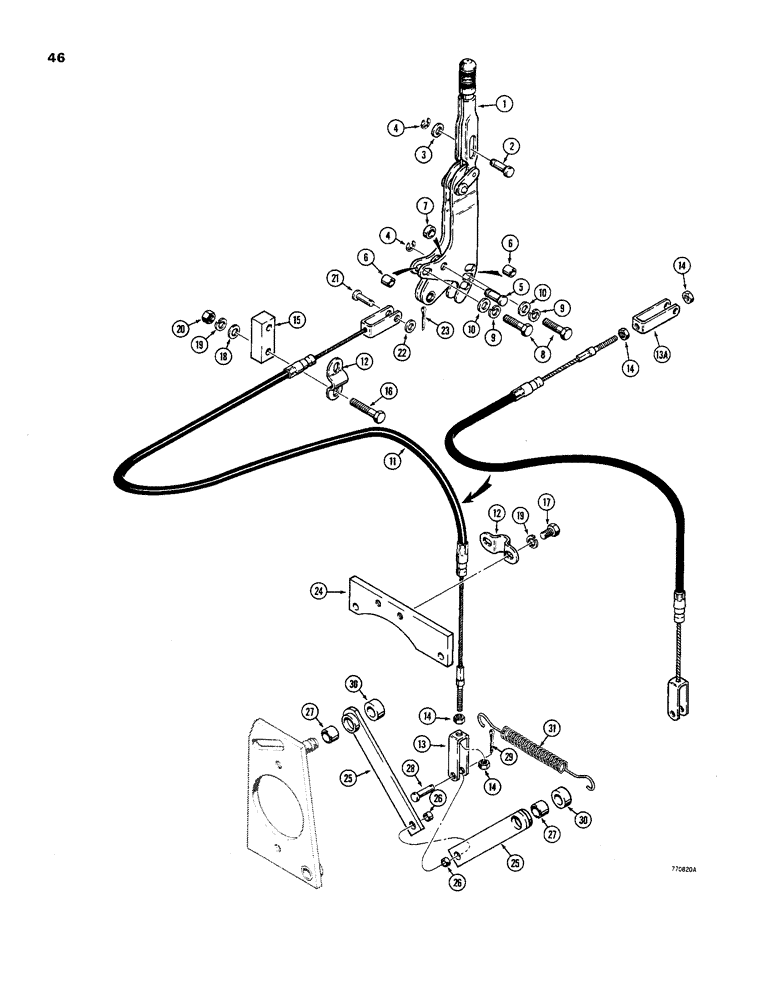

Запчасти Case 1816B (46) - BELT TENSION CONTROLS (16) - TRACTION VARIATOR

D78070

LEVER

ASSEMBLY - belt clutch, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - belt clutch

1шт.

2

D47260

PIN

- lever, upper

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

4

C14652

RING

- retaining

2шт.

5

D78424

AXLE PIN

PIN - lever, lower

1шт.

6

D78425

SPACER

- long

2шт.

7

D54794

SPACER

- short

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

D77922

CABLE

ASSEMBLY - control, adjusts at rear links, Includes: Ref. 11 - 14

1шт.

D92238

CABLE ASSY.

CABLE ASSEMBLY - control, adjusts at lever, if used, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE - control

1шт.

12

A55980

CLAMP

- cable

2шт.

13

D78423

CLEVIS

- D77922 cable only

1шт.

13a

N6913

CLEVIS - D92238 cable only

1шт.

14

129-122

NUT,5/16"-24, G5

2шт.

15

D77920

PLATE

- spacer

1шт.

16

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

23

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

24

D77919

PLATE

- cable mounting, for attaching hardware see figure 44

1шт.

D78231

LINK ASSY.

LINK ASSEMBLY - control, Includes: Ref. 25 - 27

2шт.

25

NSS

NOT SOLD SEPARAT

LINK - control

1шт.

26

D78229

BUSHING

- small

1шт.

27

D78233

BUSHING

- large

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated - cable to link 5/16" x .940"

1шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

D78234

BUSHING

SPACER - link

2шт.

31

D87789

SPRING

- tension

1шт.
