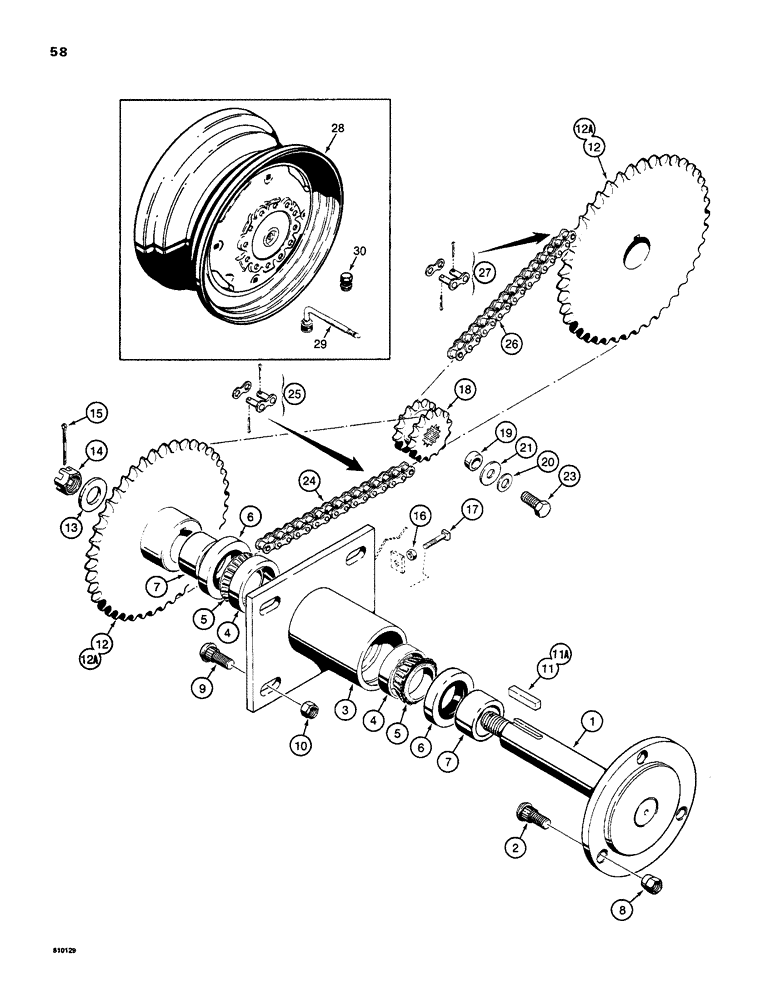

Запчасти Case 1816B (58) - AXLES AND DRIVE CHAINS, WHEELS (14) - MAIN GEARBOX & DRIVE

D76714

SHAFT

AXLE ASSEMBLY - used with Ref. 11 and 12, Includes: Ref. 1 and 2

4шт.

D120352

SHAFT

AXLE ASSEMBLY - used with Ref. 11A and 12A, Includes: Ref. 1 and 2

4шт.

1

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

2

D91709

WHEEL BOLT

BOLT - special, wheel

3шт.

D57755

HUB

ASSEMBLY, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

4

H751370

BEARING CUP

BEARING - cup

2шт.

5

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

BEARING ASSEMBLY - cone

2шт.

6

D56800

SEAL

- grease

2шт.

7

D56799

SPACER

- bearing

2шт.

8

F23214

WHEEL NUT

- special, wheel

12шт.

9

E16592

WHEEL BOLT

BOLT - special, 1/2" - 20 NF x 1-7/8"

16шт.

10

131-915

FLANGE NUT,Flg, 1/2"-20, G5

- hex, self-locking, 1/2" - 20 NF

16шт.

11

A29408

KEY

- square, 3/8" x 1-1/4", used with D76714 Axle and D76462 Sprocket

4шт.

11a

D93645

KEY

- square, 3/8" x 1.72", used with D120352 Axle and D120138 Sprocket

4шт.

12

D76462

DRIVE SPROCKET

SPROCKET - driven, used with D76714 Axle and A29408 Key

4шт.

12a

D120138

DRIVE SPROCKET

SPROCKET - driven, used with D120352 Axle and D93645 Key

4шт.

13

195-549

WASHER,7/8", SAE

- flat, 7/8", zinc, plated

8-1шт.

14

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF

4шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

17

181-650

SET SCREW,Sq Hd, 3/8"-16 x 1 3/4"

- square head, 3/8" - 16 NC x 1-3/4"

4шт.

18

D76459

DRIVE SPROCKET

SPROCKET - drive

2шт.

19

D60602

SPACER

- sprocket

2шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

21

95-8

WASHER,1/2"

flat 1/2"

2шт.

22

B17068

ADHESIVE

- locktite, No. 242.6 ml, used with Ref. 23, not shown

2шт.

23

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

2шт.

D56647

CHAIN (CE)

CHAIN - No. 60, R.H. rear and L.H. front, Includes: Ref. 24 and 25

2шт.

24

NSS

NOT SOLD SEPARAT

CHAIN - No. 60

1шт.

25

D66284

LINK,19.05mm Pitch

ASSEMBLY - link, clip and cotter pins

1шт.

D56648

CHAIN (CE)

CHAIN - No. 60, R.H. front and L.H. rear, Includes: Ref. 26 and 27

2шт.

26

NSS

NOT SOLD SEPARAT

CHAIN - No. 60

1шт.

27

D66284

LINK,19.05mm Pitch

ASSEMBLY - link, clip and cotter pins

1шт.

28

D58595

WHEEL

- rim, 27 x 8.50 x 15" tire only

4шт.

28

D56868

WHEEL

- rim, 5.70 and 5.90 x 15" tires

4шт.

29

D48692

VALVE

STEM - tubeless wheels only

4шт.

30

N7178

PLUG

- rim hole, if used

4шт.

Can be used to plug valve stem hole when reversing D59595 rims to alter tread width and valve stems are installed on other side.

1шт.
