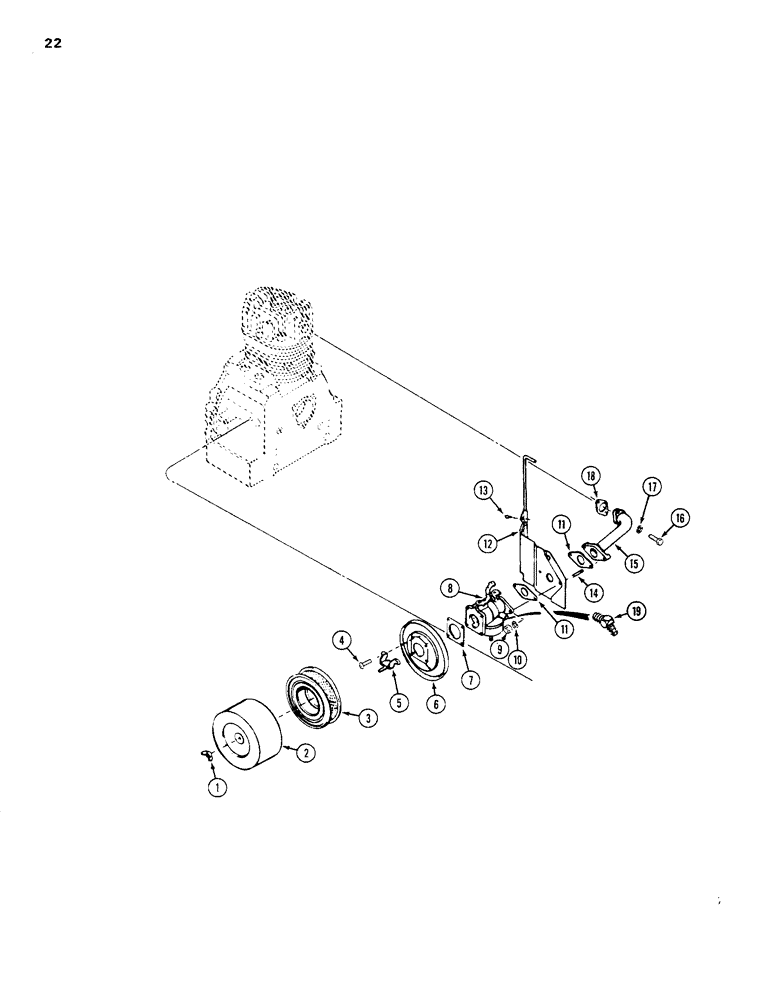

Запчасти Case 1816B (22) - ENGINE, FUEL SYSTEM AND AIR CLEANER (10) - ENGINE

1

D80334

NUT, WING

WING NUT - wing, 1/4" - 20 NC

1шт.

2

D59462

COVER

- air cleaner

1шт.

3

D66337

AIR CLEANER

ELEMENT - air cleaner

1шт.

See Figure 24 for heavy duty air cleaner.

1шт.

4

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- fillister head, No. 10 - 32 NC x 5/8"

4шт.

5

D59461

BRACKET

- cover retaining

1шт.

6

D59460

PLATE

- air cleaner

1шт.

7

D59459

GASKET

- air cleaner

1шт.

8

REF

INSTRUCTION

CARBURETOR - fuel, parts list Figure 28

1шт.

9

129-122

NUT,5/16"-24, G5

If used, see Ref. 14A 5/16"-24, G5

2шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

11

D59422

GASKET

- carburetor

2шт.

12

D66422

BAFFLE

- air extension

1шт.

13

REF

INSTRUCTION

SCREW - self-tapping, washer head, 1/4" - 20 NC x 5/8", use 182-509 screw and 193-7 washer

1шт.

14

D59421

STUD

- carburetor mounting, if used, see item 14A

2шт.

14a

71-518

SCREW - fillister head, 5/16" -18 NC x 1-1/8", if used, not shown

2шт.

15

D59420

TUBE

PIPE - intake

1шт.

16

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

17

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

18

D59419

GASKET

- intake pipe

1шт.

19

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.
