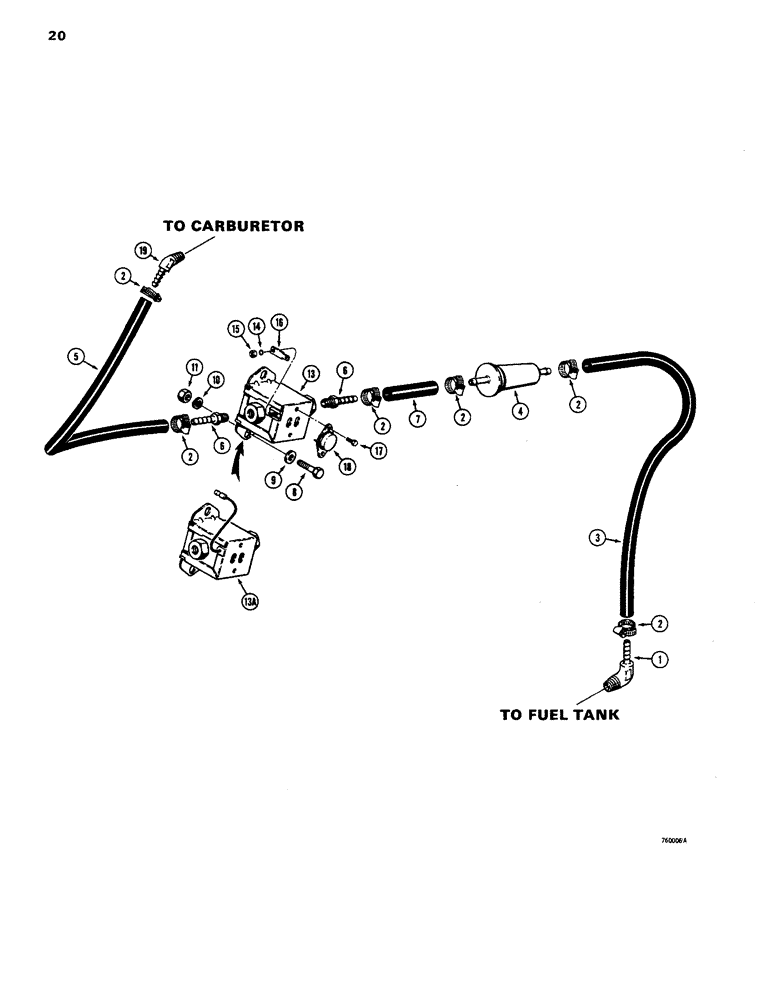

Запчасти Case 1816B (20) - FUEL LINES AND FUEL PUMP (10) - ENGINE

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, hose barb

1шт.

2

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - worm screw type

6шт.

3

D72349

FUEL HOSE,0.25" ID x 20.00", SAE 30R6 or SAE 30R7

1шт.

4

D59949

FILTER

- fuel

1шт.

5

D53521

FUEL HOSE

HOSE - 1/4" (6 mm) ID x 12-1/2" (318 mm)

1шт.

6

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

CONNECTOR - hose barb, straight

2шт.

7

D72352

FUEL HOSE,6.40 mm ID x 50.80 mm, SAE 30R6 or SAE 30R7

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

D72347

PUMP

- fuel, electric, has stud terminal with terminal blade, used with Ref. 33 on figure 34

1шт.

D93954

PUMP

- fuel electric, has lead wire with male connector, used with Ref. 33A on figure 34, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - D72347 fuel pump

1шт.

13a

NSS

NOT SOLD SEPARAT

BODY - D93954 fuel pump

1шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

15

129-16

NUT,#8-32

1шт.

16

223-450

TERMINAL CONNECTOR

TERMINAL - blade

1шт.

17

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

BOLT - hex head, No. 6 - 32 NC x 3/8"

2шт.

18

D72785

TRANSISTOR

- fuel pump

1шт.

19

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.
