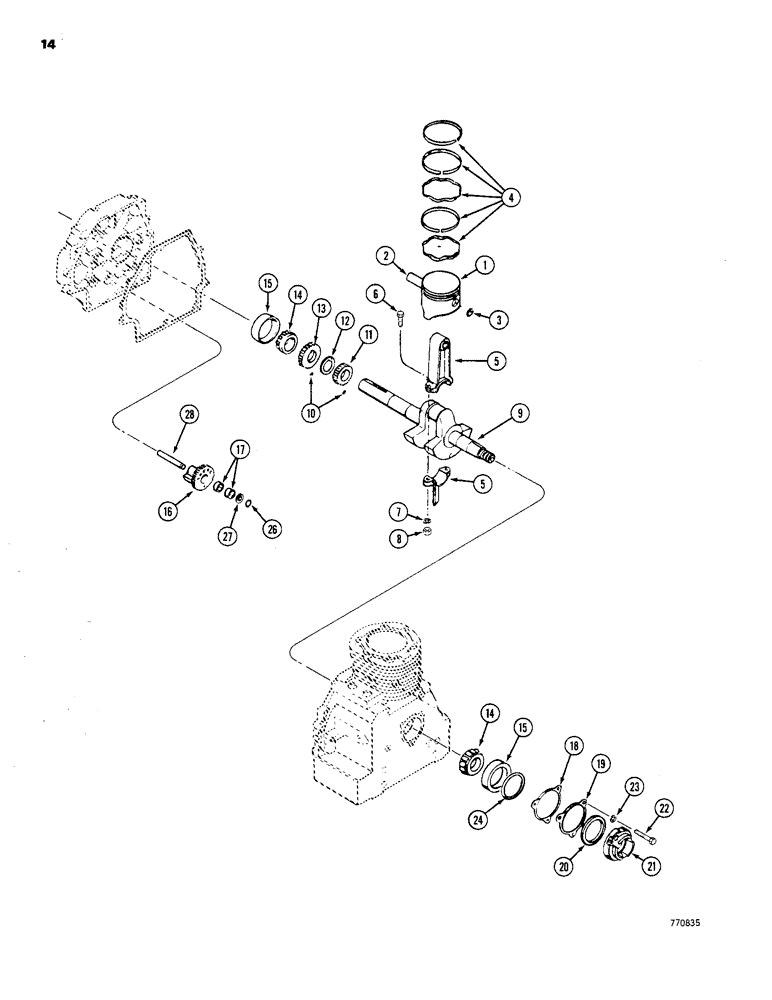

Запчасти Case 1816B (14) - CRANKSHAFT, PISTON, CONNECTING ROD, AND WEIGHT (10) - ENGINE

D80324

PISTON

KIT - standard, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - standard

1шт.

2

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: rod-piston

1шт.

3

D59601

RING

- retaining

2шт.

4

D59388

RING

SET - piston, standard

1шт.

D80325

PISTON

KIT - .010" (0.254 mm) oversize, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - .010" (0.254 mm) oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: rod-piston

1шт.

3

D59601

RING

- retaining

2шт.

4

D59389

RING

SET - piston, .010" (0.254 mm) oversize

1шт.

D80326

PISTON

KIT - .020" (0.508 mm) oversize, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - .020" (0.508 mm) oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: rod-piston

1шт.

3

D59601

RING

- retaining

2шт.

4

D59390

RING

SET - piston, .020" (0.508 mm) oversize

1шт.

D80327

SPARE PART

PISTON KIT - .030" (0.762 mm) oversize, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - .030" (0.762 mm) oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: rod-piston

1шт.

3

D59601

RING

- retaining

2шт.

4

D59391

PISTON RING SET

RING SET - piston, .030" (0.762 mm) oversize

1шт.

D80328

SPARE PART

PISTON KIT - .040" (1.016 mm) oversize, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - .040" (1.016 mm) oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: piston-rod

1шт.

3

D59601

RING

- retaining

2шт.

4

D59392

RING, SET

RING SET - piston, .040" (1.016 mm) oversize

1шт.

D59393

ROD

CONNECTING ROD ASSEMBLY - piston, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTING ROD - piston

1шт.

6

D59602

BOLT

- special

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- special

2шт.

8

131-527

LOCK NUT,5/16"-24

NUT - hex, lock, 5/16" x 24 NF

2шт.

D71501

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

10

C15830

PIN

- gear, crankshaft

2шт.

11

D59597

GEAR

- crankshaft

1шт.

12

D59600

SPACER

- gear

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - counterbalance, use D66451 kit

1шт.

Part of Counterbalance Kit P/N D66451

1шт.

14

D59598

TAPERED BEARING

- crankshaft

2шт.

15

D59595

TAPERED BEARING

CUP - tapered roller bearing

2шт.

NSS

NOT SOLD SEPARAT

COUNTERBALANCE ASSEMBLY - weight, use D66451 kit

2шт.

Part of Counterbalance Kit P/N D66451

1шт.

16

NSS

NOT SOLD SEPARAT

WEIGHT - counterbalance

1шт.

17

D59606

BEARING

NEEDLE BEARING - weight

2шт.

18

D59587

SHIM,.0035" Thk

Gasket (0.089 mm) .0035" Thk

1шт.

19

D59588

SHIM

- gasket, .005" to .007" (0.127 mm to 0.178 mm) thick

1шт.

20

D59589

BUSHING

SPACER - seal, .010" (0.254 mm) thick

1шт.

21

D59582

COVER

- crankshaft

1шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

3шт.

24

D59433

SEAL

O-RING - crankshaft seal

1шт.

25

RESERVED

1шт.

26

A11538

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

2шт.

27

D59572

WASHER

- thrust

2шт.

28

D59605

SHAFT

- counterbalance

2шт.

D66451

KIT

- counterbalance, Includes: Ref. 13 and the weight counterbalance assembly that is shown as NSS following Ref. 15

1шт.
