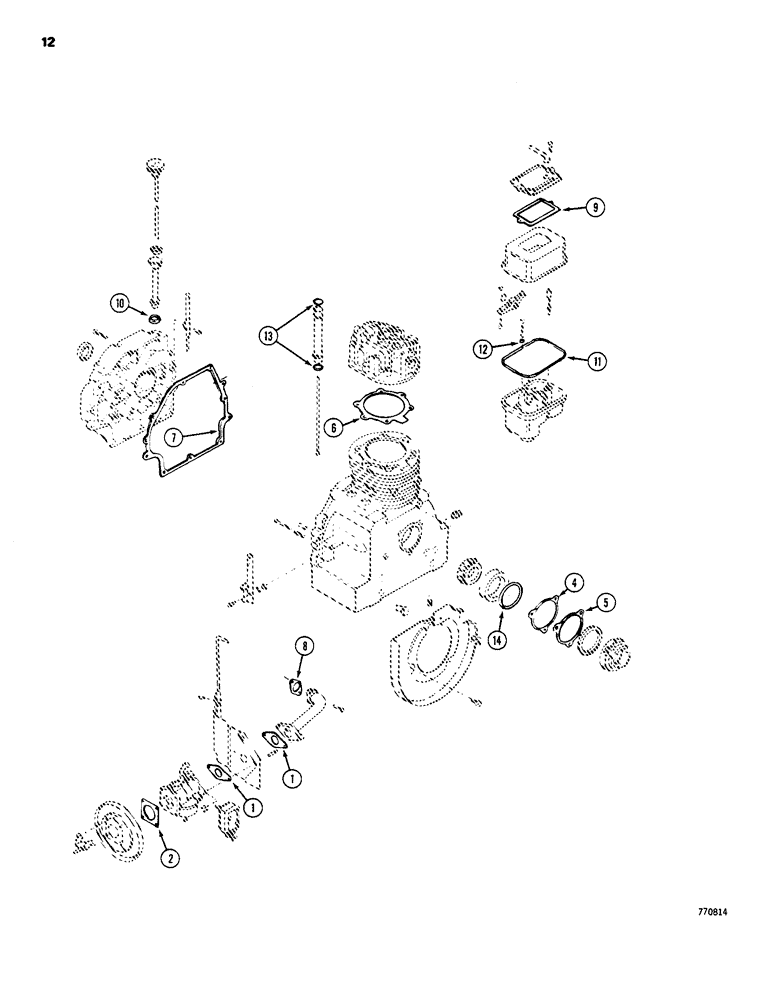

Запчасти Case 1816B (12) - ENGINE GASKET KIT (10) - ENGINE

D59593

GASKET KIT

KIT - gasket, Includes Ref. 1 - 14

1шт.

1

D59422

GASKET

- carburetor mounting

2шт.

2

D59459

GASKET

- air cleaner mounting

1шт.

4

D59587

SHIM,.0035" Thk

Gasket (0.089 mm) .0035" Thk

2шт.

5

D59588

SHIM

- gasket, .005" to .007" (0.127 mm to 0.178 mm) thick

1шт.

6

N6520

GASKET

- cylinder head

1шт.

7

D59409

GASKET

- cylinder cover

1шт.

8

D59419

GASKET

- intake pipe

1шт.

9

59456

GASKET - breather, valve

1шт.

10

C15979

GASKET

- oil filler tube

1шт.

11

D59454

O-RING

- valve cover

1шт.

12

D59447

O-RING

- valve body

3шт.

13

D59443

O-RING

- push rod tube

4шт.

14

D59433

SEAL

O-RING - crankshaft

1шт.
