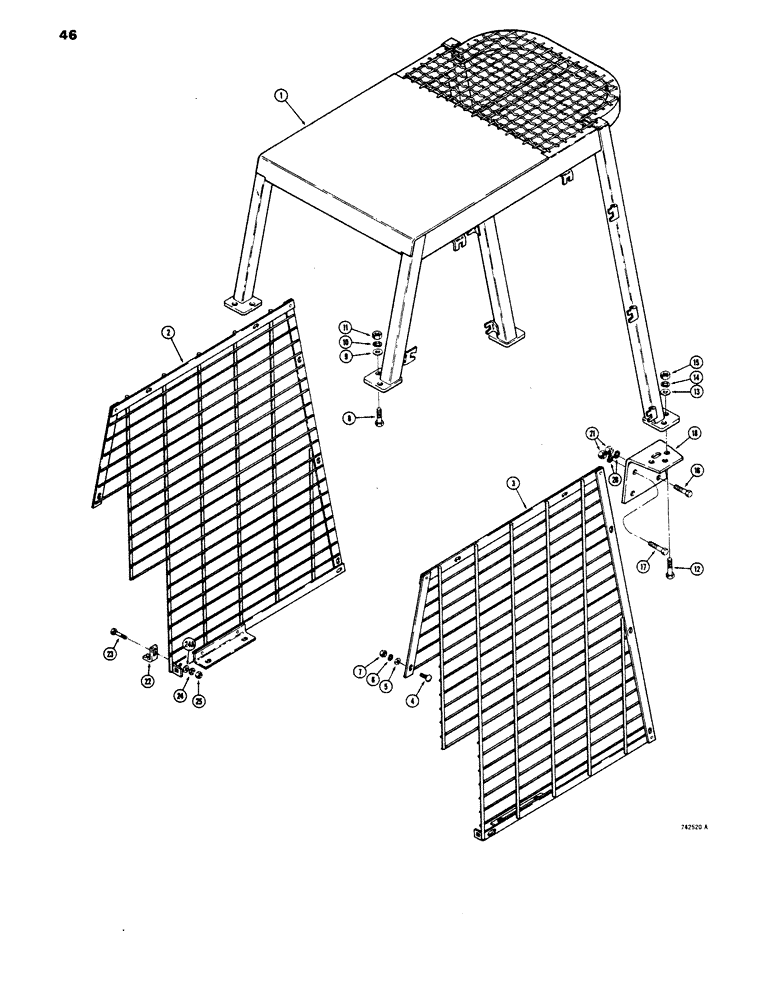

Запчасти Case 1816 (46) - ROLL-OVER PROTECTION STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93430

ROPS

ROLL-OVER PROTECTION STRUCTURE Uni-Loader

1шт.

2

F93849

SCREEN

L.H.

1шт.

3

F93848

WINDOW

SCREEN R.H.

1шт.

4

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

12шт.

5

195-521

WASHER,5/16", SAE

plain, plated, 5/16"

12шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

7

9635082

NUT,5/16" - 18, Gr 5

12шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

195-533

WASHER,1/2", SAE

plain, plated, 1/2"

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

HHCS plated, 1/2" - 13 NC x 1-1/2"

4шт.

18

F42600

PLATE

reinforcement, outer

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

22

NLS

NO LONGER SERVICED

angle

2шт.

23

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24a

195-21

WASHER,5/16"

- flat, plated, 5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

26

R5753

ENCLOSURE vinyl, not shown, yellow

1шт.

26

R25606

ENCLOSURE vinyl, not shown, black

1шт.
