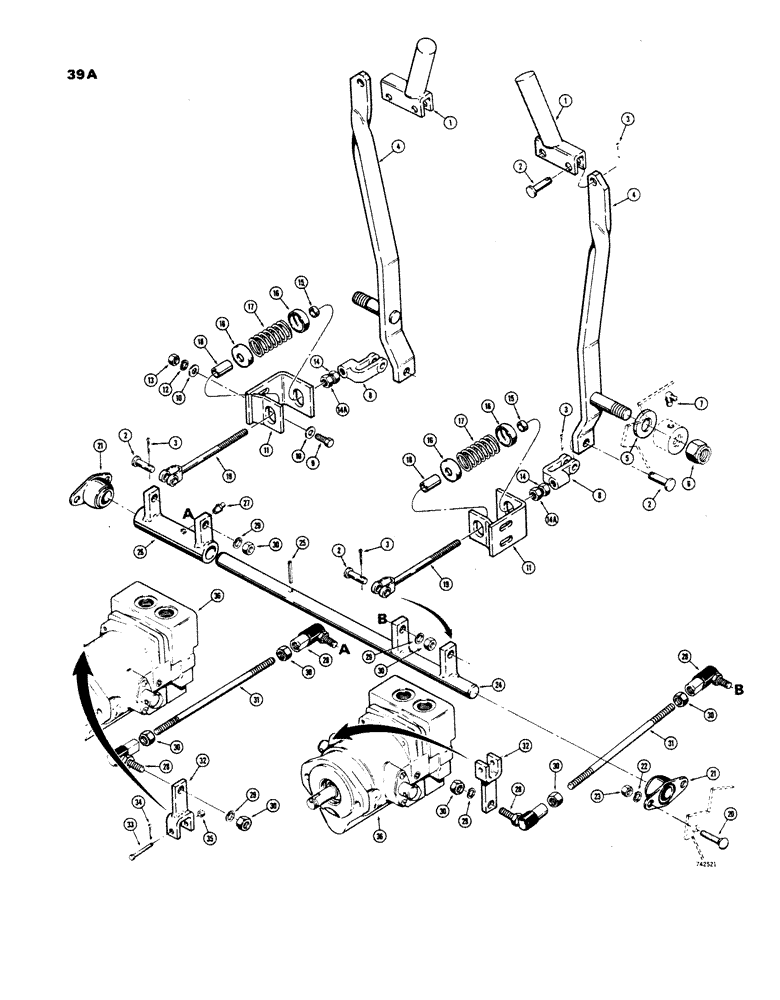

Запчасти Case 1816 (39A) - CONTROLS, FORWARD AND REVERSE, USED TRACTOR SERIAL NO. 9821352 THRU 9826659 (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
D56613
HANDLE
control
2шт.
2
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
6шт.
3
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
6шт.
4
D57097
HANDLE
LEVER control
2шт.
5
195-45
WASHER,3/4"
2шт.
6
131-83
NUT,3/4"-10
NUT hex, lock, 3/4" - 10 NC
2шт.
7
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
2шт.
8
L11182
YOKE,3/8" - 24
clevis
2шт.
9
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
10
195-25
WASHER,3/8"
flat, 3/8"
1шт.
11
D60122
RETAINER
spring
2шт.
12
92-6
LOCK WASHER,3/8"
4шт.
13
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
4шт.
14
25-116
NUT,Hex, 3/8"-24, G5
hex, jam, 3/8" - 24 NF
2шт.
14a
131-5
LOCK NUT,3/8"-16, GB
NUT hex, lock, 3/8" - 24 NF
2шт.
15
D95551
BUSHING
SPACER short
2шт.
16
D63156
SPRING CUP
CUP spring guide
4шт.
17
D57300
SPRING
rod return
2шт.
18
D53393
SPACER
long
2шт.
19
R13752
ROD
pump control
2шт.
21
L48412
FLANGED BEARING
BEARING shaft support
2шт.
22
92-6
LOCK WASHER,3/8"
4шт.
23
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
4шт.
24
D60125
SHAFT pump linkage, inner
1шт.
25
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
1шт.
26
D60126
CONTROL
SHAFT pump linkage, outer
1шт.
27
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING grease, straight, 1/8" NPT
1шт.
28
D38296
JOINT
ball
4шт.
29
92-6
LOCK WASHER,3/8"
4шт.
30
25-116
NUT,Hex, 3/8"-24, G5
hex, 3/8" - 24 NF
8шт.
31
D57104
ROD
pump control
2шт.
32
D57080
LINK
AGE pintle
2шт.
33
D59243
BOLT
HHCS, 1/4" - 20 NC x 1-1/2"
2шт.
34
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
35
131-2
NUT,1/4"-20, GB
NUT hex, lock, 1/4" - 20 NC
2шт.
36
D65642
PUMP
variable displacement, See Figure 60
2шт.
Выбрано товаров: 37
