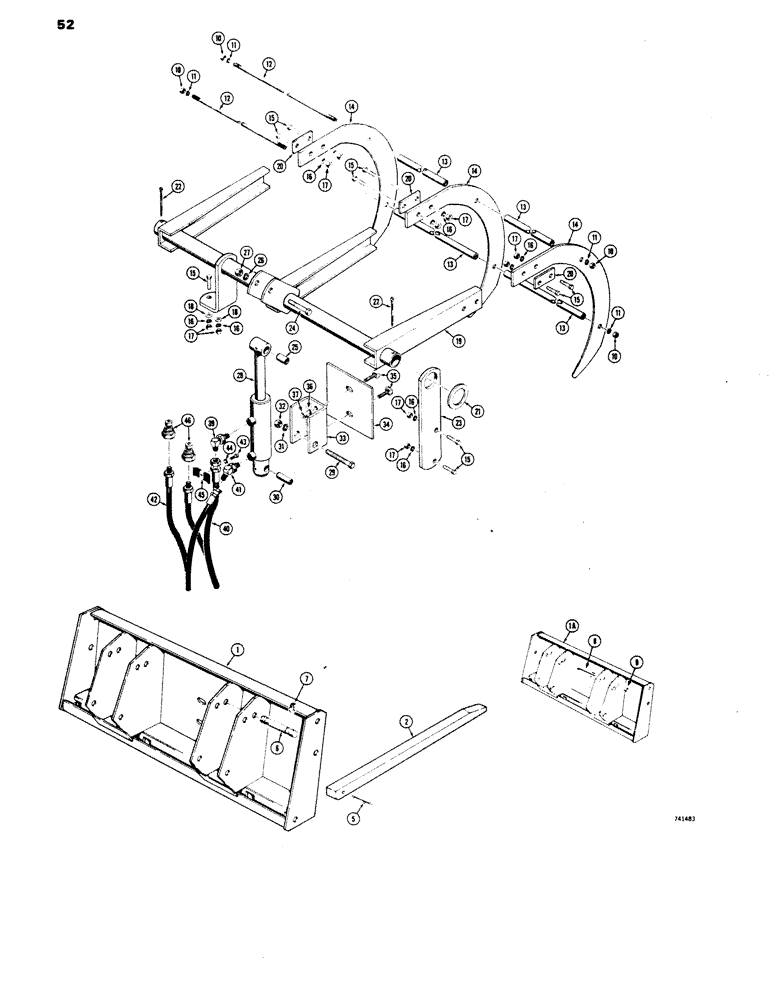

Запчасти Case 1816 (52) - MANURE FORK (89) - TOOLS

1

D60029

FRAME manure fork, without bosses on ears, service with D61741 frame, 4, 13-1096 bolts and, 4, 131-656 lock nuts

1шт.

1a

D61741

FRAME

manure fork, with bosses on ears

1шт.

2

D57626

TOOTH

TINE fork

7шт.

5

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

7шт.

6

D60187

PIN

fork, models without tool tach

2шт.

7

D95096

SNAP RING,M15.88 x 1.27mm Thk

retaining

4шт.

8

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

HHCS, 5/8" - 11 NC x 5-1/2", if used

4шт.

8

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6", if used

4шт.

9

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

Hydraulic grapple attachment, used with manure fork 1/2"-13, G5

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 1/2"

4шт.

12

D61151

AXLE PIN

ROD tie, hydraulic grapple attachment, used with manure fork

2шт.

13

D61152

BUSHING

SPACER hook, hydraulic grapple attachment, used with manure fork

4шт.

14

D61154

HOOK

grapple, hydraulic attachment, used with manure fork

3шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Hydraulic grapple attachment, used with manure fork Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 1/2"

12шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

Hydraulic grapple attachment, used with manure fork 1/2"-13, G5

12шт.

18

195-533

WASHER,1/2", SAE

plain, plated, 1/2", hydraulic grapple attachment, used with manure fork

2шт.

19

D63054

TONGS

GRAPPLE ARM hydraulic attachment, used with manure fork

1шт.

20

D61624

SPACER

arm, hydraulic grapple attachment, used with manure fork

3шт.

21

D25509

WASHER

special, hydraulic grapple attachment, used with manure fork

2шт.

22

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Hydraulic grapple attachment, used with manure fork 1/4" x 2 1/2"

2шт.

23

D64020

BRACKET

SUPPORT grapple arm, hydraulic attachment, used with manure fork

2шт.

24

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS plated, 5/8" - 11 NC x 2-1/2, hydraulic grapple attachment, used with manure fork

1шт.

25

D58119

BUSHING

cylinder, hydraulic grapple attachment, used with manure fork

1шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 5/8"

1шт.

27

129-107

NUT,5/8"-11, G5

Hydraulic grapple attachment, used with manure fork 5/8"-11, G5

1шт.

28

D58638

CYLINDER

grapple, See Figure 53A, hydraulic attachment, used with manure fork

1шт.

29

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS plated, 5/8" - 11 NC x 4", hydraulic grapple attachment, used with manure fork

1шт.

30

D58692

BUSHING

cylinder, hydraulic grapple attachment, used with manure fork

1шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 5/8"

1шт.

32

129-107

NUT,5/8"-11, G5

Hydraulic grapple attachment, used with manure fork 5/8"-11, G5

1шт.

33

D63056

ANCHOR

cylinder, hydraulic grapple attachment, used with manure fork

1шт.

34

D64019

PLATE

double, hydraulic grapple attachment, used with manure fork

1шт.

35

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT, CARRIAGE, , Hydraulic grapple attachment, used with manure fork Short NK, 1/2"-13 x 1 1/2", G5

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 1/2"

2шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

Hydraulic grapple attachment, used with manure fork 1/2"-13, G5

2шт.

39

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

male, 90 degree, hydraulic grapple attachment, used with manure fork

1шт.

40

D60843

HOSE

at cylinder, rod end, 36" long, hydraulic grapple attachment, used with manure fork

1шт.

41

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

male, 45 degree, hydraulic grapple attachment, used with manure fork

1шт.

42

D60842

HOSE

at cylinder, closed end, 32" long, hydraulic grapple attachment, used with manure fork

1шт.

43

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Hydraulic grapple attachment, used with manure fork

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Hydraulic grapple attachment, used with manure fork 5/16"

1шт.

45

R17319

CLAMP

hose, hydraulic grapple attachment, used with manure fork

1шт.

46

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, hydraulic grapple attachment, used with manure fork

2шт.
