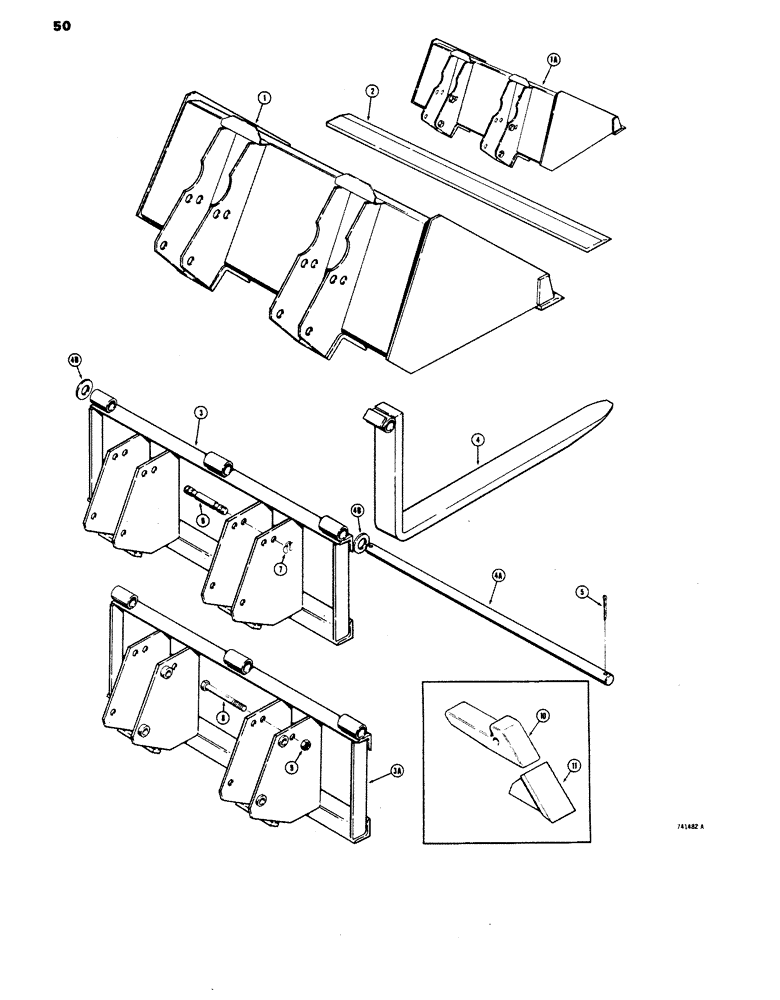

Запчасти Case 1816 (50) - LOADER BUCKETS, 35" WIDE BUCKET (82) - FRONT LOADER & BUCKET

1

D17198

BUCKET, 35" wide, without bosses on ears, machinery item, service with D17363 bucket, 4, 13-1096 bolts and, 4, 131-656 lock nuts

1шт.

1a

D17363

BUCKET, 35" wide, with bosses on ears, machinery Item, Includes: Ref. 2

1шт.

2

D57144

EDGE

cutting, 35" wide

1шт.

1

D17199

BUCKET, 44" wide, with bosses on ears, machinery item, service with D17364 bucket, 4, 13-1096 bolts and, 4, 131-656 lock nuts

1шт.

1a

D17364

BUCKET

44" wide, with bosses on ears, machinery item, Includes: Ref. 2

1шт.

2

D57149

EDGE

cutting, 44" wide bucket

1шт.

1

D17200

BUCKET, 47" wide, without bosses on ears, machinery item, service with D17365 bucket, 4, 13-1096 bolts and, 4, 131-656 lock nuts, light material

1шт.

1a

D17365

BUCKET, 47" wide, with bosses on ears, machinery item, light material, Includes: Ref. 2

1шт.

2

D57586

EDGE

cutting, 47" wide bucket, light material

1шт.

3

D58663

FRAME pallet fork, without bosses on ears, service with D61743 frame, 4, 13-1096 bolts and, 4, 131-1105 lock nuts

1шт.

3a

D61743

FRAME

pallet fork, with bosses on ears

1шт.

4

D58339

FORK TEDDER

FORK pallet

2шт.

4a

D57020

ROD

fork retaining, pallet

1шт.

4b

195-53

WASHER,1" x 2" x .134"

plain, 1", pallet fork

2шт.

5

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , pallet fork, Includes: Ref. 6 5/32" x 1 1/2"

2шт.

6

D60187

PIN

fork or bucket, safety pins - models without tool tach

2шт.

7

D95096

SNAP RING,M15.88 x 1.27mm Thk

retaining, safety pins - models without tool tach

4шт.

8

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

HHCS, 5/8" - 11 NC x 5-1/2", if used, mounting hardware

4шт.

8

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6", if used, mounting hardware

4шт.

9

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, , Mounting hardware 5/8"-11, GB

4шт.

T40472

TOOTH

ASSEMBLY, bucket teeth, Includes: Ref. 10 and 11

4шт.

10

NSS

NOT SOLD SEPARAT

SHANK bucket teeth

1шт.

11

T41166

TOOTH

POINT bucket teeth

1шт.
