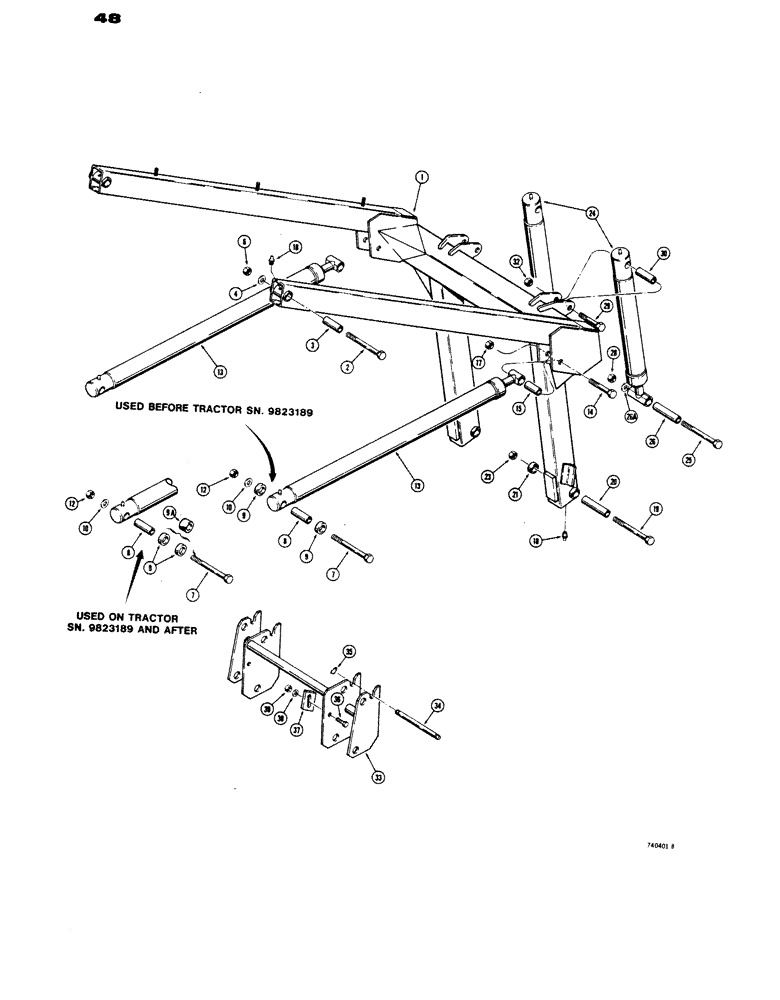

Запчасти Case 1816 (48) - LOADER LIFT ARM AND TOOL TACH (82) - FRONT LOADER & BUCKET

1

D56997

ARM

FRAME loader lift

1шт.

2

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6"

2шт.

3

D60629

BUSHING

loading arm

2шт.

4

195-41

WASHER,5/8"

plain, 5/8"

2шт.

6

25-1010

NUT,5/8"-11, G5

2шт.

7

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6"

2шт.

8

D60629

BUSHING

cylinder

2шт.

9

D75176

SPACER

cylinder, Replaces D57434

4шт.

9a

D75176

SPACER

cylinder

2шт.

10

195-41

WASHER,5/8"

plain, 5/8"

2шт.

12

131-656

LOCK NUT,5/8"-11, GB

NUT hex, lock, 5/8" - 11 NC

2шт.

13

D56774

CYLINDER

lift, before serial number 9823189, See Figure 74 service with D58575 cylinder and D60509 tube, See Figure 74 for identification

2шт.

13

D58575

CYLINDER

lift, before serial number 9823189, See Figure 77A, See Figure 77A for identification, service with D17550 Kit

2шт.

Part of lift cylinder kit, P/N D17550

1шт.

13

D63235

CYLINDER BLOCK

CYLINDER lift, serial number 9823189 and after, See Figure 77A

2шт.

Part of lift cylinder kit, P/N D17550

1шт.

14

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

15

D56655

BUSHING

cylinder

2шт.

17

131-656

LOCK NUT,5/8"-11, GB

NUT hex lock, 5/8" - 11 NC

2шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" - 28 NF

4шт.

19

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6"

2шт.

20

D60623

BUSHING

bucket

2шт.

21

D75176

SPACER

bucket

2шт.

23

131-656

LOCK NUT,5/8"-11, GB

NUT hex, lock, 5/8" - 11 NC

2шт.

24

REF

INSTRUCTION

CYLINDER bucket, See Figures 76 and 77A for cylinders

2шт.

25

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS, 5/8" - 11 NC x 6"

2шт.

26

D60623

BUSHING

bucket

2шт.

26a

195-41

WASHER,5/8"

plain, 5/8"

2шт.

28

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

NUT hex, lock, 5/8" - 11 NC

2шт.

29

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS, 5/8" - 11 NC x 3-1/2"

2шт.

30

D58821

BUSHING

cylinder

2шт.

32

131-656

LOCK NUT,5/8"-11, GB

NUT hex, lock, 5/8" - 11 NC

2шт.

33

D60032

TOOL ASSY.

TOOL-TACH equipment

1шт.

34

D60019

AXLE PIN

PIN tool tack

2шт.

35

G46176

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

37

T40044

WEDGE

bucket aligning

2шт.

38

195-25

WASHER,3/8"

plain, 3/8"

2шт.

39

131-652

LOCK NUT,3/8"-16, GB

NUT hex lock, 3/8" - 16 NC

2шт.

D17550

CYLINDER

KIT, lift cylinder, consists of D63235 cylinder and instructions,when servicing D56774 cylinder also order D60509 tube

2шт.
