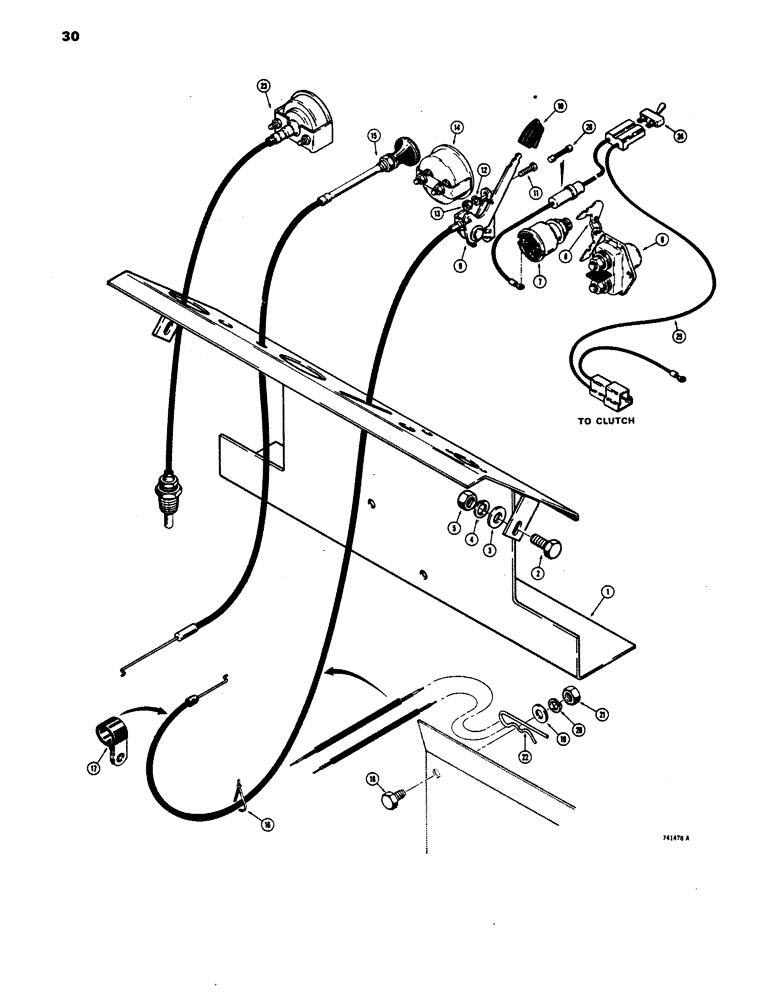

Запчасти Case 1816 (30) - INSTRUMENT PANEL AND ENGINE CONTROLS (55) - ELECTRICAL SYSTEMS

1

D61234

PANEL

instrument, before tractor serial number 9826660

1шт.

1

D64358

PANEL instrument, used tractor serial number 9826660 thru 9830519

1шт.

1

D71592

PANEL instrument, used tractor serial number 9830519 and after

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

195-25

WASHER,3/8"

flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

6

D56649

SWITCH

BUTTON push, starter, service with D61884 kit, See Figure 28

1шт.

7

D57458

SWITCH

ignition, Includes: Ref. 8

1шт.

8

D36822

KEY

ignition, set of two

1шт.

9

D57633

SPARE PART

THROTTLE ASSEMBLY, engine

1шт.

10

C12224

HANDLE

KNOB throttle

1шт.

11

163-15

SCREW,Hex, #10 - 24 x 5/8"

HHCS slotted, plated, 10 - 24 NC x 5/8"

2шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

129-7

NUT,Hex, #10 - 24

hex, plated, 10 - 24 NC

2шт.

14

D56643

ELECTRICAL GAUGE

GAUGE ammeter

1шт.

15

D57409

CABLE

ASSEMBLY, choke

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

TIE wire

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

throttle cable

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

19

195-21

WASHER,5/16"

- plain, 5/16"

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

22

136-164

COTTER PIN,Int, 5/16" x .120"

PIN hair

1шт.

23

D58127

ELECTRICAL GAUGE

GAUGE transmission temperature

1шт.

24

D67251

SWITCH

toggle, electric clutch

1шт.

25

D70917

HARNESS

clutch, Incl. Ref. 26

1шт.

26

223-20

FUSE,20 Amp, Type SFE

20 amp, SFE

1шт.
