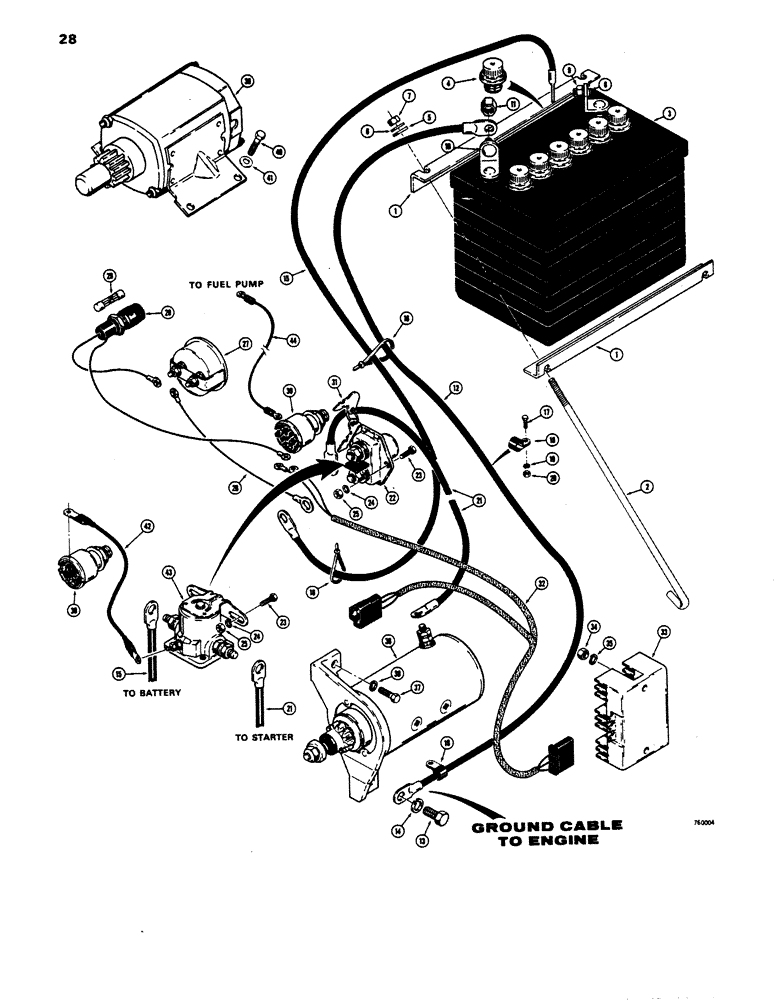

Запчасти Case 1816 (28) - ELECTRICAL WIRING (55) - ELECTRICAL SYSTEMS

1

D60582

ANGLE

PLATE battery holddown

2шт.

2

D60580

BOLT

special, "j"

2шт.

3

C18197

NO LONGER SERVICED

BATTERY, 12 volt, service replacement

1шт.

C18197 has standard caps, which are to be replaced with non-spill caps from old battery, if used, or order A60553 caps.

1шт.

4

A60553

CAP

battery, non spill

6шт.

5

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

129-578

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

2шт.

8

111-135

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT round head, square shoulder, plated, 1/4" - 20 NC x 3/4"

1шт.

9

129-577

NUT,1/4"-20, G5

hex, plated, 1/4" - 20 NC

1шт.

10

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT round head square shoulder, plated, 5/16" - 18 NC x 3/4"

1шт.

11

129-578

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

1шт.

12

D57109

CABLE

ground, battery, negative, black

1шт.

13

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

D57404

CABLE

battery to starter button, positive

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

TIE wire

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

cable

2шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

21

D65589

CABLE

starter to starter button, red

1шт.

22

D56649

SWITCH

BUTTON push, starter, service with D61884 kit

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

D57405

WIRE starter, Serial Range: button-ammeter

1шт.

27

D56643

ELECTRICAL GAUGE

GAUGE ammeter

1шт.

28

D56988

HOLDER

fuse, used with D57561 harness only, Incl. Ref. 29

1шт.

29

223-31

FUSE,10 Amp, Type 3AG

AGC 30 amp

1шт.

30

D57458

SWITCH

ignition, Incl. Ref. 31

1шт.

31

D36822

KEY

ignition, set of 2

1шт.

32

D57561

WIRE HARNESS

HARNESS electrical, 10 amp, before tractor serial number 9826660

1шт.

32

D62150

HARNESS

electrical, 20 amp, tractor serial number 9826660 and after, not shown, Incl. Ref. 223-31

1шт.

223-31

FUSE,10 Amp, Type 3AG

AGC 30 amp

1шт.

33

C14547

DASHPOT

RECTIFIER voltage regulator, 10 amp, before tractor serial number 9826660

1шт.

33

D66433

RECTIFIER

voltage regulator, 20 amp, tractor serial number 9826660 and after

1шт.

34

25-104

NUT,1/4"-20, G5

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

D59591

MOTOR

STARTER engine, Tecumeseh 32817, round housing, See Figure 20

1шт.

37

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

D59591 starter Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

38

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER medium section lock, 5/16"

2шт.

39

D61880

STARTING MOTOR

STARTER engine, Tecumseh #33835, square housing, See Figure 21A

1шт.

D61884

SWITCH

KIT, starter button, Incl. installation instructions

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS, 5/16" - 18 NC x 7/8", D61880 starter

2шт.

41

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

3шт.

42

G13083

CABLE

solenoid to starter switch

1шт.

43

D61168

SOLENOID

switch

1шт.

44

D72348

ELECTRICAL WIRE

WIRE to fuel pump

1шт.

D76912

CABLE

WIRE ground, Serial Range: engine-frame

1шт.
