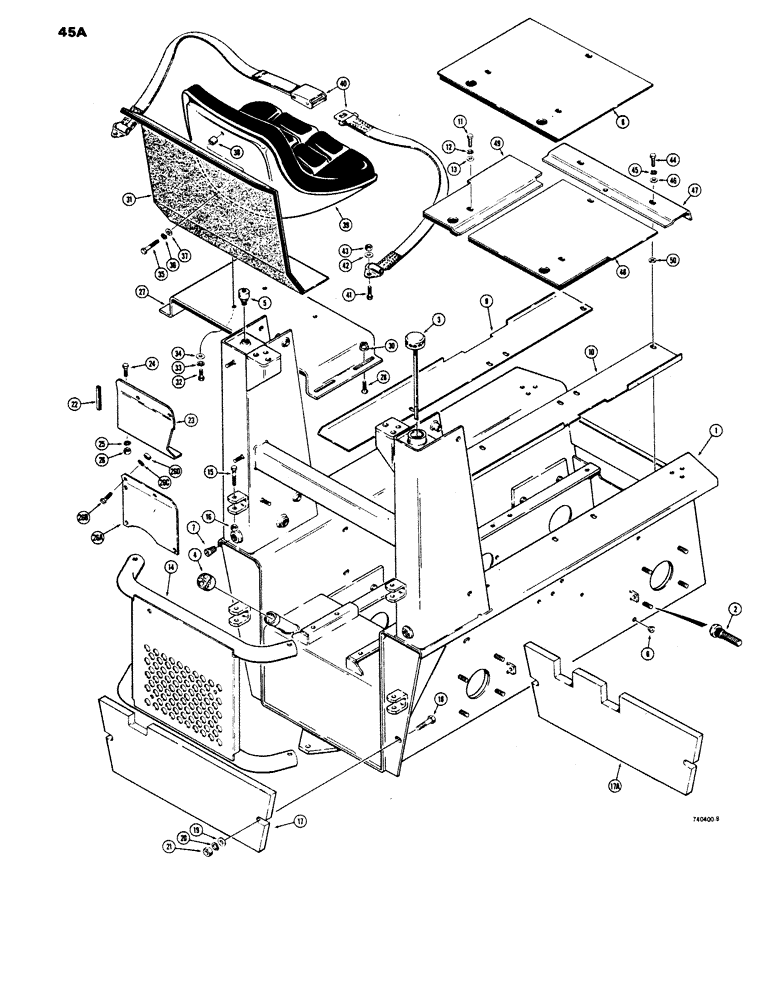

Запчасти Case 1816 (45A) - MAIN FRAME AND SEAT, USED TRACTOR SERIAL NO. 9823077 AND AFTER (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

FRAME main, Includes: Ref. 2

1шт.

2

E16592

WHEEL BOLT

BOLT special

16шт.

3

D58160

DIPSTICK

CAP filler and breather, hydraulic oil

1шт.

4

D61089

CAP

fuel

1шт.

5

31543

BREATHER

hydraulic tank

1шт.

6

205-19

PLUG button

2шт.

7

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG square socket, if used

2шт.

8

D64494

PLATE floor, rear, without brakes

1шт.

9

D56957

HOSE

COVETR chain, L.H.

1шт.

Ref # 9 & 10 discontinued part. Sub to numbers ARE NOT the same length. Length fo numbers shown here is 42 inches. Sub to numbers are 26 1/2 inches long.

1шт.

10

D56956

PLATE

COVER chain, R.H.

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

195-104

WASHER,3/8"

plain, zinc plated, 3/8"

8шт.

14

D59000

GUARD

rear

1шт.

15

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

16

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

4шт.

17

D61366

COUNTERWEIGHT rear, used before tractor serial number 9826660

1-2шт.

17a

D61695

WEIGHT

COUNTERWEIGHT rear, used tractor serial number 9826660, and after

1-2шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS, 1/2" - 13 NC x 2-1/2", 1 counterweight

2шт.

18

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2 counterweights Hex, 1/2"-13 x 3 1/2", G5

2шт.

19

195-33

WASHER,1/2"

flat, 1/2"

8шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D95461

LINING

TRIM, 3" long

1шт.

23

D61288

SHIELD heat, before tractor serial number 9826660

1шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS, 5/16" - 18 NC x 1-1/4"

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

26a

D73080

SHIELD

heat used tractor serial number 9826660 and after

1шт.

26b

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26c

92-6

LOCK WASHER,3/8"

2шт.

26d

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

27

D58466

PLATE

seat

1шт.

28

111-362

CARRIAGE BOLT

round head, square neck, 3/8" - 16 NC x 1"

4шт.

30

131-916

FLANGE NUT,Flg, 3/8"-16, G5

flanged, 3/8" - 16 NC

4шт.

31

D60485

SHIELD

heat

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

195-525

WASHER,3/8", SAE

flat, zinc plated, 3/8"

2шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

195-525

WASHER,3/8", SAE

flat, zinc plated, 3/8"

1шт.

38

D44228

BUSHING

SPACER seat from heat shield

1шт.

39

D58556

SEAT

operators

1шт.

40

D58281

SEAT,1.80" W

SAFETY BELT 1.80" W

1шт.

41

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

42

195-529

WASHER,7/16", SAE

flat, zinc plated, 7/16"

2шт.

43

131-653

NUT,7/16"-14, GB

hex, 3/8" - 16 NC

2шт.

44

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with D58492 spacer Hex, 3/8"-16 x 1 1/2", G5

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

195-104

WASHER,3/8"

plain, zinc plated, 3/8"

2шт.

47

D76057

PLATE ASSY.

PLATE floor, front

1шт.

48

D59108

PLATE

floor, R.H. rear, with brakes

1шт.

49

D59111

PLATE

floor, L.H. rear, with brakes

1шт.

50

D58492

SPACER floor, if used

2шт.
