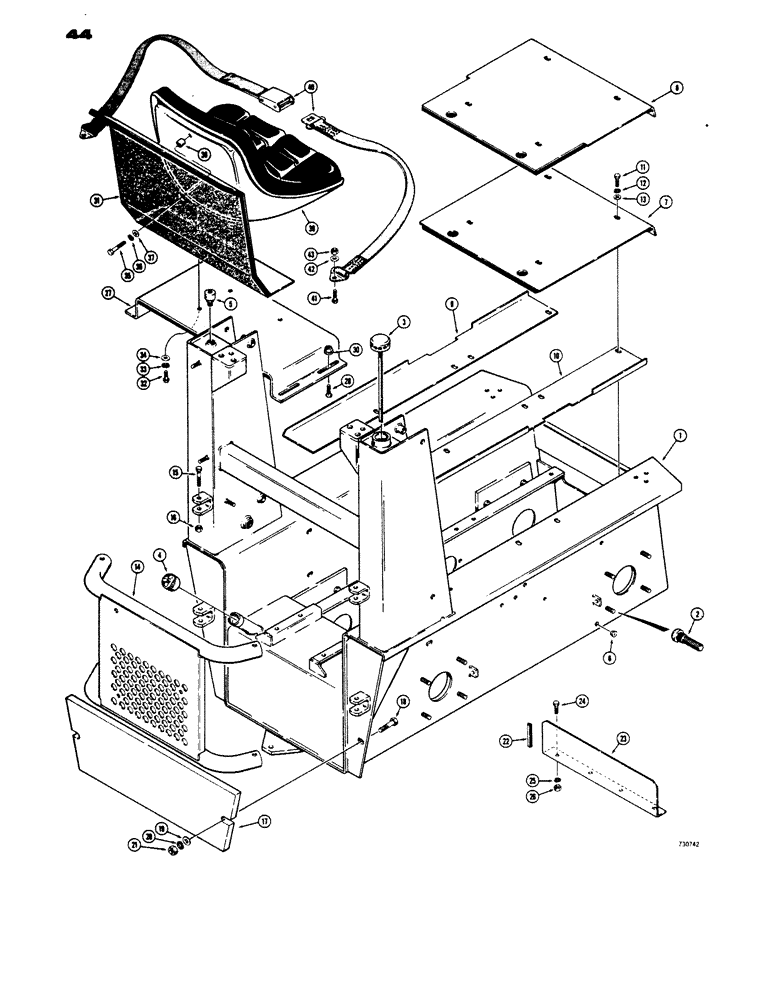

Запчасти Case 1816 (44) - MAIN FRAME AND SEAT, USED BEFORE TRACTOR SERIAL NO. 9823077 (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

FRAME main, Includes: Ref. 2

1шт.

2

E16592

WHEEL BOLT

BOLT special

16шт.

3

D58160

DIPSTICK

CAP filler and breather, hydraulic oil

1шт.

4

D61089

CAP

fuel

1шт.

5

31543

BREATHER

hydraulic tank

1шт.

6

205-19

PLUG button

2шт.

7

D58419

PLATE

floor, without brakes

1шт.

8

D58420

PLATE floor, with brakes

1шт.

9

D56957

HOSE

COVER chain, L.H.

1шт.

10

D56956

PLATE

COVER chain, R.H.

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

195-104

WASHER,3/8"

plain, zinc plated, 3/8"

8шт.

14

D59000

GUARD

rear

1шт.

15

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

16

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

4шт.

17

D57414

COUNTERWEIGHT rear

1-2шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS, 1/2" - 13 NC x 2-1/2", 1 counterweight

2шт.

18

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2 counterweights Hex, 1/2"-13 x 3 1/2", G5

2шт.

19

195-33

WASHER,1/2"

flat, 1/2"

8шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D95461

LINING

TRIM, 3" long

1шт.

23

D60697

SHIELD

heat, before serial number 9821352

1шт.

23

D61288

SHIELD heat, serial number 9821352 and after

1шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS, 5/16" - 1/8 NC x 1-1/4"

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

4шт.

27

D58466

PLATE

seat

1шт.

28

111-362

CARRIAGE BOLT

round head, square neck, 3/8" - 16 NC x 1"

4шт.

29

RESERVED

1шт.

30

131-916

FLANGE NUT,Flg, 3/8"-16, G5

flanged, 3/8" - 16 NC

4шт.

31

D60485

SHIELD

heat

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

195-525

WASHER,3/8", SAE

flat, zinc plated, 3/8"

2шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

195-525

WASHER,3/8", SAE

flat, zinc plated, 3/8"

1шт.

38

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

39

D58556

SEAT

operators

1шт.

40

D58281

SEAT,1.80" W

SAFETY BELT 1.80" W

1шт.

41

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

42

195-529

WASHER,7/16", SAE

flat, zinc plated, 7/16"

2шт.

43

131-653

NUT,7/16"-14, GB

hex, lock, 7/16" - 14 NC

2шт.
